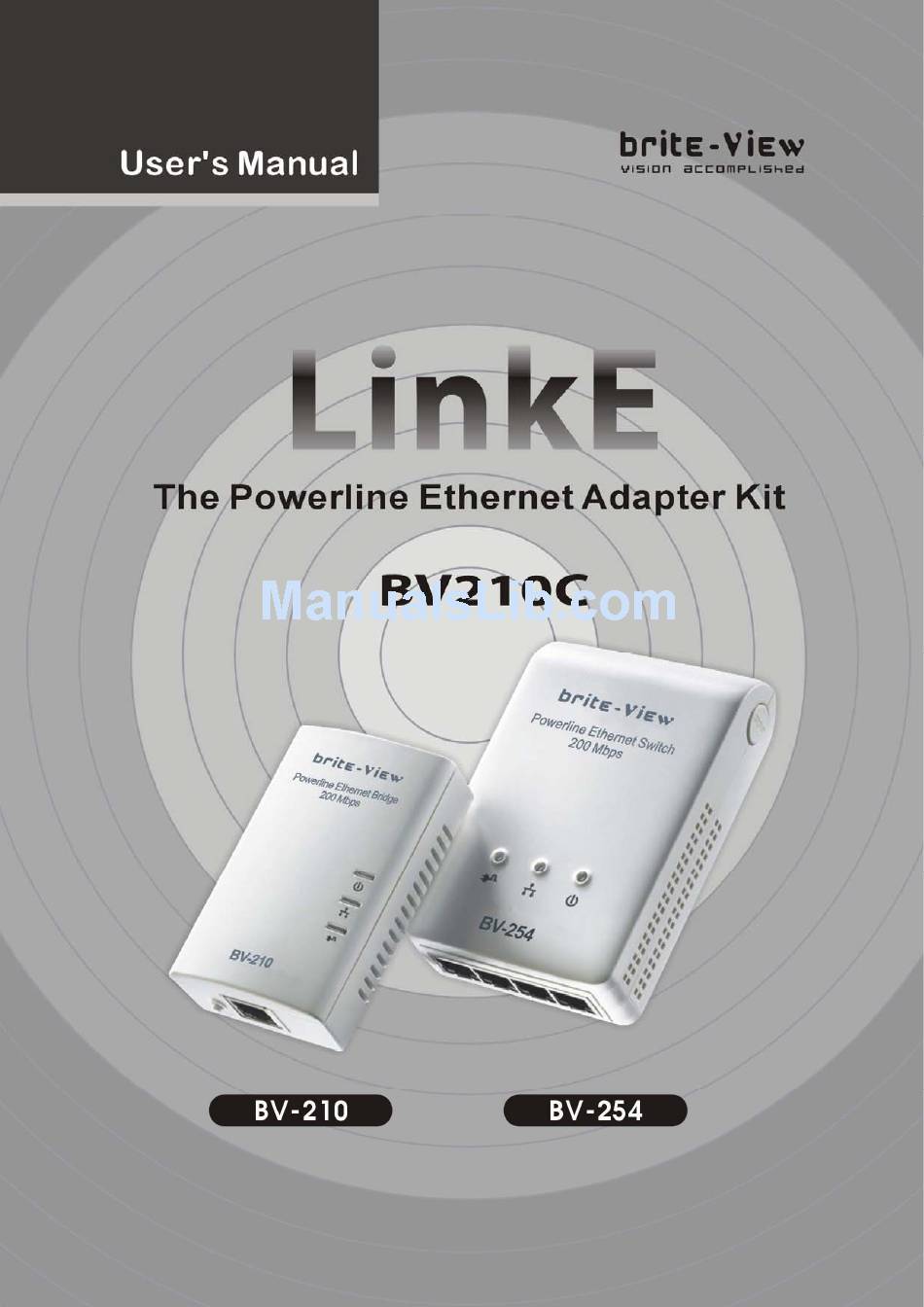

Brite View BV-210 User Manual

Hide thumbs Also See for BV-210:
Table of Contents

Advertisement

Quick Links

0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BV-210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Brite View BV-210

Summary of Contents for Brite View BV-210

  • Page 2: Table Of Contents

    Table of Content 1. I ..................... 2 MPORTANT NFORMATION 1.1 Important Safety Notes..................2 1.2 Federal Communications Commission Interference Statement......3 2. I ........................5 NTRODUCTION 2.1 Package Content....................5 2.2 Product Overview ....................5 2.2.1 Buttons and LEDs .................... 5 3.

  • Page 3: Important Information

    It is recommended that the adapter is plugged directly into an electrical outlet, rather than into an uninterruptable power supply or extension cord with surge protection. brite-View Powerline adapters have their own power filter for surge protection. Only a qualified technician should service this product. Opening or removing covers may expose you to dangerous voltage or other hazards.

  • Page 4: Federal Communications Commission Interference Statement

    1.2 Federal Communications Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 5 frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized. This device has also been evaluated and shown compliant with the IC RF Exposure limits under mobile exposure conditions.

  • Page 6: Introduction

    2. I NTRODUCTION 2.1 Package Content Two PLC Devices Two Ethernet Cables 2.2 Product Overview The Powerline Ethernet Adapters take advantage of your home’s existing electrical wiring to build high speed network connection for surfing website, video streaming, online gaming or any bandwidth applications.
  • Page 7 2.2.1 Button/LED Descriptions Button/LED Description On: Powered Blinking: (1) Rebooting or (2) The device is sitting at a network node for interfacing with another network Off: powered off ON: Ethernet connection detected. Blinking: Network transaction. OFF: No Ethernet connection detected. ON: PLC connection detected.

  • Page 8: Hardware Installation

    3. H ARDWARE NSTALLATION   The powerline device takes advantage of your home’s existing electrical wiring to build high speed network connection for Internet access, HD video streaming, online gaming or any other bandwidth applications. 3.1 Application 1 – Provide Network Connection for Your Networked Devices Provide Internet connection for network compatible devices such as PC, Blu-Ray player, and cable box in any room at home.

  • Page 9: Encrypted Plc Network

    4. E PLC N NCRYPTED ETWORK   4.1 Create a Private Encrypted PLC Network Group   The Powerline bridges are compliant HomePlug AV specification. Every ‘HomePlug AV’ compliant PLC device that has the same default network name, “HomePlug AV”, is capable of communicating with other “HomePlug AV”...

  • Page 10: Remove Device From An Existing Network Group

    Step II: Join to Other Network Group 1. Press GROUP button of device A for 2 to 3 seconds (make sure POWER LED starts blinking). 2. Press GROUP button of device B for 2 to 3 seconds (make sure POWER LED starts blinking). The device B which has cleared its group attribute will join to the device A which has not.

  • Page 11: Enhance Plc Performance

    5. E PLC P NHANCE ERFORMANCE While Powerline device delivers data over the existing electrical wiring in the house, the actual performance may be affected by electrical noises or the length of the wiring. To improve PLC performance, please refer to below recommendations while placing the Powerline device. AC Outlets Connection Avoid connecting PLC device to an uninterruptible power supply (UPS) or backup power supply device.
  • Page 12 Connection via Power Strip If user intends to connect the PLC device via power strip, please follow below reference for better performance: Make sure the power strip does not support a noise filter or a surge protector. Electrical Interference Some household appliances may produce noise emission. If noise emission is spread over the electrical wiring it will affect PLC performance in the house.

  • Page 13: Specifications

    6. S PECIFICATIONS Items Description Powerline Ethernet Bridge Powerline Ethernet Switch 200Mbps PHY Rate Effect Data Rate TCP: Up to 90 Mbps TCP: Up to 91 Mbps UDP: Up to 91 Mbps UDP: Up to 92 Mbps Frequency Band 2~28 MHz (With Mask) Access Methods CSMA/CA channel-access schemes Four-level priority based contention access, and multi segment bursting...

This manual is also suitable for:

Bv-254

Table of Contents
