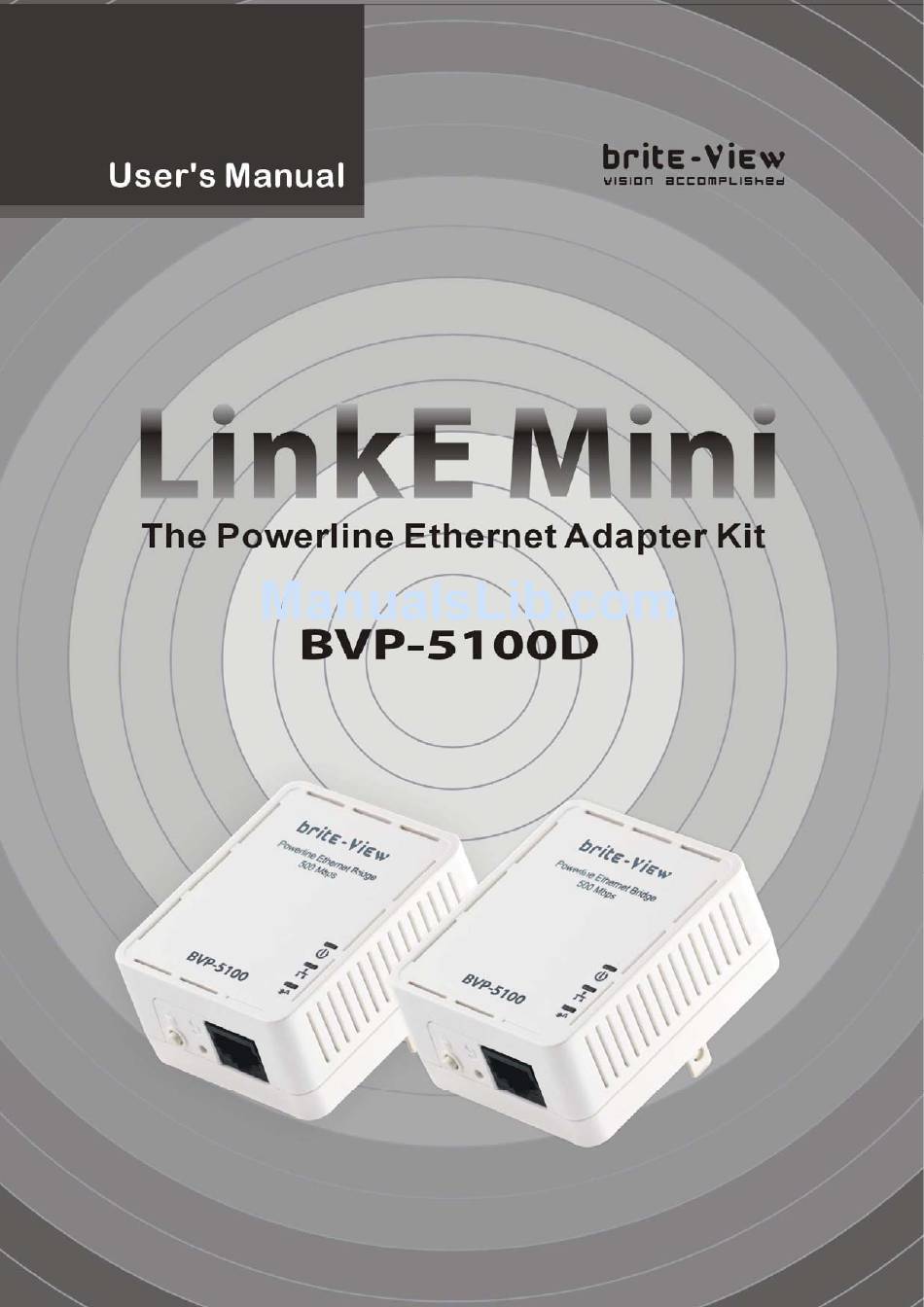

Brite View BVP-5100D LinkE Mini User Manual

The powerline ethernet adapter kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

1

Advertisement

Table of Contents
loading

Related Manuals for Brite View BVP-5100D LinkE Mini

Summary of Contents for Brite View BVP-5100D LinkE Mini

  • Page 2: Table Of Contents

    Tablet of Content 1.Important Information ......................3 1.1 Important Safety Notes ....................3 1.2 Federal Communications Commission Interference Statement ......... 4 2. I ........................6 NTRODUCTION 2.1 Package contents ...................... 6 2.2 Product Overview ...................... 6 2.2.1 Button/LED Descriptions..................7 3.

  • Page 3: Important Information

    1. I MPORTANT NFORMATION 1.1 Important Safety Notes This product is intended for connection to the AC power line. For installation instructions, refer to the Installation section. The following precautions should be taken when using this product. Please read all instructions before installing and operating this product. Please keep all instructions for later reference.

  • Page 4: Federal Communications Commission Interference Statement

    1.2 Federal Communications Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 5 This device has also been evaluated and shown compliant with the IC RF Exposure limits under mobile exposure conditions. (antennas are greater than 20cm from a person's body). Canada, avis d'Industry Canada (IC) Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et RSS-210. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent affecter son fonctionnement.

  • Page 6: Introduction

    2. I NTRODUCTION The Powerline Ethernet Adapters take advantage of your home’s existing electrical wiring to build high speed network connection for surfing website, video streaming, online gaming or any bandwidth applications. Simply plug them to AC outlet and instantly establish powerline network. It means there is no IP configuration or additional wires required.

  • Page 7: Button/Led Descriptions

    2.2.1 Button/LED Descriptions Button/LED Description ON: Power on and ready. Blinking: 1. Slow blinking (2.0sec ON / 3.0 sec OFF): Sleep mode. 2. Fast blinking (0.5 sec ON / 0.5 sec OFF): PLC group pairing. OFF: Power off. ON: Ethernet connection detected. Blinking: Network traffic in transaction.

  • Page 8: Hardware Installation

    3. H ARDWARE NSTALLATION 3.1 Application 1 – Provide Network Connection for Your PC Provide Internet connection for network compatible device such as PC, Blu-Ray player or cable box in any room at home.

  • Page 9: Application 2 - Extend Wireless Access Point Coverage

    3.2 Application 2 – Extend Wireless Access Point Coverage To extend wireless AP coverage in different room or floor, user can place the Wi-Fi router/repeater near the mobile devices such as iPad, Tablet, Smartphone and Notebook. Then connect the Wi-Fi router/repeater to Powerline device that is connected to powerline network for delivering Internet signal.

  • Page 10: Encrypted Plc Network

    4. E PLC N NCRYPTED ETWORK 4.1 Create a Private Encrypted PLC Network Group The Powerline bridges are compliant HomePlug AV specification. Every ‘HomePlug AV’ compliant PLC device that has the same default network name, “HomePlug AV”, is capable of communicating with other “HomePlug AV”...

  • Page 11: Remove Device From An Existing Network Group

    *NOTE: It does not matter which device’s button is pressed first, but please press the second device’s GROUP button within two minutes after pressing first device’s GROUP button. After 10 seconds, device will start communicating with device A. 4.2 Remove Device from an Existing Network Group If you would like to remove powerline device from an existing network group, you can generate a new group name (referring to Step I) to stop communication with an existing network group.

  • Page 12: Enhance Plc Performance

    5. E PLC P NHANCE ERFORMANCE While Powerline device delivers data over the existing electrical wiring in the house, the actual performance may be affected by electrical noises or the length of the wiring. To improve PLC performance, please refer to below recommendations while placing the Powerline device. AC Outlets Connection Avoid connecting PLC device to an uninterruptible power supply (UPS) or backup power supply device.

  • Page 13: Connection Via Power Strip

    Connection via Power Strip If user intends to connect the PLC device via power strip, please follow below reference for better performance: Make sure the power strip does not support a noise filter or a surge protector. Electrical Interference Some household appliances may produce noise emission. If noise emission is spread over the electrical wiring, it will affect PLC performance in the house.

  • Page 14: Specifications

    6. S PECIFICATIONS Items Description Product Type 500Mbps Powerline Ethernet Bridge RJ-45 port 1 port PHY Rate 500Mbps TCP : 95 Mbps, UDP : 95 Mbps Max Data Rate Frequency Band 2 to 28 MHz, 30 to 68 MHz TDMA and priority-based CSMA/CA channel access schemes Access Methods Modulation Supports OFDM 4096/1024/256/64/16/8-QAM, QPSK, BPSK and ROBO...
