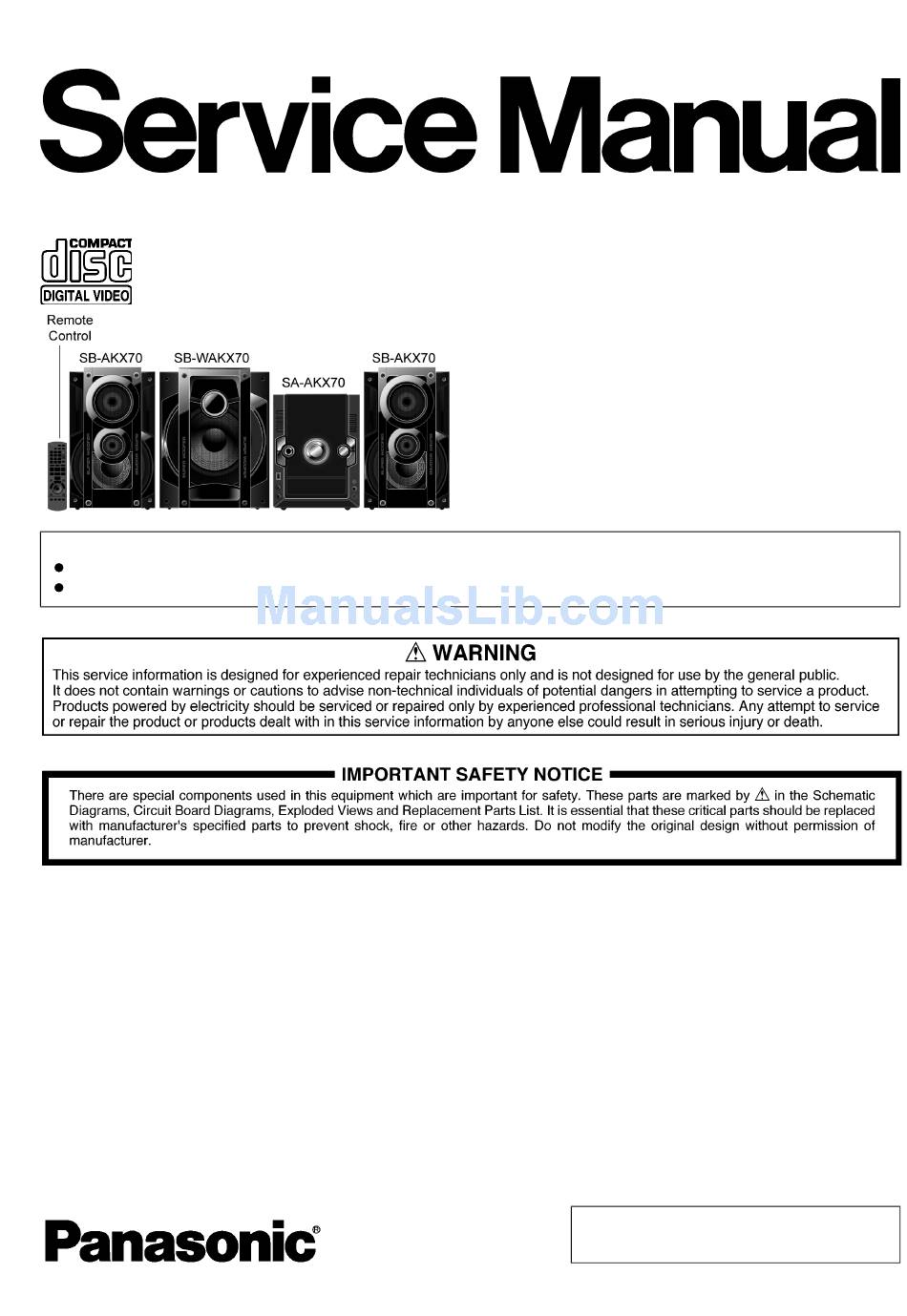

Notes: Please refer to the original service manual for:
CD Mechanism Unit (DLS6C), Order No. MD0803034CE
Speaker system SB-AKX70PN-K, Order No. PSG1004001CE

TABLE OF CONTENTS

1 Safety Precautions----------------------------------------------- 3
1.1. General Guidelines---------------------------------------- 3
1.2. Before Use (For PH only)-------------------------------- 3
1.3. Caution For Fuse Replacement------------------------ 3
1.4. Before Repair and Adjustment ------------------------- 4
1.5. Protection Circuitry ---------------------------------------- 4
1.6. Safety Parts Information --------------------------------- 4
2 Warning -------------------------------------------------------------- 6
2.2. Precaution of Laser Diode------------------------------- 7
Model No.
Product Color: (K)...Black Type
PAGE
3 Service Navigation --------------------------------------------- 11
3.1. Service Information -------------------------------------- 11
4 Specifications ---------------------------------------------------- 12
5.1. Main Unit Key Button Operation---------------------- 13
5.3. Media Information---------------------------------------- 15
6.1. Cold-Start -------------------------------------------------- 16
6.2. Doctor Mode Table--------------------------------------- 17
© Panasonic Corporation 2010. All rights reserved.
Unauthorized copying and distribution is a violation
of law.
CD Stereo System
SA-AKX70PH
SA-AKX70PN
PSG1004040CE
PAGE
