2.4 Infrared R emote C ontrol R eceiver
The ZvSync-NA receiver/decoder is supplied with an external IR receiver. This is
in the form of a cable with an IR receiver at the end.
The pigtail MUST be installed for the ZvSync to receive commands from the
remote control device and is required for proper operation.
By separating the Infrared receiver from the base unit, the main body of the
ZvSync receiver/decoder can be installed in an unobtrusive location with only the
IR sensor showing.

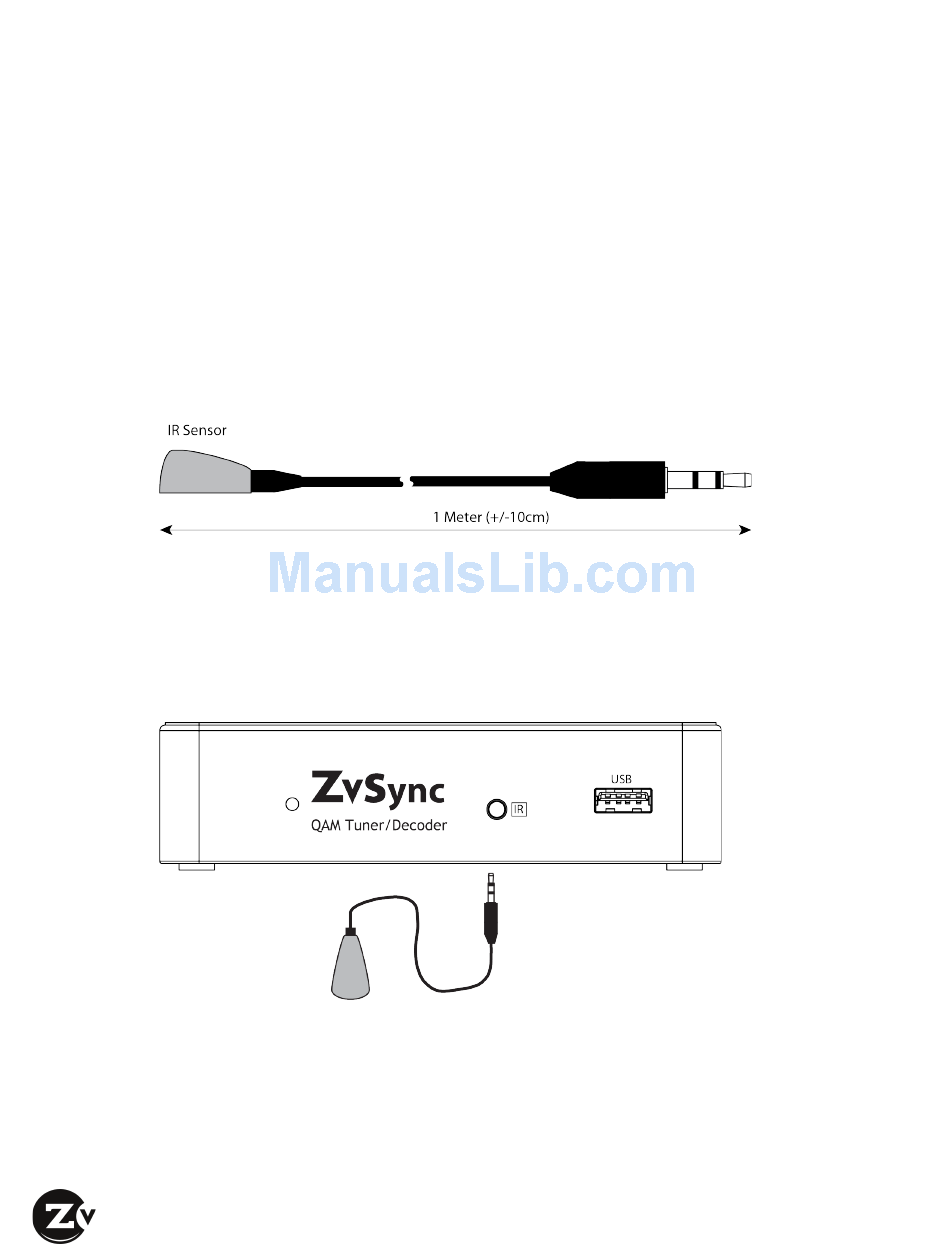

2.4.1 Connecting I nfrared R eceiver t o Z ySync
The 3.5mm plug on the Infrared pigtail must be plugged in to the front "IR" port on
the ZvSync main unit for proper operation.
|
Page 15 ZvSync-NA User's Manual www.zeevee.com
