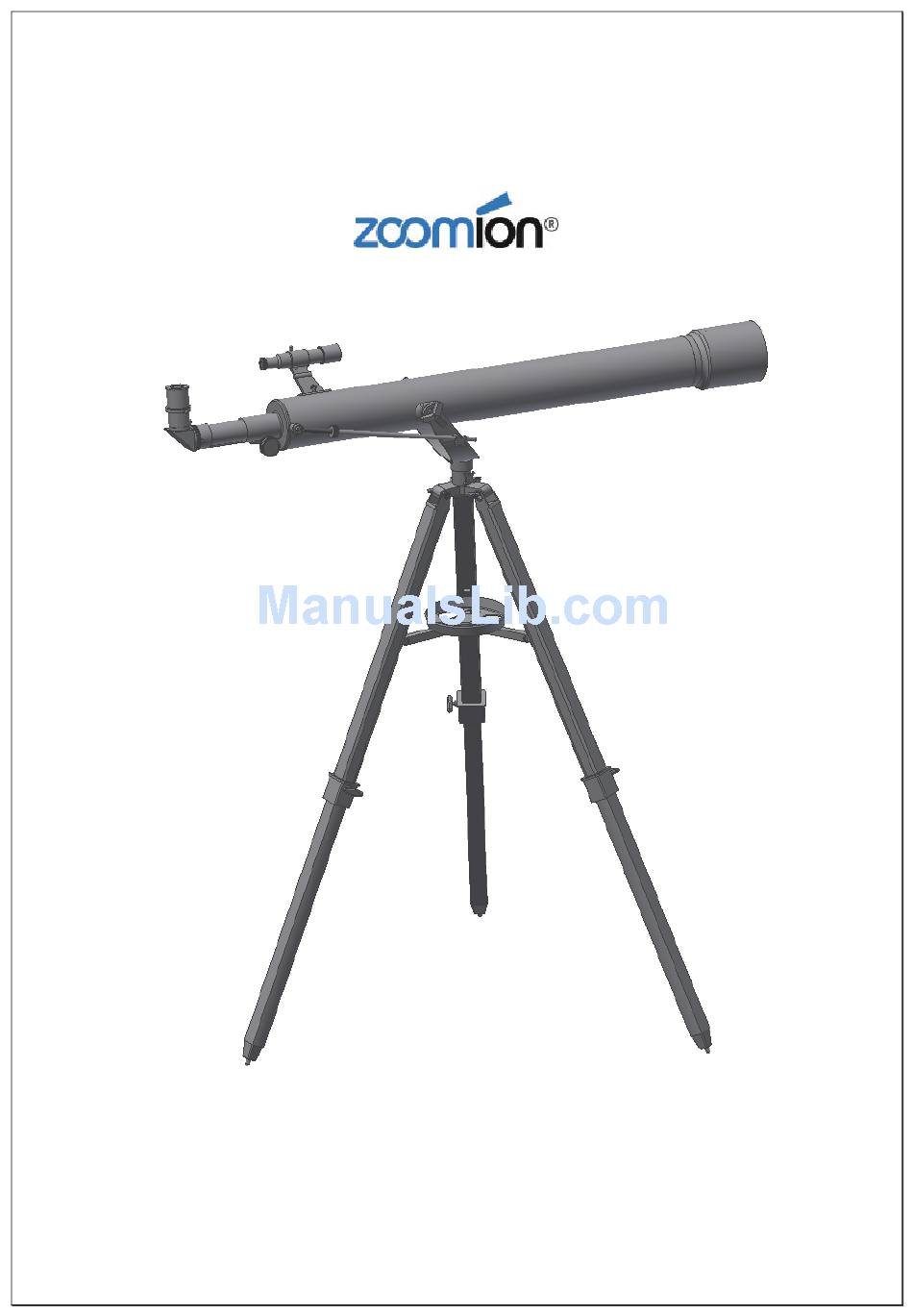

- Page 1 Instruction Manual Viking 60 AZ English version 8.2014 Rev A...
- Page 2 The Zoomion® Viking 60 AZ Congratulations on the purchase of the new Zoomion ®Viking 60 AZ. This small telescope will give you hours of fun, with its all optical glass lens and super compactness, and it is the ideal companion to start in the world of amateur astronomy.
- Page 3 Figure 2. Tripod assembly. Figure 3. Tray placement. Figure 5. Secure the tube with the supplied hand knobs. Figure 4. Place tube on the fork mount. Figure 7.Fine focusing shaft in place. Figure 6. Insert fine focusing shaft.
- Page 4 Sun. Concentrated Sun light cause serious eye injury. Children should use only with adult supervision. 4. Start using your Zoomion 70 AZ telescope. Point the telescope to a distant object during the day. It is important to do this during daylight so that you get familiarized with the telescope operation.
- Page 5 4.2.1. A distant object is centered at the telescope’s field of view. In this example we have a house with a chimney. The chimney is the reference point to place at the center of the field of view. We first look through the telescope with the lowest magnification possible (H20mm should be preferrable).
- Page 6 5. Using the accessories, a bit of math to This means that the H20 eyepiece provides a understand how all it works. 45x power (magnification). This seems low but try it, you will see a a bright image with some Using the accessories is easy and fun.
- Page 7 6. What can been seen with this telescope? Below you will find some examples of what you can expect to see when using this telescope. 6.1. The Moon is one of the most spectular objects to be seen through a telescope. Even a small telescope will reveal high detail of the Moon’s surface.
- Page 8 Q: Is my telescope compatible with other eyepieces ? A: Zoomion telescopes are compatible with all telescope eyepieces from different manufacturers as long as the eyepiece is a 1.25” (or 31.75mm) size eyepiece. If you would like to test an eyepiece from a fellow astronomer go ahead.
