Summary of Contents for zoomion Spaceboy 50 AZ

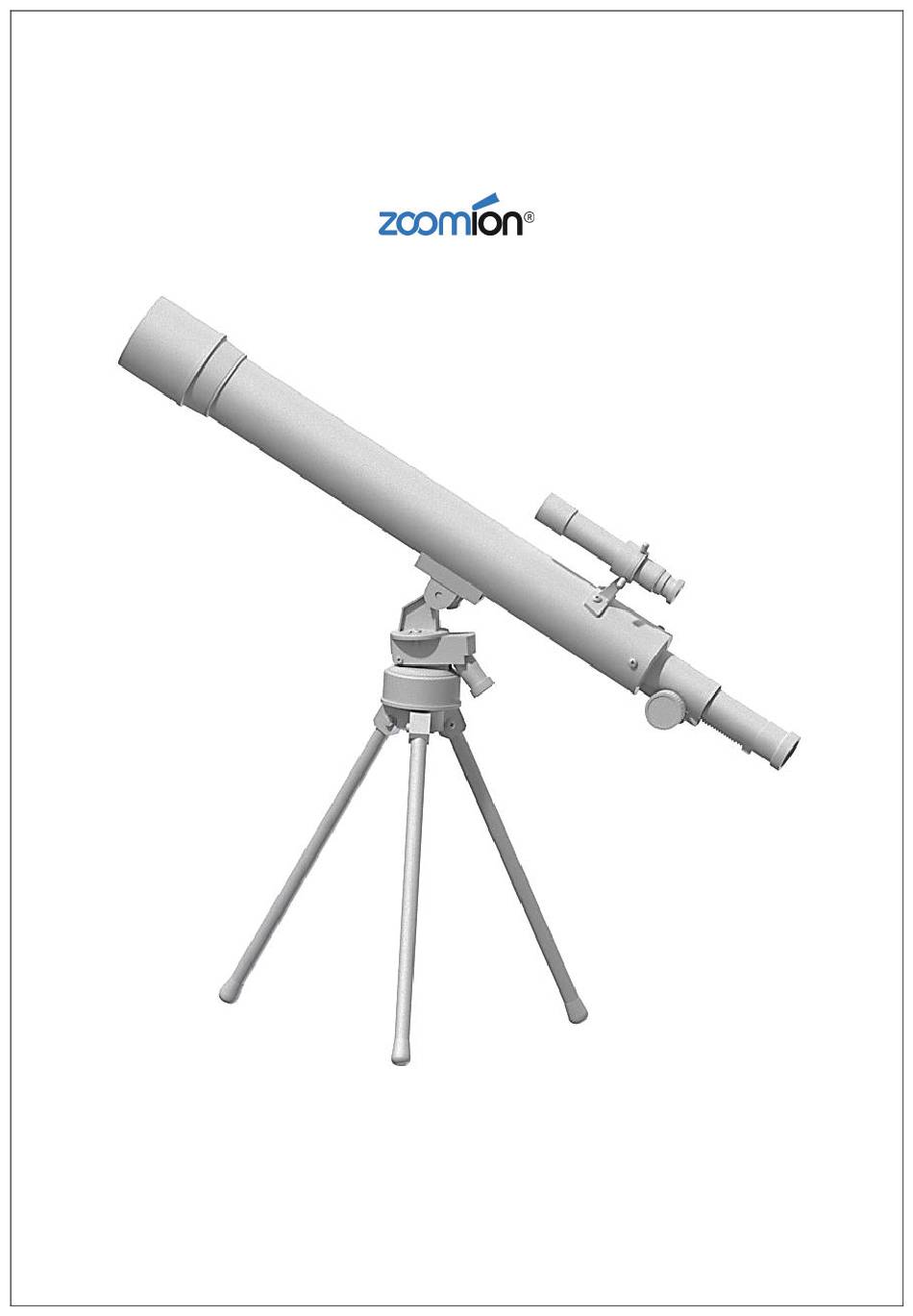

- Page 1 Instruction Manual Zoomion® Spaceboy 50 AZ English version 2.2015 Rev A...
- Page 2 The Zoomion® Spaceboy 50 AZ Congratulations on the purchase of the new Zoomion® Spaceboy 50 AZ. This small telescope will give you hours of fun. With this telescope, you will be able to see the craters on the Moon and much more.
- Page 3 Figure 2. Tripod assembly. Figure 3. Extended tripod.. Figure 4. Insert finderscope. Figure 5. Place the tube and fix it. Figure 7. Tilt the mount by turning the altitude adjustment. Figure 6. Altitude adjustment.
- Page 4 Figure 10. Adjusting the finderscope. Figure 11. Microscope/erecting eyepiece. 3. Start using your Zoomion® Spaceboy 50 AZ telescope. Place both the diagonal mirror and the eyepiece in the focuser tube and use the existing thumbscrews to fix it. Now point the telescope to a distant object during the day.
- Page 5 4. How to use and how to align the finderscope? 4.1. A distant object is centered at the telescope’s field of view with an eyepiece. In this example we have a house with a chimney. The chimney is the reference point to place at the center of the field of view.
- Page 6 500���� 5. Using the accessories: a bit of math to = 25 ���������� 20���� understand how it all works. Using the accessories is easy and fun. To This means that the 20mm eyepiece provides change magnification simply swap eyepieces. a 25x power (magnification). This seems low, To get more magnification simply use the but when you try it, you will see a bright barlow lens.
- Page 7 6. What can be seen with this telescope? Below, you will find some examples of what you can expect to see when using this telescope. 6.1. The Moon is one of the most spectacular objects to be seen through a telescope. Even a small telescope will reveal high detail of the Moon’s surface.
- Page 8 Q: Is my telescope compatible with other eyepieces ? A: Zoomion telescopes are compatible with all telescope eyepieces from different manufacturers as long as the eyepiece is a 0.965” (or 24.5mm) size eyepiece. If you would like to test an eyepiece from a fellow astronomer go ahead.
