VM Audio VAS4210P Shaker series Installation Manual

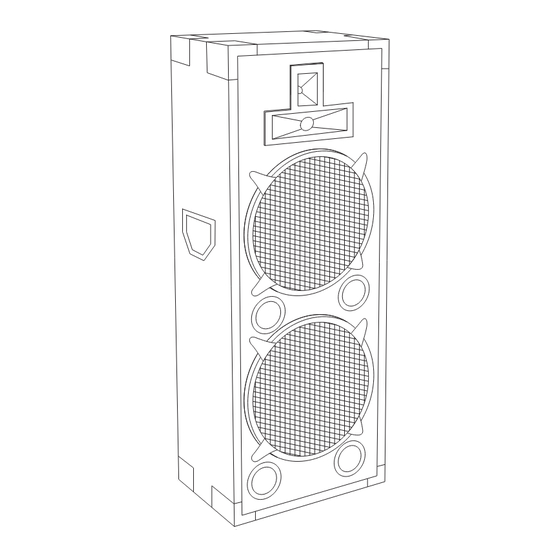

PHYSICAL MEASUREMENTS
B
C
A
(A) Width of Box
(B) Height of Box
(C) Depth of Box
POWER CHART
VAS4210P 550 RMS
Less
Ideal
More
0 100 550
Wattage
TO ACHIEVE OPTIMUM PERFORMANCE, IT IS HIGHLY RECOMMENDED THAT YOU READ
THIS INSTALLATION GUIDE BEFORE INSTALLATION.
Congratulations on your purchase of VM Audio equipment, you have purchased a
quality product designed and engineered in America. Through years of experience, we
have created a wide range of audio products and have incorporated the latest tech-
nology in the design and manufacturing process. VM Audio is proud in bringing you
these products and we are certain that they will give you years of listening pleasure.
INTRODUCTION
The newest addition to the VM Audio line of loudspeakers include the VAS4210P,
packing convenience and application exibility into the ultra compact and high
output series. The VAS4210P is a 10" 4-way full range passive loudspeaker system
designed for contractor and sound reinforcement applications such as corporate
events, small or medium sized live events, performing art venues, houses of worship,
retail businesses, ball rooms, and theme parks. The VM Audio Shaker Series is the
perfect solution for a broader platform in loudspeaker applications while keeping
Continuous, excessive exposure to sound pressure levels in excess of 85dB's can cause a loss
in hearing. While VM Audio Systems are capable of producing sound pressure levels greater
than 85dB's, they are also designed for enjoyment at reasonable levels. Please observe all
local sound ordinances while listening to your VM Audio Sound System.
FEATURED SPECIFICATIONS
12.4 inches
315 mm
10" 4-Way Passive Loudspeaker System
32.68 inches
High Power Loudspeaker
830 mm
Continuous Power: 550 Watts
8.27 inches
Peak Power: 1100 Watts
210 mm
System Impedance: 8 Ohms
2-Way High E ciency Horn Tweeters
Computer Engineered Heavy Duty MDF Enclosure
High Output System Design
Computer Tuned Bass Re ex Enclosure
Heavy Duty Aviation Carpet
Black Edge Corner Guards
Strong Steel Grills
Heavy Duty Designed Handles
Durable Push Terminals
Overload Protection Circuitry
Sensitivity: 90dB
Frequency Response: 33 Hz – 20 kHz
1100 1550
quality and reliability in mind.
< < ATTENTION > >
APPLICATIONS:
Night Clubs
Home Entertainment
Seminars
House of Worship
Stadiums
Resorts
Airports
HAVING TROUBLE INSTALLING?,
GIVE US A CALL OR EMAIL US
WE WILL BE GLAD TO HELP YOU
USA or Canada
(855) AUDIO-99 / (855) 283-4699
help@vmaudio.com
PLEASE DO NOT RETURN PRODUCT TO STORE

Installation Manual

VAS4210P
10" 4-Way Passive
Loudspeaker System
SHAKER SERIES
www.vmaudio.com
