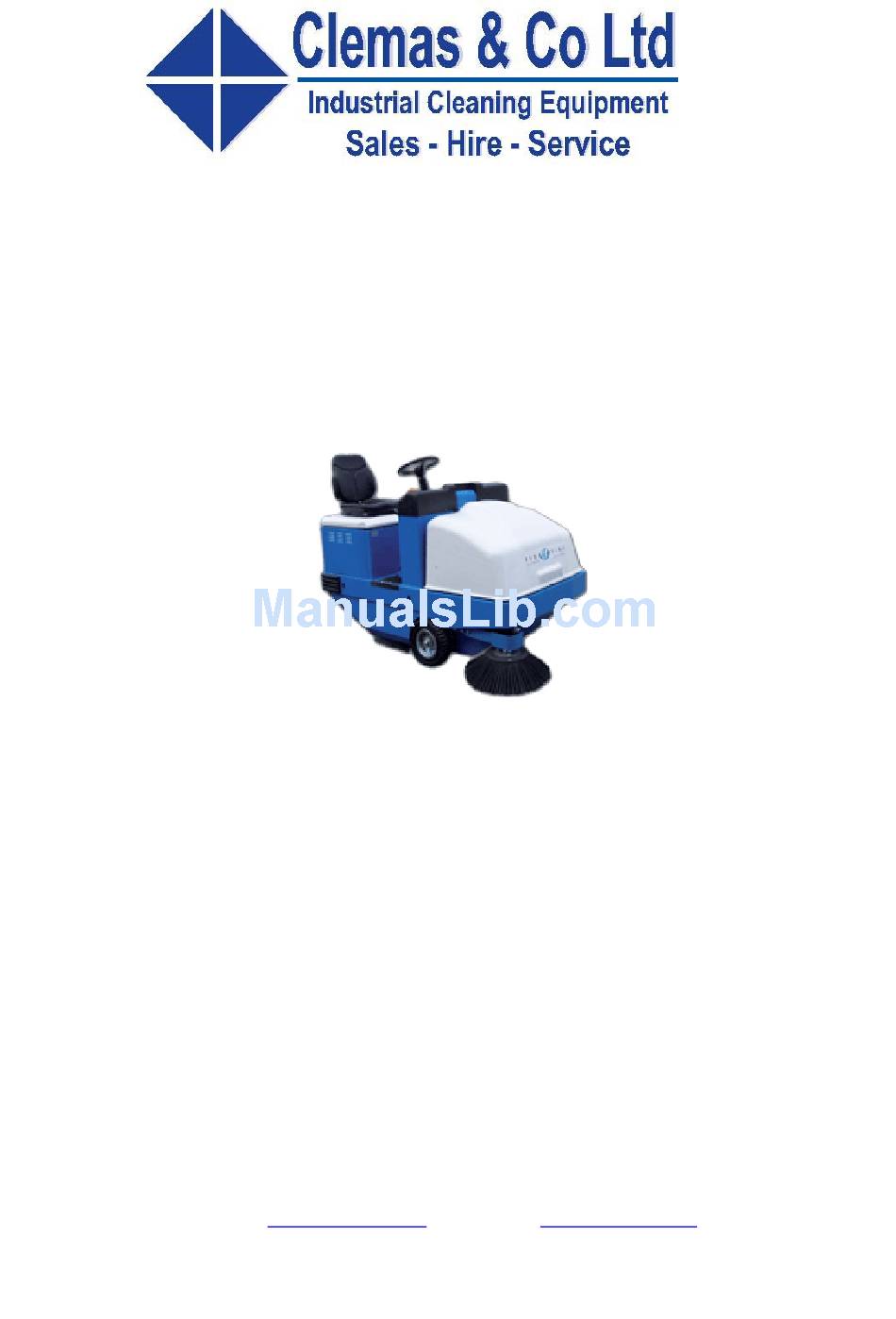

- Page 1 CS220 140B SWEEPER OPERATOR MANUAL Clemas & Co. Unit 5 Ashchurch Business Centre, Alexandra Way, Tewkesbury, Gloucestershire, GL20 8NB. Tel: 01684 850777 Fax: 01684 850707 Email: info@clemas.co.uk Web: www.clemas.co.uk...
- Page 2 Congratulations for your choice! FIORENTINI S.r.l. thanking you for the preference to our product, would like to remind you that FIORENTINI S.r.l production covers manufacture and marketing of industrial cleaning machines and is currently a leading company in this sector. Our tradition and competence guarantee technical quality of your choice;...
-
Page 3: Table Of Contents
INDEX GENERAL INFORMATION ....................................4 SYMBOLS ..........................................4 PREMISES.........................................4 MANUAL CONSULTING....................................5 WARRANTY ........................................5 1.4.1 WARRANTY OBJECT....................................5 1.4.2 WARRANTY LIFE .....................................5 1.4.3 WARRANTY APPLICATION ..................................6 1.4.4 RETURNED GOODS....................................6 1.4.5 EXCEPTION........................................6 CONFORMITY DECLARATION ..................................6 CARATTERISTICHE DELLA MACCHINA E DATI TECNICI ......................8 IDENTIFICAZIONE......................................8 MACHINE FEATURES AND TECHNICAL DATA...........................9 2.2.1 DESCRIPTION......................................9 2.2.2... -
Page 4: General Information
GENERAL INFORMATION S32B GENERAL INFORMATION 1.1 SYMBOLS This symbol is used to get the operator’s attention on procedures or precautions to be followed in order to avoid damages to users or to the support. This symbol is used to get the operator’s attention on general information. 1.2 PREMISE FIORENTINI S. - Page 5 GENERAL INFORMATION S32B DICHIARAZIONE CE DI CONFORMITA’ ING. O. FIORENTINI s.r.l. Loc. Rombola 50030 PIANCALDOLI (FI) ITALIA SISTEMA QUALITA’ AZIENDALE CERTIFICATO ISO9001 DICHIARIAMO SOTTO LA NOSTRA RESPONSABILITA’ CHE LA MACCHINA Marca FIORENTINI Tipo N° serie Anno di costruzione 2005 RISULTA IN CONFORMITA’ con quanto previsto dalle seguenti direttive e normative armonizzate comunitarie: DIRETTIVA COMUNITARIA DIRETTIVA MACCHINE...
-
Page 6: Machine Features And Technical Data
S32B TECHNICAL DATA MACHINES FEATURES AND TECHNICAL DATA 2.1 IDENTIFYING THE MACHINE A silver label is sticked on the protection case of the steering column and clearly shows the data referring to the “CE” marking. MADE Ing. O.Fiorentini S.r.l. 50030 Piancaldoli (FI) ITALY S32B S.N. -
Page 7: Description
S32B TECHNICAL DATA 2.2 DESCRIPTION AND FEATURES OF THE MAIN PARTS 2.2.1 DESCRIPTION The sweeper – S32 - has been designed to clean flat and hard surfaces by means of a sweeping system and suction of the dust into a suitable tank. The traction system is based on oleodynamic engines fed by a pump which is driven by an endothermic petrol or GPL engine. - Page 8 S32B TECHNICAL DATA TECHNICAL DATA FEATURES 1815 x 1010 x 1400 mm LENGTH x WIDTH x HEIGHT 1 CENTRAL + 1 o 2 SIDE N° BRUSHES HYDRAULIC TRACTION Ø330 x 800mm CENTRAL BRUSH DIMENSION Ø500 mm SIDE BRUSHES DIMENSION 1050 mm SWEEPING WIDTH 1300 mm SWEEPING WIDTH WITH LEFT SIDE BRUSH...
- Page 9 S32B TECHNICAL DATA The technical data listed above may be changed by the manufacturer without notice. In any case, FIORENTINI is available for any further information or explanation. MEASUREMENT UNITS CONVERSION Length Power 1 inch = 1” = 25,4 mm 1 kW = 1,36 CV = 1,34 BHP Temperature T (K) = t (°C) + 273 / t (°F) = 1,8 t (°C) + 32...
-
Page 10: Dashboard
S32B TECHNICAL DATA 2.3.1 THE DASHBOARD The dashboard is composed by a series of switches that activate or deactivate all the functions of the machine. The function of every switch is shown by a pictogram. Picture nr. 2 shows the dashboard. The function of every switch and pilot light is explained in the scheme below. -
Page 11: Use Of The Machine
S32B TECHNICAL DATA 2.3.2 USE OF THE MACHINE Starting the machine. Insert the key into the dashboard and turn it once clockwise. Wait until the pilot light shows the battery level. Before using the sweeper please check the hydraulic oil level in the tank of the hydraulic system. - Page 12 S32B TECHNICAL DATA Picture 4 Moving the machine. Forward speed Reverse speed By means of the forward/reverse pedal the operator can move the machine. The operator has to put the foot onto the pedal and press it with the heel to move forward or with the top of the foot to move the machine backward.
- Page 13 S32B TECHNICAL DATA has to pull this knob when the sweeper is not working. By means of the black little lever under the knob the operator can release the brake. Parking brake knob Picture 7 Important: the brake must be checked and registered every three months. Driving seat regulation.
- Page 14 S32B TECHNICAL DATA How to use the machine. The operator can start the three functions of the machine by means of the three levers next to the driving seat. Make reference to the scheme below for the explanation of the yellow sticker under the levers (see picture 9). Pressure lever main brush Picture 9 The operator has to pull the lever down in order to sink down...
- Page 15 S32B TECHNICAL DATA The operator has to follow the rules below to sweep the surface: start and sink the sweeping group down; start the vacuum engine; open the flap; drive the sweeper at the same speed to clean all the surface. The operator has to follow the rules below to empty the waste tank: close the flap;...
- Page 16 S32B TECHNICAL DATA Knob Brush support Picture 11 Picture 12 Brush holder detail Revision 00 Maggio 2006 Page 18 di 37...
- Page 17 S32B SAFETY Side brush replacement Unscrew the bolts (picture 13) and remove the brush; replace the brush and tighten the bolts again. Picture 13 How to replace the vacuum filter of the sweeping group and filter shaker engine Important: remove the key from the dashboard of the sweeper; open the bonnet of the machine by means of the button (picture 14);...
- Page 18 S32B SAFETY Fastening screws Picture 15 Thanks to the vibrations of the filter shaker engine, the dust falls down from the filters into the waste tank. If it is necessary, remove and replace the filter shaker engine. How to clean the waste tank The operator has to follow the instructions below to clean the waste tank: lift the waste tank up and open the flap;...
-
Page 19: Safety
S32B SAFETY SAFETY 3.1 RIGHT USE OF THE MACHINE This sweeper is equipped with an internal combustion engine and has been designed to clean open spaces. S32 can pick up dust from horizontal surfaces or with a slope not higher than 10% at a speed not higher than 3km/h. During a U- turn, the slope has not to be higher than 5%. -
Page 20: Suggested Equipment
S32B SAFETY 3.3 SUGGESTED EQUIPMENTS In order to use the machine in a proper way, we suggest to use FIORENTINI equipments and original spare parts. FIORENTINI S.r.l. Technical Dept. is always at your disposal to design components or parts for a particular use of machine as requested by the customer. -
Page 21: Protection And Warning Devices
S32B SAFETY 3.5 PROTECTION AND WARNING DEVICES The machine is equipped with a nylon central brush that rotates while the machine is on duty. The machine cannot reach dangerous areas thanks to a Side brush case stainless steel case set up on the brush. The operator can remove the brush case only with special tools. -
Page 22: Other Dangers
S32B SAFETY 3.6 OTHER DANGERS Starting from the design of the machine, FIORENTINI studies every kind of danger that can occur whilst using the sweeper in order to prevent or at least reduce the number of accidents for the operator. The operator can avoid many risks that can occur during the machine operating thanks to a series of signals on the machine. -
Page 23: Safety Signals
S32B SAFETY 3.7 SAFETY SIGNALS On the brushes protection cases of the machine the operator can find stickers that show different dangers that can occur whilst operating with the sweeper. Dangers’ signals are triangular with black pictures on DANGERS a yellow background Prohibitions’... - Page 24 S32B SAFETY Squashing ranger: this can of ranger can occur when the engine cover is What is it ? open. Whilst installing or maintaining the engine, the operator has to stop the What to do engine cover with its rod. Picture 18 The purchaser must replace danger signals on the machine if they are deteriorated.
-
Page 25: Transport And Handling
S32B HOW TO START AND USE THE MACHINE HOW TO START AND USE THE MACHINE 4.1 TRANSPORT AND HANDLING The machine is delivered to the purchaser in a proper package (see picture 20 below). A black arrow on the package shows the barycentre. This arrow must be in the middle of the elevator or transpallet forks. The package must be carefully handled. - Page 26 S32B HOW TO START AND USE THE MACHINE The machine must be handled with proper devices as stated in the scheme below. Please, make sure that the black arrow on the package is always in the middle of the elevator forks or the sling bands. Anchorage and/or sling points are set on the machine up in order to keep the stability of the sweeper during the handling.
-
Page 27: Storage
S32B MAINTENANCE STORAGE The machine must be stored in a closed and dry place if not immediately installed in order to keep every part safe. Relative humidity must be lower than 80% and the storage temperature must be between 3°C ≤ t ≤ + 45 °C. INSTRUCTIONS TO UNPACK THE MACHINE Cut off the bands being careful of the elastic reversion Take away on the base of the cartoon the clips that keep it together with the pallet. -
Page 28: Starting The Machine
S32B MAINTENANCE 4.7 STARTING THE MACHINE S32 sweeper can be starter only after a complete check up of all its components and safety devices. This is why, well trained FIORENTINI technicians do a strict control while manufacturing the machine and an accurate final test. -
Page 29: Maintenance
S32B MAINTENANCE MAINTENANCE 5.1 PERIODICAL MAINTENANCE A periodical maintenance is important in order to keep the machine efficient. Please fill in the format below all the interventions done on the machine. If the original product is not conform, do not use it and wait for the repair or replacement of the defected part. -
Page 30: Batteries Maintenance
S32B MAINTENANCE 5.2 BATTERY MAINTENANCE Control of battery charge can be easily made when the operator is working with the machine through the indicator placed on the control bridge. It shows the following information : On green : the battery is charged On yellow : the battery is half-charged On red : the battery is flat During charging don’t let the battery box opened... - Page 31 S32B MAINTENANCE 5.2.5 TECHNICAL FEATURES OF THE CHARGER The charger has the following features: Entrance Exit Directive: Electromagnetic compatibility 89/336/CEE - (EN 50081 – EN 50082) and next modification 92/31/CEE Low tension 73/23/CEE – (EN 60950 class 1) and next modification 93/68/CEE N.B.
