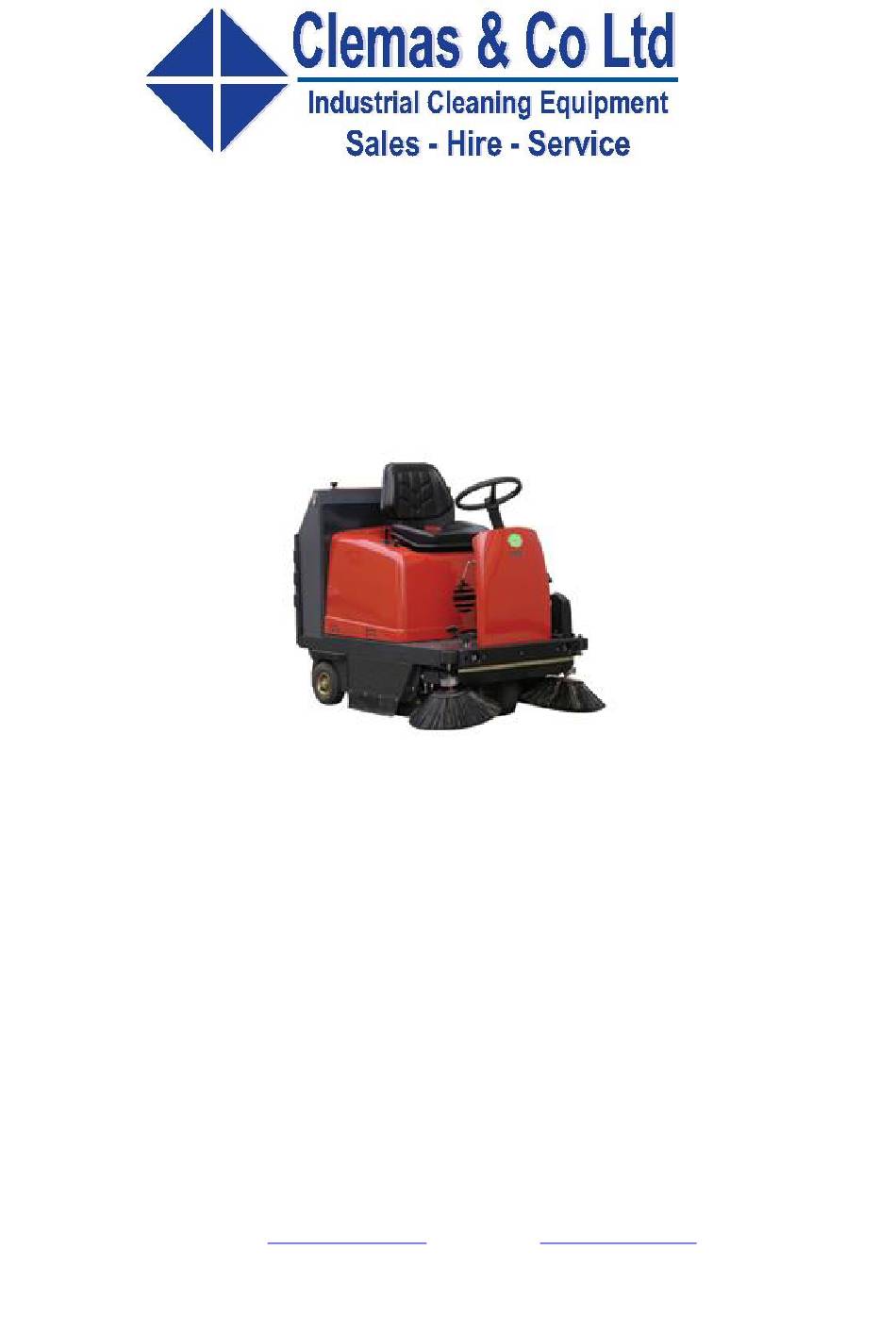

- Page 1 GANSOW 125 SWEEPER OPERATOR MANUAL Clemas & Co. Unit 16 Ashchurch Business Centre, Alexandra Way, Tewkesbury, Gloucestershire, GL20 8NB. Tel: 01684 850777 Fax: 01684 850707 Email: info@clemas.co.uk Web: www.clemas.co.uk...
-
Page 2: Important Warnings
Manual code: PLDC01471 Use & Maintenance Manual 105/125/130 B 1. IMPORTANT WARNINGS 2. IMPORTANT INFORMATION BEFORE USE 3. OPERATING THE MACHINE 4. TIPS 5. TROUBLESHOOTING 6. SERVICE, MAINTENANCE AND PERIODIC CONTROLS 7. INTERPRETING ERROR MESSAGES 8. TECHNICAL SPECIFICATION 1) IMPORTANT WARNINGS a. - Page 3 Manual code: PLDC01471 declines all responsibility for damage deriving from use of spare parts other than those supplied by the manufacturer himself. The storage temperature ranges from 0° to + 50° C . m. The optimal working temperature should range from 0° and + 40° C. n.
-
Page 4: Operating The Machine
Manual code: PLDC01471 3) OPERATING THE MACHINE a. Screw on all the battery caps, making sure the lead plates are completely submerged (not relevant to gel batteries). b. Turn off the battery charger. Unplug the battery charger and plug it into the fixed socket on the machine. -
Page 5: Side Brushes
Manual code: PLDC01471 through 30° to ensure the clean part of the filter is always turned towards the bin (for optimum suction power). It is also good practice to clean the filter after one hour of work or at the start of each cleaning session. - Page 6 Manual code: PLDC01471 Approach the emptying area in the lowest gear and at the slowest speed. IMPORTANT: Empty the bin at the back of the machine after the first half hour of work. The period recommended for emptying the bin the first time is based on a cautious estimate. Depending on the type of material and above all on the experience of the operator, emptying times can be optimised to avoid emptying a half full bin.
- Page 7 Manual code: PLDC01471 To use the service brake, just press the brake pedal and the springs in the brake shoes will bring it back to the standby position. To use the parking brake, press the pedal and at the same time lower the top lever to stop the pedal from springing back.
-
Page 8: Troubleshooting
Manual code: PLDC01471 TIPS a. for best results, when sweeping, overlap the previously cleaned strip by about 3-5 cm for optimum coverage without streaks. b. The machine has been designed to sweep right up to the wall. If knocked, the side brush arm retracts inwards and returns to its original position as soon as the pressure is removed. - Page 9 Manual code: PLDC01471 • that the cables are connected correctly • the ring and pinion in the reduction motor differential housing e. The suction motor does not start, check • that the centre brush is lowered and rotating • all points in 5.a Inadequate suction, check: •...
- Page 10 Manual code: PLDC01471 SERVICE, MAINTENANCE AND PERIODIC CONTROLS a. Before any servicing or maintenance work is carried out on the machine and before any parts are replaced, always follow these warnings scrupulously: • turn off the key switch, • unplug the power plug to ensure the machine is not powered up, •...
- Page 11 Manual code: PLDC01471 Filter: - check that the rotary filter is undamaged and the filter shaker blades are correctly adjusted - grease the filter shaker motor chain - check the tension of the filter shaker motor chain Electric motors: - check the centre brush motor carbon brushes - check the side brush motor carbon brushes Electric motors: - check the drive motor carbon brushes...
-
Page 12: Interpreting Error Messages
Manual code: PLDC01471 7) INTERPRETING ERROR MESSAGES CONTROL PANEL CONSOLE CAUSE REMEDY CODE • No communication between • Check cabling • Replace chopper control panel and chopper • Cabling error • Chopper error • Logic error • Turn the machine off then on again. - Page 13 Manual code: PLDC01471 • Drive motor field cables not • Connect the drive motor field NO FIELD CURRENT connected cables • Chopper error • Replace chopper HIGH FIELD CURRENT VFIELD NOT • Faulty connection of, or • Connect the cables correctly •...
- Page 14 Manual code: PLDC01471 TECHNICAL SPECIFICATION 105/125/130 BATTERY Voltage Power Drive motor 24 V 300 W Suction motor 24 V 400 W Centre brush motor 24 V 400 W Side brush motor 24 V 40 W Filter shaker motor 24 V 35 W Centre brush actuator 24 V...
