Installing in a standard EIA Rack
Installing the Rails in a Standard EIA Rack

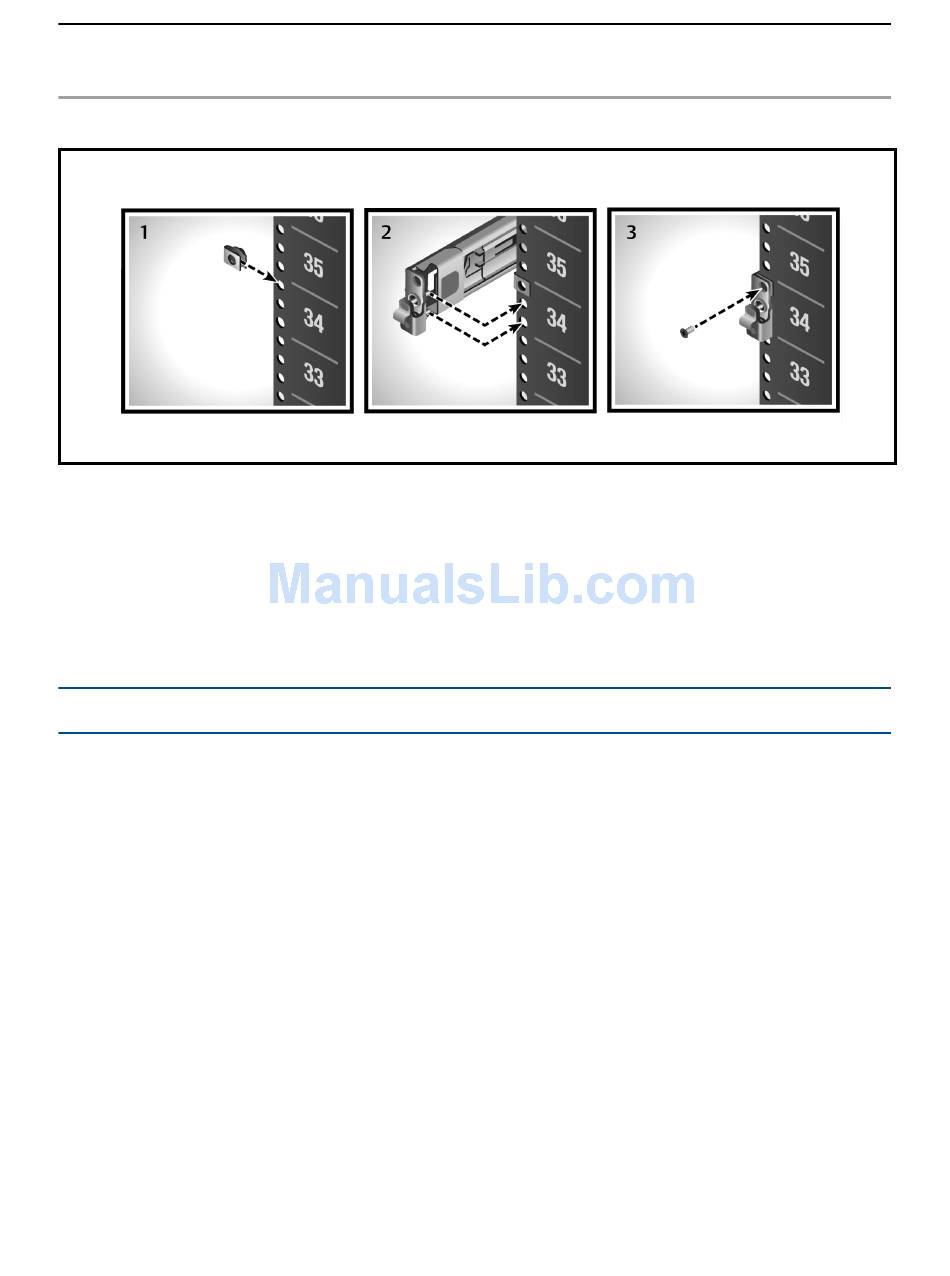

To install the rails into a standard EIA rack:
1. Install a cage nut into the RU position on the front flange of the rack where you are going to
install the rails.
2. Install the front of the rail so that the pins are in the bottom two positions in the RU space.
3. Insert a supplied screw into the cage nut to secure the front of the rail to the rack.
NOTE: Do not tighten the screw until the unit is installed to allow for adjustment during installation.
4. Insert the rear of the bracket into the rack, making sure it locks into place.
5. Repeat steps 1-4 for the rail on the other side of the rack.
