Page 1: Instruction Manual

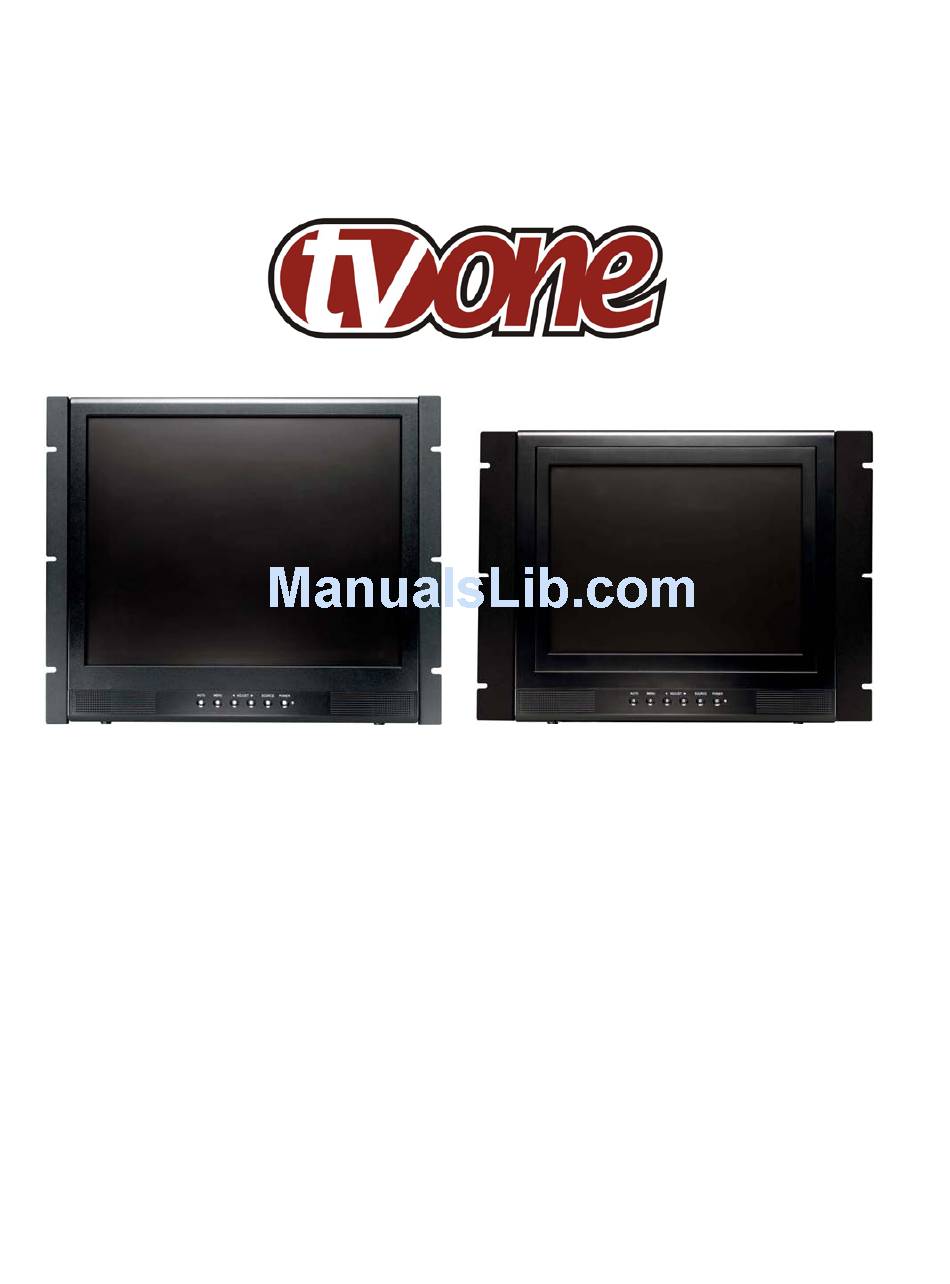

Instruction Manual LM-1511R and LM-1911R Color LCD Rackmount Monitors... -
Page 3: Table Of Contents
Table of Contents Introduction Safety Instructions Intellectual Property Specifications Checking Package Contents Connecting the Hardware Operating the Unit Troubleshooting Limited Warranty 10.0 Regulatory Compliance 11.0 Contact Information... -
Page 4: Introduction
INTRODUCTION Thanks for purchasing this LM-1511R or LM-1911R LCD Monitor from TV One. The LM- 1511R and LM-1911R LCD Monitors are designed to provide superior image displays under a variety of conditions and operate as either rack mount or desk top devices. Our professional video conversion products have been serving the industry for over twenty years. -
Page 5: Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS To insure the best from this product, please read this manual carefully. Keep it in a safe place for future reference. To reduce the risk of electric shock, do not remove the cover from the unit. No user serviceable parts inside. Refer servicing to qualified personnel. Power and Connections This unit is not disconnected from the AC power source as long as it is connected to the wall outlet. -
Page 6: Specifications
Panel Manufacturer’s Terms Mechanical – In Rackmount LM-1911R Size (H-W-D) 400x482x65mm (15.75”x19”x2.5”) Weight (Net) 6.5 kg (14.2 lbs) Rackmount 9RU - Tilt Up/Down LM-1511R Size (H-W-D) 355x482x59mm (14”x19”x2.3”) Weight (Net) 5.3 kg (11.6 lbs) Rackmount 8 RU - Tilt Up/Down... -
Page 7: Checking Package Contents
SPECIFICATIONS – Continued Mechanical – W/O Rackmount LM-1911R Size (H-W-D) 424x404x65mm (15.7”x16.7”x2.5”) Weight (Net) 6.6 kg (13.6 lbs) Wall Mount VESA Standard LM-1511R Size (H-W-D) 284x380x59mm (11.2”x14.9”x2.3”) Weight (Net) 4.9 kg (10.8 lbs) Wall Mount VESA Standard Environmental Operating Temperature -10°... -
Page 8: Connecting The Hardware
CONNECTING THE HARDWARE Please study the panel drawings below and become familiar with the signal input, outputs, power requirements/inputs plus any controls present. -
Page 10: Operating The Unit
Attempt to Use An Incorrect AC Cable. OPERATING THE UNIT The LM-1511R and LM-1911R monitors are operated using front panel controls and an On Screen Display (OSD). The controls consist of a group of six buttons located on the lower center of the front panel. Please refer to illustration below and the discussion that follows. - Page 11 Source Switch: Pressing the button labeled ‘SOURCE’ will step the inputs through all possible signal input selections. Repeatedly press the button until you arrive at the desired input. Auto Switch: Pressing the button labeled ‘AUTO’ will cause the monitor to optimize the picture any time a VGA source is present and selected.
- Page 12 VGA Setup: VGA Signal Auto, Brightness, Contrast, Color Temperature, White Balance, H-Position, V-Position, Clock, Phase, Default and Exit. Exit: Exit the OSD function. General Setup Selecting the ‘General Setup’ function causes the following sub-menu to appear: Power Latching Power Auto On NONE Key Lock Language...
- Page 13 Video Setup Brightness: Adjusts the luminance Brightness component of the picture. Contrast Contrast: Adjust the contrast level Color between the light and dark areas of Tint picture. Sharpness Color: Adjusts the amount of color Video System NTSC present in the picture. Scan Mode Large Tint: Adjusts the faithfulness of color...
-
Page 14: Troubleshooting
TROUBLESHOOTING The major cause of difficulty with the LM-1511R and LM-1911R monitors is use of faulty or low quality cables, attempting to use cables over to long a distance and selecting the wrong source for what is actually connected to the monitor. -
Page 15: Regulatory Compliance
10.0 REGULATORY COMPLIANCE The LM-1511R and LM-1911R monitors have been tested for compliance with appropriate FCC and CE rules and regulations. The Power Adaptor/Supply has been tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, Regulations and/or Guidelines.
