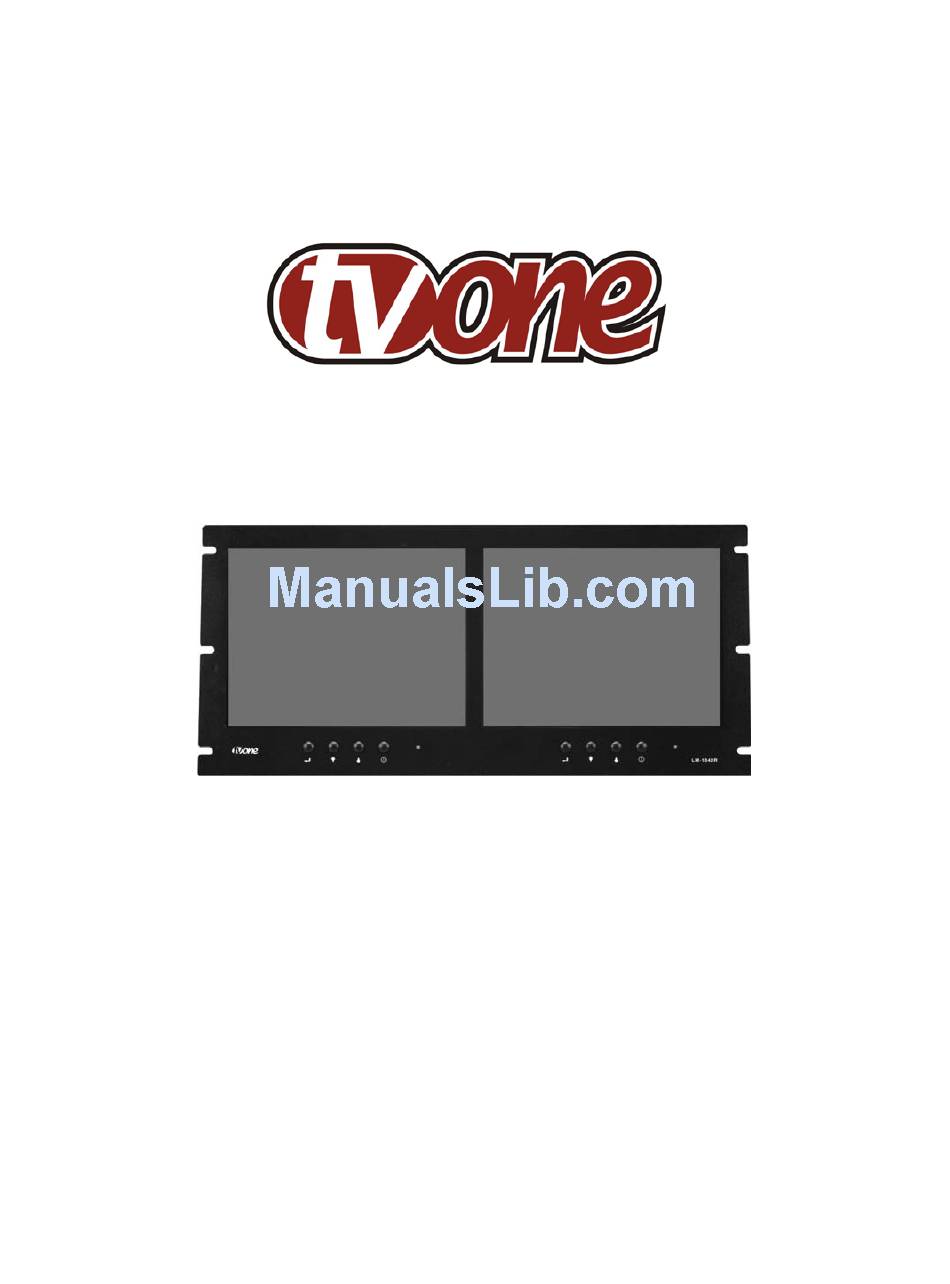

Page 1: Instruction Manual
Instruction Manual LM-1042R Dual 10.4” Color LCD Monitors... -
Page 3: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting The Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contacts... -
Page 4: Introduction
INTRODUCTION The LM-1042R is a high performance Dual 10.4” Color LCD Multimedia Monitor in a rack mount housing, occupying only 5 RU of vertical space. The Active Matrix Display features wide viewing angles, an excellent contrast ratio and high brightness. NTSC and PAL TV Standards are automatically detected. -
Page 5: Specifications
SPECIFICATIONS LCD Panels Number of Displays Display Element Active Matrix TFT Aspect Ratio Display Size 2x 10.4” (26.4cm) Diagonal Panel Resolution 800x600 Contrast Ratio 400:1 Brightness 230 cd/m2 Response Time 45ms Left/Right View Angle 55° Up/Down View Angle 40° Inputs – Per Display Composite Video 1x via BNC Connector (Looping) Computer... -
Page 6: Checking Package Contents
2.1 Supported Computer Resolutions The LM-1042R monitors will accept and display any of eight computer resolutions via each of the two HD-15 connectors on the rear of the unit. Each monitor operates independently so you can display different resolutions on each monitor. -
Page 7: Connecting The Hardware
CONNECTING THE HARDWARE Referring to the drawings below, connect the proper cables and then connect the AC power adaptor. The front view of the LM-1042R is shown below. OSD (On Screen Display) Menu Select/Enter Button Control Operation Source Select or OSD Item Select or Decrease Value... - Page 8 In this rear view of the LM-1042R, the Composite Video inputs can be seen for each display. These are looping inputs so that each video input can also be made to appear at another destination in addition to the LM-1042R. Each display also has an HD-15 VGA type connector for display of a PC video signal.
- Page 9 (The OSD button has become the Enter button once the OSD is visible and you use it to select the item to be adjusted or changed once you’ve navigated to it with the up and down arrow buttons.) As soon as you select the item from the menu, the up and down arrow buttons become the adjustment or change controls and you use them to increase, decrease or set the selected item to the value you desire.
- Page 10 When you bring up the OSD the menu structure shown above will appear. The menu items on the left are the top tier menu items and the items on the right are the secondary menu items. Move vertically on the top tier menu using the up and down arrow buttons until you reach the area you want to enter to make an adjustment and press the left most button (which is now the Enter button) to select that item.
- Page 11 Note: Some secondary menus have a recall and/or return function. Selecting these will either revert to pervious settings or return to the top tier menu items. 5.1.3 Video Menu Structure. Selecting “Video” as the source on the main menu will reveal a new secondary menu item called “Chrominance”...
-
Page 12: Troubleshooting
LM-1042R’s inputs to another monitor. (In other words, bypass the LM-1042R to insure that the problem is not with the source devices.) If the signal is present under those conditions, make certain that the power is present on the LM-1042R. -
Page 13: Regulatory Compliance
REGULATORY COMPLIANCE The LM-1042R has been tested for compliance with appropriate FCC and CE rules and regulations. The Power Adaptor/Supply has been tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, Regulations and/or Guidelines. This Product and Power... -
Page 14: Contacts
San-Min Rd, Panchiao City No.518 Shangcheng Road Taipei Hsien 220 Pudong, Shanghai Taiwan R.O.C. China 200120 Tel +886 2 8951-0674 Tel +86 21 5830-2960 Fax +886 2 8951-0675 Fax +86 21 5878-0161 sales.asia@tvone.com Email: sales.china@tvone.com www.tvoneasia.com Website: www.tvonechina.com End of Manual...
