IMPORTANT: DO NOT DISCARD THIS MANUAL
This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your WELLS DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR
INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any
questions concerning installation, operation or maintenance of this equipment.
2M-Z19817
p/n
Rev. -

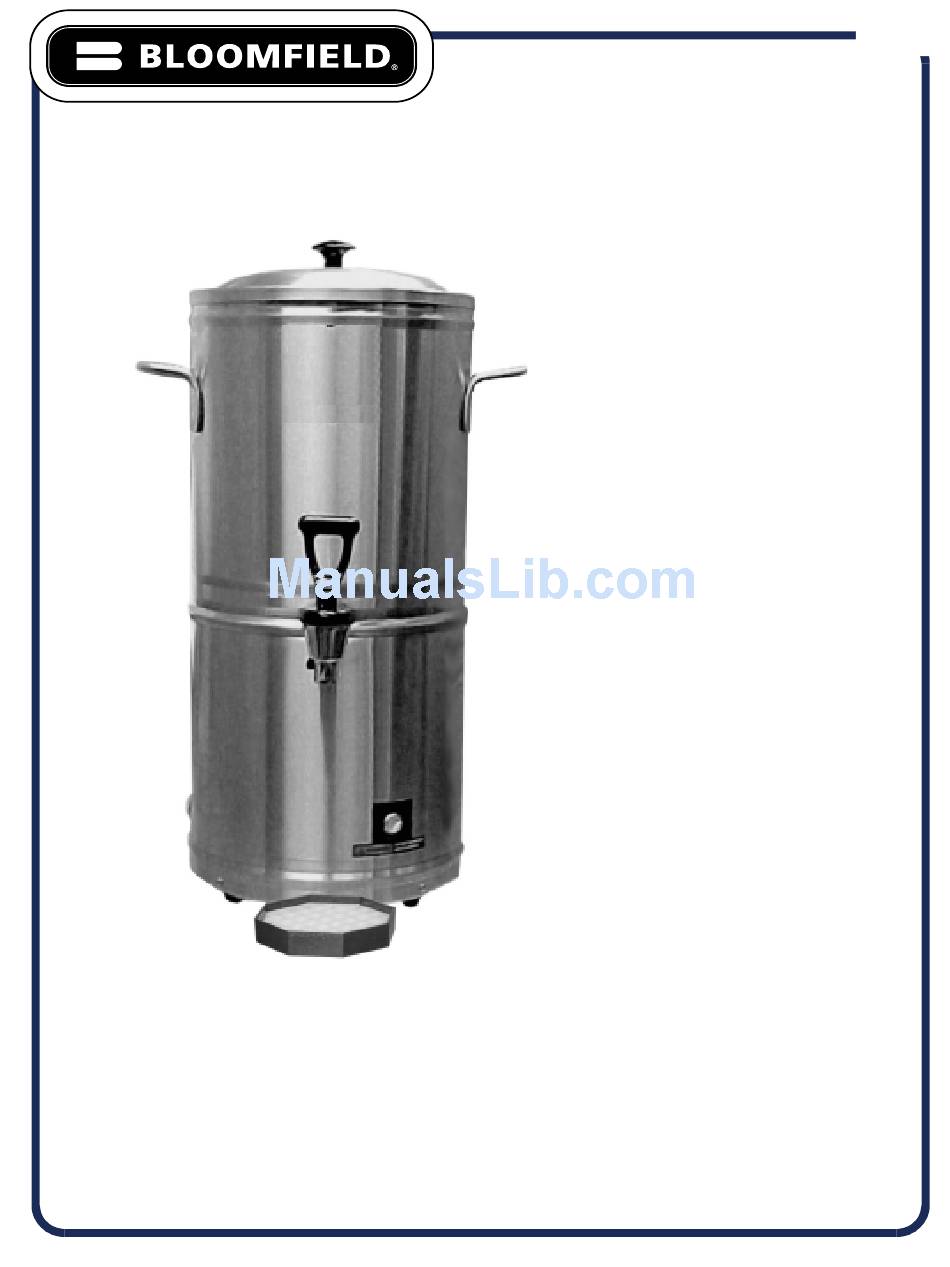

Model HD8799B
Heated Dispenser
OWNERS MANUAL
for
HEATED DISPENSER
MODEL
HD8799B
2½-Gallon
Includes:
Installation
Operation
Use & Care
Exploded View
Parts List
Wiring Diagram
M595
595
15
0116
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bloomfield HD8799B
Summary of Contents for Bloomfield HD8799B
- Page 1 Use & Care Exploded View Parts List Wiring Diagram Model HD8799B Heated Dispenser IMPORTANT: DO NOT DISCARD THIS MANUAL This manual is considered to be part of the appliance and is to be given to the OWNER or MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of this appliance.
- Page 2 Bloomfield for its products are based upon the limitations in this warranty. Seller’s obligation under this warranty is limited to the repair of defects without charge by a Bloomfield Authorized Service Agency or one of its sub-agencies. This service will be provided on customer’s premises for non-portable models.
-
Page 3: Specifications
EXPLODED VIEW & PARTS LIST SERVICING INSTRUCTIONS INTRODUCTION Thank You for purchasing this Bloomfield appliance. Proper installation, professional operation and consistent maintenance of this appliance will ensure that it gives you the very best performance and a long, economical service life. -
Page 4: Features & Operating Controls
FEATURES & OPERATING CONTROLS IL2955 Fig. 1 Features & Operating Controls... -
Page 5: Precautions And General Information
PRECAUTIONS AND GENERAL INFORMATION WARNING: Electric Shock Hazard All servicing requiring access to non-insulated components must be performed by qualified service personnel. Do not open any access panels which require the use of tools. Failure to heed this warning can result in electrical shock. WARNING Electric Shock Hazard Warmer must be properly grounded to prevent possible shock hazard. -
Page 6: Installation
Model HD8799B dispensers is equipped with a cord and plug. position. Provided non-skid feet They requires a 115 - 125 volt circuit (50/60 Hz, 2 wire plus must be installed at each corner ground, with NEMA 5-15R receptacle). -
Page 7: Operation
OPERATION PREPARATION CAUTION: Burn Hazard Prior to first use, thoroughly clean warmer (see page 6). Be sure faucet handle is “up” and that drip tray is in place under Exposed surfaces of the faucet. appliance may be HOT to the touch and can cause burns. -
Page 8: Cleaning Instructions
CLEANING INSTRUCTIONS PROCEDURE: Clean Heated Dispenser CAUTION: Electric Shock PRECAUTIONS: Disconnect dispenser from electric power. Hazard Drain product and allow dispenser to cool. Do not submerge or immerse dispenser in water. FREQUENCY: Daily or after draining product from dispenser CAUTION: Burn Hazard TOOLS: Mild Detergent, Clean Soft Cloth or Sponge... -
Page 9: Troubleshooting Suggestions
TROUBLESHOOTING SUGGESTIONS SYMPTOM POSSIBLE CAUSE SUGGESTED REMEDY Not plugged in or circuit Restore electric power to warmer breaker off or tripped Power switch not ON Turn power switch to ON Inspect wiring for burnt wires and Internal wiring damage Appliance will not heat proper connections . -
Page 10: Exploded View And Parts List
EXPLODED VIEW & PARTS LIST MODEL HD8799B 2½-GALLON DISPENSER Model: HD8799B 2 1/2 Gallon Dispenser ITEM PART NO DESCRIPTION ITEM PART NO DESCRIPTION 2U-87737 FAUCET ASSEMBLY 2N-75853 HEATING ELEMENT 120V 200W 1.1* WS-8600-15 FAUCET SPB PLASTIC (BLK) 2T-75863 THERMOSTAT 140ºF 120V 1.2*... -
Page 11: Servicing Instructions
SERVICING INSTRUCTIONS ACCESS - BOTTOM PANEL CAUTION Electric Shock All internal components are accessible by removing the bottom Hazard panel. Opening the bottom panel will Remove four screws around the bottom of the warmer tank to expose uninsulated electrical free bottom panel from tank assembly. components. - Page 12 10 Sunnen Drive, St. Louis, MO 63143 telephone: 314-678-6336 fax: 314-781-2714 www.bloomfieldworldwide.com...
