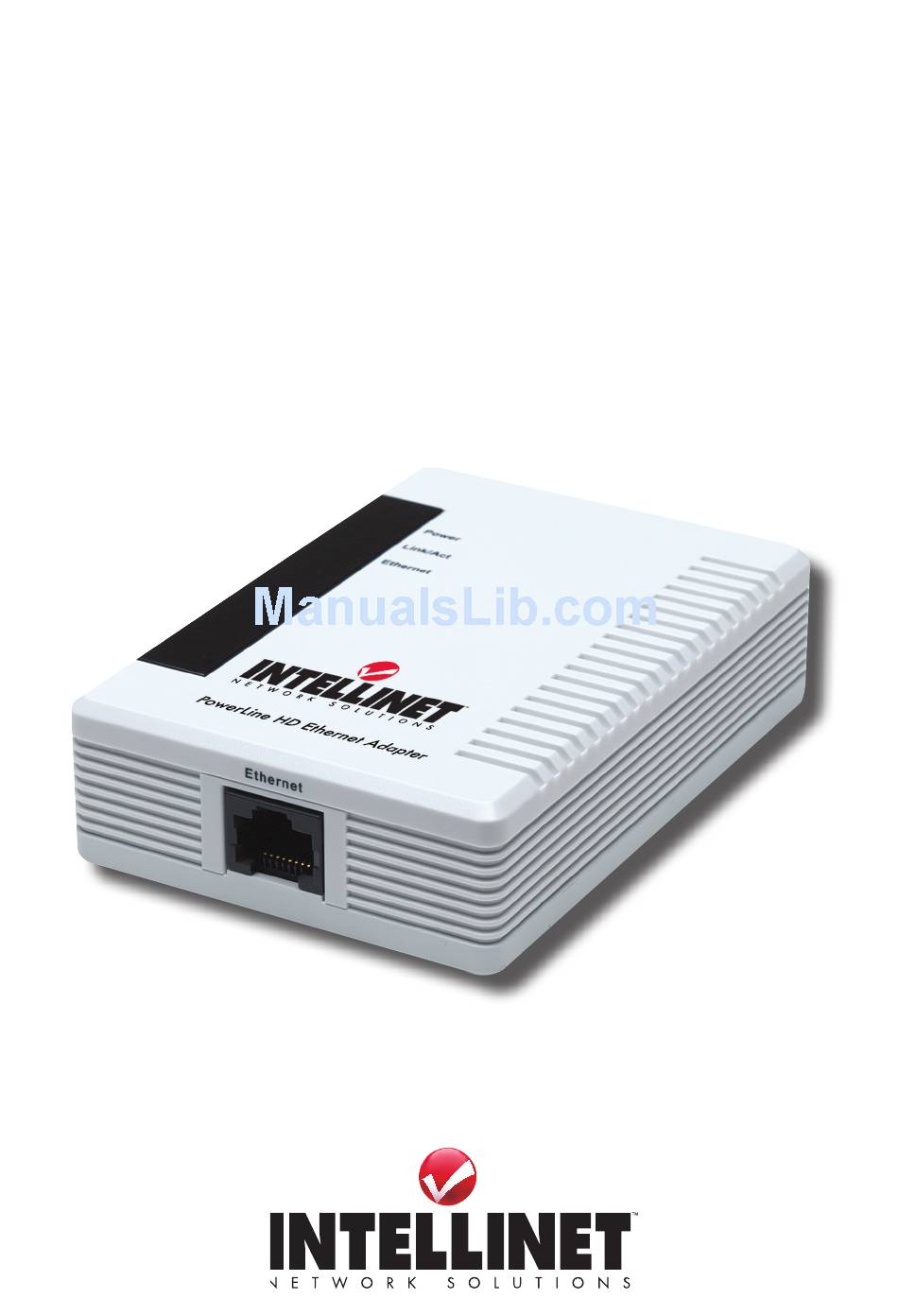

Model 503273
INT-503273-UM-0407-02

Advertisement

Table of Contents
loading

Related Manuals for Intellinet 503273

Summary of Contents for Intellinet 503273

  • Page 1 PowerLine etHernet ADAPter User MAnUAL Model 503273 INT-503273-UM-0407-02...

  • Page 2: Table Of Contents

    6. Specifications ..............15 How to Use tHis MAnUAL This user manual has been designed to make understanding networking with the INTellINeT NeTWoRK SolUTIoNS Powerline Hd ethernet Adapter ™ easier than ever. look for the following items when reading this manual: This check mark means there is a note of interest about something you should pay special attention to while using the device.

  • Page 3: Introduction

    1. introDUction Congratulations on your purchase of the INTellINeT NeTWoRK SolUTIoNS Powerline Hd ethernet Adapter, Model 503273. The adapter will allow you to network better than ever by letting you turn the existing AC power lines in your home or office into a high-speed network. Now you don’t have to drill through the walls or climb through the attic or cellar to install network cables.

  • Page 4: Connecting The Adapter

    Blinking Ethernet activity No Ethernet port link IMPORTANT: because the INTellINeT NeTWoRK SolUTIoNS Powerline Hd ethernet Adapter sends data over a home’s power lines, plug it directly into an electrical outlet. It’s recommended not to plug the device into a power strip with surge protection. And do not plug the device into a UPS: The adapter has its own power filter for protection against surges.

  • Page 5: Utility Installation

    NOTE: If you want the devices on your Powerline network to share high-speed Internet access, connect the bridge to a router after you run the Powerline Configuration Utility (refer to the previous section). AV Utility Installation 1. Insert the utility Cd, then run the setup.exe program to...

  • Page 6: Utility Access

    5. Wait for “finish” to appear on the status bar. 6. If frameWork 1.1 has not yet been installed, click “Yes” to install; then complete the software installation. AV Utility Access To access the Powerline Hd Utility, double-click its icon on your desktop.
  • Page 7 If your PC has more than one NIC, select the one that is connected to Figu re 2 the local device, as shown in the example at right. After you select the correct network card, more information will appear about the connected powerline network.

  • Page 8: Privacy Screen

    In addition, the Selected Slave (station) Information area shows the MAC address and TeI for the station the utility is running on. each distinct network (using the same network password) has only one master adapter: The others are all slaves. If the master adapter is disconnected, one of the slaves will be changed to the master.
  • Page 9 Privacy dialog screen allows you to change to a private network by changing the network name (network password) of devices. You can always reset to the Powerline Hd network (Public) by entering “HomePlugAV” as the network name. Note: Please select the local adapter from “ Device Selection” fir st. This privacy capability is used to set or change the network password on a remote device identified by its password.

  • Page 10: Qos Screen

    QoS requirements are different for various data types, such as streaming video or music, voice and raw data. To provide higher QoS for streaming data, priority levels can be set using tags at the beginning of data frames. Virtual local area network (VlAN) 802.1p priority tags on ethernet frames are used to specify eight levels of “user priority”: 0 –...

  • Page 11: About Screen

    The default CAP group allows for default priority mapping of packets that do not have a VlAN or ToS bit (or if these are disabled). Settings are available for Unicast (directed to a host). IGMP (default CAP 3) — Sets the channel access priority for IGMP (Internet group management protocol) frames.

  • Page 12: Troubleshooting

    5. troUbLesHooting This section consists of two parts — Common Problems & Solutions and frequently Asked Questions — and provides solutions to problems that may occur during the installation and operation of this product. Problem: None of the LEDs light up after installing the adapter. Solution: Unplug the Category 5 ethernet network cable from the computer.
  • Page 13 1. Run as administrator Right-click on the application and select “Run as administrator” to launch it. You can also set the program to always run as administrator. Right-click the program and select the file properties. Select Compatibility, then select “Run this program as an administrator.”...
  • Page 14 2. Disable UAC If the program can’t launch due to the UAC security function, you can disable the function to launch it. Go to the Control Panel and change to “Classic View.” double-click the “User Accounts” icon. Click “ Turn User Account Control on or off.”...

  • Page 15: Specifications

    Do PowerLine products cause interference with other home networking products? No. They operate in a different frequency band, sothey can co-exist with phoneline and wireless networking technologies, such as X- 1 0, Cebus and loNworks. How do PowerLine products handle signal interference between two adjacent homes? How is eavesdropping prevented? To ensure network separation between homes, Powerline products use 128-bit AeS security encryption, which is enabled by default.
  • Page 16 INTellINeT NeTWoRK SolUTIoNS offers a complete line ™ of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
