NVR User's installation and operation Manual
16CH FullHD Network Video Recorder
TINF6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Series NVR and is the answer not in the manual?

Questions and answers

Related Manuals for Infinite Play Series NVR

Summary of Contents for Infinite Play Series NVR

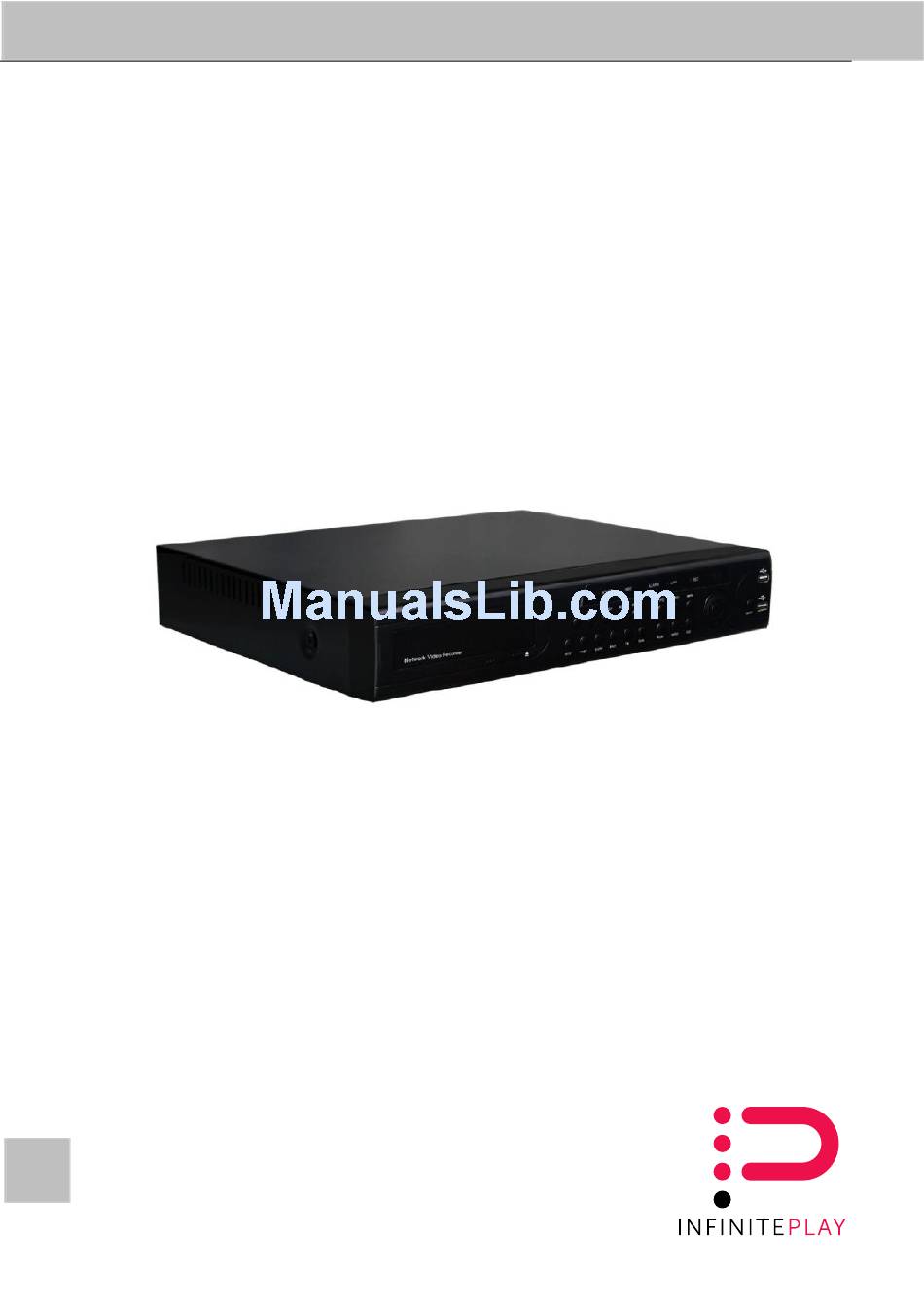

  • Page 1 NVR User’s installation and operation Manual 16CH FullHD Network Video Recorder TINF6...

  • Page 2: Important Safeguards And Warnings

    INFINITE PLAY H.264 series NVR User’s installation and operation Manual Important Safeguards and Warnings  Do not place heavy objects on the NVR.  Do not let any solid or liquid fall into or infiltrate the NVR.  Please brush printed circuit boards, connectors, fans, machine box and so on regularly.

  • Page 3: Table Of Contents

    INFINITE PLAY Directory 1. Product Introduction ............................5 1.1 Product overview ................Errore. Il segnalibro non è definito. 1.2 Main functions ..............................5 2. Open-package check and cable connections....................7 2.1 Open-package check .............................7 2.2 Hard disk installation ............................7 2.3 Audio and video input and output connections .....................8 2.3.1 Video input connections ........................8...
  • Page 4 INFINITE PLAY 4.3.1 Motion Detect ..........................39 4.3.2 Video Blind ............................41 4.3.3 Video Loss.............................42 4.3.4 Alarm input.............................43 4.3.5 Abnormal............................43 4.4 System setup ...............................44 4.4.1 General ............................44 4.4.2 Encode setup ..........................45 4.4.3 Network setup ..........................46 4.4.4 NetService .............................47 4.4.5 GUI Display ...........................52 4.4.6 PTZ setup ............................53...

  • Page 5: Product Introduction

    The series NVR can be used individually or online applied as a part of a safety surveillance network. With the professional network video surveillance software, it achieves the strong network communication ability and telecommunication ability.
  • Page 6 INFINITE PLAY  Individual real-time video recording as well as searching, playback, network surveillance, recording check, downloading and so on  multi-playback mode  zoom at arbitrary region Net operating:  Through net tele-surveillance in the real time  Tele-PTZ control ...

  • Page 7: Open-Package Check And Cable Connections

    INFINITE PLAY 2. Open-package check and cable connections 2.1 Open-package check When you receive the NVR, please check first . First, please check whether there is any visible damage to the package appearance. The protective materials used for the package of the NVR can protect most accidental clashes during transportation.

  • Page 8: Audio And Video Input And Output Connections

    INFINITE PLAY ①Connect hard disk ② Connect VGA Output ③ Connect the network cable 2.3 Audio and video input and output connections: 2.3.1 Video input connections: Connect the NVR with IP Search and add IP cameras to NVR . Please refer to chapter 3.3.

  • Page 9: Audio Signal Input

    INFINITE PLAY When replace the monitor by the computer display, there are some issues to be noticed. 1、Do not stay in the turn-on state for a long time. 2、Keep the computer display normal working by demagnetizing regularly. 3、Stay away from the electronic magnetic Interference.

  • Page 10: Alarm Input Port Specification

    INFINITE PLAY thunder. C. In the outlying end, please connect 120Ω resistance paralleled to reduce the inflection and insure the signal quality. D. The 485 AB lines of NVR can not connected with other 485 output equipments paralleled. E. The voltage between the AB lines of the decoder must be less than 5V.

  • Page 11: Alarm Output Port Specification

    INFINITE PLAY supply. 2.4.2 Alarm output specification: 1 channels alarm output. There is external power supply when using the external alarm equipment. Please refer to the relay relevant parameters to avoid the overload that damages main machine. 2.4.3 Alarm output port relay parameters Type：JRC-27F...
  • Page 12 INFINITE PLAY 2、Connect the video line with the NVR video input. 3、Power on the speed dome.

  • Page 13: Basic Operation

    INFINITE PLAY 3. Basic operation Note: The button in gray display indicates no support on such devices. . 3.1 Power on: Plug the power supply and turn on the power supply switch. Power supply indicator light shining indicates turning on the video recorder. After the start-up a beep sounds. The default setting of video output is multiple-window output mode.

  • Page 14: System Login And Add Ip Cameras

    INFINITE PLAY 3.3 System Login and Add IP cameras: 3.3.1 System Login: When the NVR boots up, the user must login and the system provides the corresponding functions with the user login interface . There is one user setting. The default name is Admin and no password needed.
  • Page 15 INFINITE PLAY (2) Right click on the preview interface, and click “Add IPC”.: If you click “add IPC” and go into the IP camera list, please click the “Refresh”. NVR will show the IP cameras searched automatically in LAN. Click “Add” ,the selected IPC will be added to current channel.
  • Page 16 INFINITE PLAY If you click “Add All IPC” ,please select a protocal, then NVR will automatically search and add IP cameras which support this protocal in LAN to all channels. (3)Click “+” in the middle of the channel, NVR will show the IP cameras searched automatically in...
  • Page 17 INFINITE PLAY...
  • Page 18 INFINITE PLAY (4)Connect NVR via IE ,click “setup--Device setting--System maintenance--channel mode setup”. Select channel and device, then click “Apply” .Fill in the IPC info on the right and click “Update”. Click “OK” to exit channel mode. You will see the IPC when you return to the preview interface.

  • Page 19: Ipc Parameters Synchronization

    INFINITE PLAY 3.3.3 IPC parameters synchronization: (1)IP sync. Please go to "Main Menu -- Add IPC" . NVR will search the IP cameras in LAN automatically. Click “Update IP” to sync the IP of IPC when NVR and IPC are in the same network segment.
  • Page 20 INFINITE PLAY (2)Color setting sync. Right click on the preview channel and choose “Color setting”. NVR will sync the color setting with IPC when “Sync color set” is enabled. (3)Encode config sync. Go to “Main menu--Encode config”. NVR will sync the encode parameters with IPC...

  • Page 21: Preview

    INFINITE PLAY 3.4 Preview: You can right click mouse to choose the switch between the windows. The system date, time and channel name are shown in each viewing window. The surveillance video and the alarm status are shown in each window.

  • Page 22: Main Menu

    INFINITE PLAY 3.5.1 Main menu When you login, the system main menu is shown as below. Picture 3.3 Main Menu 1.Switch page: 3methods to switch pages in main menu: 1.click the color picture on the sides of the main page; 2.

  • Page 23: Playback

    INFINITE PLAY 3.5.2 Playback There are two methods for you to play the video files in the hard disk. 1、 In the desktop shortcut menu. 2、 Main menu->Playback Picture 3.4 video playback 1. record pictures 2. date and time 3. record type 4.channels...
  • Page 24 INFINITE PLAY 【File backup】Go to backup files. Click the button and operate as followed. Note: The storage must be installed before the file backup. If the backup is terminated, the already backup can playback individually. Picture 3.5 detect the storage...
  • Page 25 INFINITE PLAY Detect: Detect the storage connected with the NVR such as hard disk or universal disk. Backup: Click backup button and the dialog box will pop up. You can choose the backup file according to the type, channel and time.
  • Page 26 INFINITE PLAY Start Time: Set the searching time scan. 【Editor】Backup files between two time points. Click “Detect” to detect USB flash drive. Select channel，type，audio enabled or not，start time， then click “Search” to search record. Click “Editor”，then double-click on the ribbon to set begin time and double-click again to set end time, and then click “Backup”...
  • Page 27 INFINITE PLAY 【Playback control】Refer to the following sheet for more information. Button Function Button Function Play/pause Exit Stop Slow play Fast play Previous frame Next frame Audio Brightness Contrast Full screen Backup Motion search Editor Slice search Table 3.2 Playback control key Special functions：...

  • Page 28: Fast Playback

    INFINITE PLAY Accurate playback：Input time (h/m/s) in the time column and then click button. The system can operate accurate playback according to the searching play time. Local zoom：When the system is in single-window full-screen playback mode, you can drag your mouse in the screen to select a section and then left click mouse to realize local zoom.
  • Page 29 INFINITE PLAY Picture 3.8 PTZ setup 【CAM】Choose the dome camera video input channel. 【Speed】Set the PTZ rotation range. Default range: 1 ~ 8. 【Zoom】Click button to adjust the zoom multiple of the camera. 【Focus】Click button to adjust the focus of the camera .
  • Page 30 INFINITE PLAY Picture 3.9 Preset Settings  Preset Point Calls In Picture 3.8, click “preset”, choose the preset number , PTZ turn to the corresponding preset point. Picture 3.10 PTZ Control 2、Cruise between Points: Multiple preset points connected cruise lines, call cruise between points, the PTZ run around on the line ...

  • Page 31: Color Setting

    INFINITE PLAY Step 1: set your preset points . Step 2: click button “Cruise Line”, then write proper value into the Preset Points blank and interval blank，then click button “Add” . to save, complete setting. Step 3:click Remove Preset：click the preset point item in the information box, then click Delete button. The preset point will be removed after that.

  • Page 32: Pip

    INFINITE PLAY Picture 3.12 Color Setting 3.5.6 PIP: On the display of any single channel, right-click the mouse and click PIP function, then in the pop-up window, you can choose any other channels to view together, and you can drag the window.

  • Page 33: Output Adjust

    INFINITE PLAY 3.5.8 Output Adjust: Adjust TV output area parameters. You can use the desktop shortcut menu or enter [main menu]> [Output adjust]. Picture 3.13 Output Adjust 3.5.9 Logout: ogout, shut down the system or reboot up. You can use the desktop shortcut menu or enter [main menu].

  • Page 34: Window Switch

    INFINITE PLAY 【Shut down】Quit the system. Turn off the power supply. When press the shut down button, there is schedule hint. After three seconds, the system is shut down. Cancel midway is “no effect” . 【Reboot】Quit the system. Reboot up the system..

  • Page 35: Main Menu

    INFINITE PLAY 4 Main menu 4.1 Main menu navigation: Main menu Sub menu Function Set the recording configuration, recording type, recording time Config section Record playback Set recording look-up, recording play, video file storage backup Detect backup equipment, backup the selective files...
  • Page 36 INFINITE PLAY Set channel, PTZ protocol, address, baud rate, data bit, stop bit, configuration check IP Cam Config Search and add ip cameras Tour Set patrol mode and interval time System Time Set system time Video Standard Set video standard...

  • Page 37: Record

    INFINITE PLAY Logout/shutdo Shut down Logout, shut down or reboot wn/reboot Entertainme Game Tetris 4.2 Record: 4.2.1 Record Config: Set the recording parameters in the surveillance channel. The system is set 24 hours consecutive recording in the first startup. You can enter [main menu]> [record mode] to set.

  • Page 38: Playback

    INFINITE PLAY Event: All record except general record Stop: The according channel stops recording in the set time section 【Period】Set the time section of common recording, The recording will start only in the set range. First select one of the record mode, then click the left key or drag to select the period.

  • Page 39: Alarm Function

    INFINITE PLAY Picture 4.3 File Backup Query：Show the file information satisfying the set file attributed. Remove：Clear the file information. Begin：Click the play button to start the backup. 4.3 Alarm Function: Alarm functions include: motion detect, video loss, alarm input .
  • Page 40 INFINITE PLAY 【CAM】Choose the set motion detect channel. 【Enable】 means that the motion detect function is on. 【Sensitivity】Choose in the six options according to the sensitivity. 【Region】Click setup and enter the set area. The area is divided into PAL22X18.. Yellow block means the dynamic detect defensive area.

  • Page 41: Video Blind

    INFINITE PLAY detect alarm is turned on. 【Delay】Delay a few moments and stop when the alarm state is turned off. The range is 10~300 seconds. 【Record channel】Choose the recording channel (multiple option supportive). Trigger the video signal when the alarm is turned on.

  • Page 42: Video Loss

    INFINITE PLAY Picture 4.9 Video Blind Set method: refer to chapter 4.3.1. Motion detect 4.3.3 Video Loss When the equipment can not obtain the channel video signal, the video loss alarm is turned on and the alarm function is turned on.

  • Page 43: Alarm Input

    INFINITE PLAY 4.3.4 Alarm input: When the equipment obtains the external alarm signal, the alarm function is turned on. Picture 4.11 Alarm input Set method: refer to chapter 4.3.1. Motion detect 4.3.5 Abnormal: Analyzing and inspecting current software and hardware of the device: When some abnormal events happen, the device will make a relative answer such as show message and buzzer.

  • Page 44: System Setup

    INFINITE PLAY 4.4 System Setup: Set the system parameters such as General, Encode, Net Work, Net Service, GUI display, PTZ config, Add IPC，Tour，System time，Video standard，Resolution，Wireless，Color setting，PTZ control. 4.4.1 General Picture 4.13 General setup 【System time】Set the system data and time.

  • Page 45: Encode Setup

    INFINITE PLAY 【Video Standard】PAL or NTSC. 【Auto Logout】Set the latency time in 0-60. 0 means no latency time. 【Key Voice】Enable the speaker on front panel. 【Auto add IPC】NVR will automatically search and add IPC. 【Channel Privilege】When checked，there will not be preview images before login.

  • Page 46: Network Setup

    INFINITE PLAY 【Video/Audio】When the icons are all selected, the video file is video and audio multiplex stream. Sync encode set NVR will sync the encode parameters with IPC. 4.4.3 Network setup Picture4.17 Network 【Net Card】You can choose cable network card or wireless network card.

  • Page 47: Netservice

    INFINITE PLAY 【P2P】Enable or disable p2p function. 4.4.4 Net Service: Choose the network service option and click the set button to configure the parameters. Picture 4.18 NetService 【PPPoE setup】 Picture4.19 PPPOE Input the user name and password that ISP（Internet service provider）provides. After saving it, please reboot up your system.
  • Page 48 INFINITE PLAY Picture 4.20 NTP The NTP server must be installed in the PC. Server IP: Input the IP address installed NTP server. Port: Default: 123. You can set the port according to NTP server. Time zone: London GMT+0 Berlin GMT +1 Cairo GMT +2 Moscow GMT +3 New Delhi GMT...
  • Page 49 INFINITE PLAY User Name: Apply the email server user name. Password: Input the password corresponding to the user. Sender: Set the senders’ email address. Receiver: Send the email to appointed receivers when the alarm is triggered. You can set three receivers maximum .
  • Page 50 INFINITE PLAY 【Enable】Click Enable then all settings will be available 【Server IP】 IP address for FTP server 【Port】 Domain Port of FTP, default 21 【User Name】User name of FTP 【Password】Password of user 【UPNP】UPNP protocol can auto port forwarding on router, make sure UPNP is running on router before use it.
  • Page 51 INFINITE PLAY 【Wireless Config】ADSL through USB 3G net card Picture 4.25 Wireless Config 【Enable】Choose Enable to make all settings available 【Type】Dial type, default AUTO 【Wireless AP】3G access point 【Dial Number】3G Dial Number 【User Name】User name of 3G 【Password】Password of dial user 【IP Address】IP address, got from dial...

  • Page 52: Gui Display

    INFINITE PLAY 4.4.5 GUI Display: Configure the video output parameters including the front output mode and code output mode. Front output：In the local preview mode include: channel title, time display, channel title, record status, alarm status ,bitrate info, transparency and region cover.

  • Page 53: Ptz Setup

    INFINITE PLAY Picture 4.28 GUI Display 【Channel Title】Click the channel name modify button and enter the channel name menu. Modify the channel name. The 16 Chinese characters and 25 letters are supportive. 【Time Display】 means the selective state. Display the system data and time in the surveillance window.

  • Page 54: Add Ipc

    INFINITE PLAY 【Channel】Choose the dome camera input channel. 【Protocol】Choose the corresponding dome protocol. (PELCOD as an example) 【Address】Set as the corresponding dome address. Default: 1.（Note：The address must be consistent with the dome address.） 【Baudrate】Choose the corresponding dome baud rate length. You can control the PTZ .

  • Page 55: System Time

    INFINITE PLAY 4.4.9 System Time: Link to “General” to set system time. Refer to 4.4.1General 4.4.10 Video standard: Link to “General” to set video standard. Refer to 4.4.1General. 4.4.11 Resolution: Link to “General” to set display resolution. Refer to 4.4.1General.

  • Page 56: Account

    INFINITE PLAY Picture 4.32 HDD Manage 4.5.2 Account The account is used to “Manage the user authority” . Picture 4.33 Account 【Modify User】Modify the existed user setting. 【Modify Password】Modify the user password. You can set 1-6 bit password. The blank ahead or behind the char string is invalid.

  • Page 57: Online User

    INFINITE PLAY Picture 4.34 Modify Password 【Add user】Add a user in the team and set the user authority. Enter the menu interface and input the user name and password. Choose the team and choose whether “cover using” the user. Cover using means that the account can be used by multiple users at the same time.

  • Page 58: Tv Adjust

    INFINITE PLAY Picture 4.38 Online User 4.5.4 TV adjust: Refer to chapter 3.5.5 . 4.5.5 Auto Maintain: The user can set the auto reboot time for daily maintenance. Because the switch /Hub or router may be hanged by the big video files sometimes, the auto maintain function can set up to reboot the NVR for a period of time to get smooth video files.

  • Page 59: Upgrade

    INFINITE PLAY Picture 4.40 Restore 4.5.7 Upgrade: Upgrade Picture 4.41 【 Upgrade】choose USB interface. 【Upgrade file】choose the file which needs to be upgraded. 4.5.8 Device Info: Provide device info like audio, alarm in/out etc and users can view easily. Picture 4.42 Device Info.

  • Page 60: Info

    INFINITE PLAY 4.6 Info: 4.6.1 LOG: Check the system log according to the set mode. Log information include: system operation, configuration operation, data management, alarm affair, recording operation, user management, file management and so on. Set the time section and click the click the search button.

  • Page 61: Entertainment

    INFINITE PLAY 4.7 Entertainment Click “Game” . Built-in “Tetris”. 4.8 Shut down system Refer to chapter 3.5.6.

  • Page 62: Faq And Maintenance

    INFINITE PLAY 5. FAQ 5.1 FAQ: If the problems are not listed, please contact the local service or call the HQ service. We are willing to offer the service. 1、 The NVR cannot power on normally. Possible reasons are as followed: The power supply is not correct.
  • Page 63 INFINITE PLAY Possible reasons are as followed: The program is not matched. Please update the program. The image brightness is all 0. Please restore the default setup. There is no video input signal or the signal is too weak. The channel protection or the screen protection is set.
  • Page 64 INFINITE PLAY The according channel is not connected with the video. 9、 The time is wrong. Possible reasons are as followed: Setting is wrong.. The battery is in bad connection or the voltage is too low. The oscillation is damaged.
  • Page 65 INFINITE PLAY Network connection failure. Network setting issues. Invalid password or user name. The CMS is not matched the NVR program version. 13、 The image is not clear or there is no image in network preview state or video file playback state.
  • Page 66 INFINITE PLAY When multiple transformers are connected, the power supply is not large enough. Please give each transformer individual power supply. The distance is too far. 17、 Alarm cannot be actived Possible reasons are as followed: The setting of the alarm is not correct.

  • Page 67: Maintenance

    INFINITE PLAY The DivX503Bundle.exe and ffdshow-2004 1012 .exe files must be installed in the windows 7 system or higher. 22、 I can not remember the advanced code or network code in the local menu operation. Please contact the local service or call the HQ service. We will offer the service according the machine type and the program edition.

  • Page 68: Appendix 1.Remote Controller Operation

    INFINITE PLAY Appendix 1.Remote controller operation （1） （2） （3） （4） (7） （8） （5） （6） Serial number Name Function Multi-window button Same function as Multi-window button in the front panel Numeric button Code input/number input/channel switch 【Esc】 Same function as【Esc】button in the front panel...

  • Page 69: Appendix 2.Mouse Operation

    INFINITE PLAY Appendix 2.Mouse operation *Take right hand as an example The mouse in USB connection is supported. Operation Function Double click the playback video to zoom in or out the screen Double left click Double click the channel to make it full screen display...

  • Page 70: Appendix 3.Hard Disk Capability Calculation

    INFINITE PLAY Appendix 3.Hard disk capability calculation: Make sure the hard disk installed in the NVR for the first time. Pay attention to the HDD cables connection. 1、 Hard disk capability There is no limit for recording machine. The maximum size for HDD is 3TB.

  • Page 71: Appendix 4.Mobile Connection

    INFINITE PLAY Appendix 4. Mobile Connection: 1.Software download: Android::Android devices can directly download the software “Super mEye” from google play .Or you can get it from the CD. Iphone: IOS devices can directly download the software “Super mEye”from app store.
  • Page 72 Via Monte Grappa, 25 31020 Villorba (TV) ITALY Tel. 0422 350680 Fax. 0422 446958 www.infiniteplay.com ZEALABS - ITALY...
