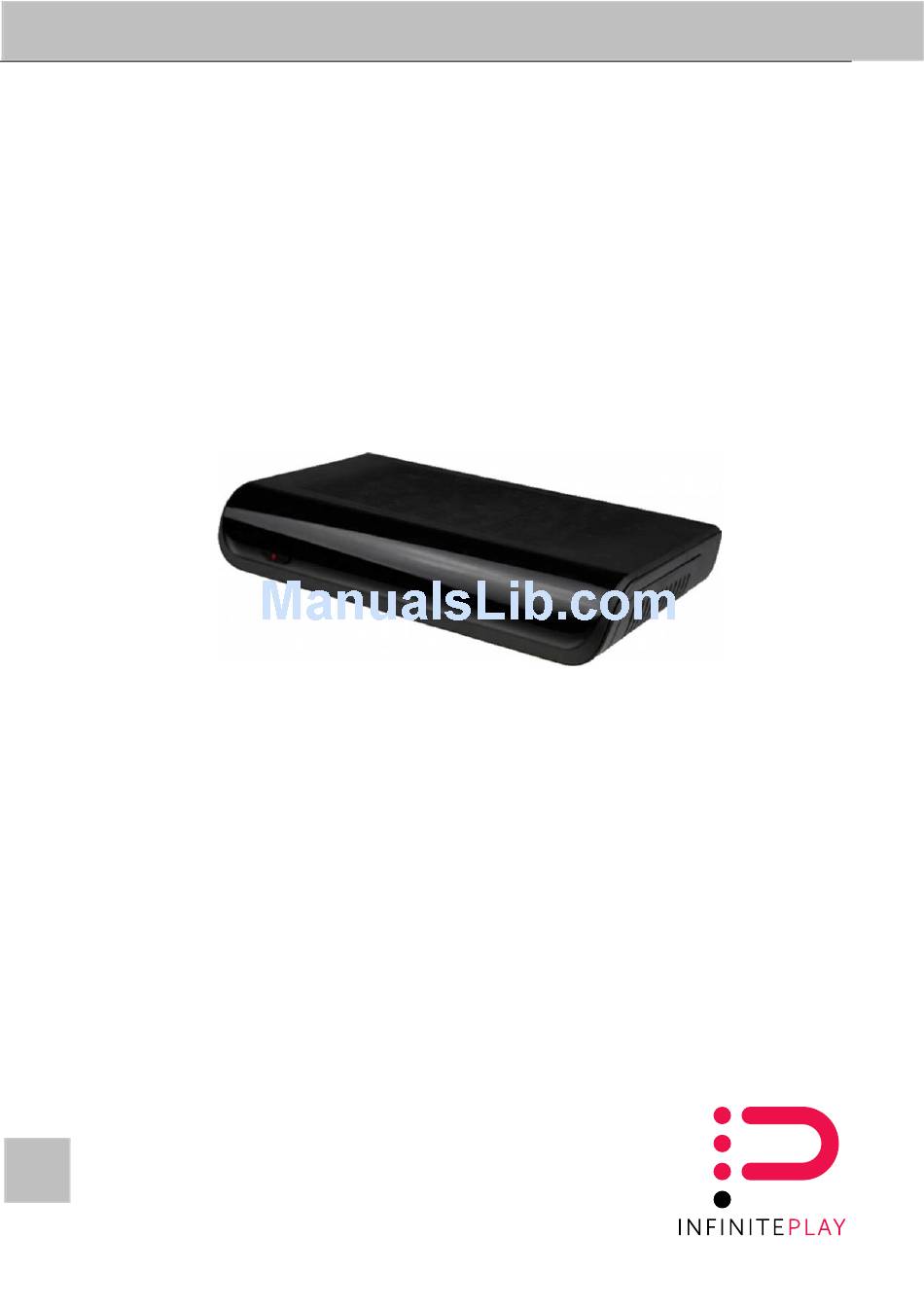

- Page 1 NVR User’s installation and operation Manual 4/8CH FullHD Network Video Recorder with integrated PoE switch TINF4.POE TINF8.POE...
- Page 2 INFINITE PLAY Preface Thank you for selecting our products. We will offer the best service for you wholeheartedly. This manual is suitable for NVR system. In this series, different product models' configuration will have a little difference, and it will work the difference between product function and operation.
-
Page 3: Table Of Contents
INFINITE PLAY Directory 1 Brief Introduction about the NVR......................5 1.1 Summarization..........................5 1.2 Application areas: .......................... 5 1.3 Products Features: ........................6 1.4 Main functions ..........................6 2. Installation Environment and introduction ....................7 2.1 Installation Environment and Cautions..................7 2.1.1 Notice for HDD installation. - Page 4 INFINITE PLAY 3.9.2 Network setting........................25 3.9.3 Device operation ....................... 25 3.9.4 Device information ......................25 3.10 Tool bar and right click menu..................... 26 Appendix 1 Instruction of Upgrade....................... 27 Appendix 2 About the plug and play instructions (in 7900 series)............27 Appendix 3 Web browser access instructions ..................
-
Page 5: Brief Introduction About The Nvr
INFINITE PLAY 1 Brief Introduction about the NVR 1.1 Summarization Network Video Recorder ( short of NVR) is a device receiving video/audio signal from IPC (IP camera), DVS(Digital video server)to realize all of the functions like video and audio acquisition and compression, storing, remote control, Multi-PTZ control and alarm, motion detection in a single board. -
Page 6: Products Features
INFINITE PLAY 1.3 Products Features: Embedded Network DVR is one of new series digital surveillance researching and developing independently. NVR series adopt embedded system to design, support connect IP cameras and can realtime preview, storage and playback on the image of the IP cameras and recordings. Meanwhile it also can do centralized management, centralized storage, high resolution output on multi-network equipment. -
Page 7: Installation Environment And Introduction
INFINITE PLAY 2. Installation Environment and introduction 2.1 Installation Environment and Cautions Installation environment: Normal working temperature is -10 ℃ ～55 ℃ ，Storage temperature is -10 ℃ ～65 ℃. Normal working humidity is 15%～85%. The equipment must keep horizontal either in installation or on using. -
Page 8: Open The Carton And Check For Accessories
INFINITE PLAY 2. Single hard disk partition should be higher than 32GB. Max volume have no limits. 3. Selection of total HDD volume, formula of HDD volume as follow： Total HDD volume= channels numbers × time of recording(hour) × HDD volume per hour(MB/hour) Eg. -
Page 9: Menu Operation Manual
INFINITE PLAY and saturation. In volume adjustment, click left mouse button to turn up and down the volume. In the bottom of the playback page, click the time-table (start time) could choose specific time to playback . Click “+” button , could amplify the time table (range is an hour) , click “-” could reduce the time table. - Page 10 INFINITE PLAY 3. Copy: copy the current channel setting to all or other channels. Settings → schedule: check the time effect. 5. Schedule, all/X week (options), All day recording/up to set 8 time period. 1. Linkage recording: Multiple choice. Motion Detection 2.
- Page 11 INFINITE PLAY Display Setting Set different cruise preview program and cruise duration timing. 1. Channel Number: display channel number of current online device. 2. Channel Name: Alterable (available to display on OSD menu). Channel Setting 3. Date Format: default Y/M/D.
-
Page 12: Functions Introduce
INFINITE PLAY (User setting) 2. Add/Delete/Modify. 3. Display user authority. Advanced settings Restore to default setting. (Restore default) Advanced settings Use USB flash to upgrade the system. (System upgrade) Disk Disk information Format disk, inquire capacity, group setting. Management 1. Manual Add: Type IP, user name and password. -
Page 13: Main Menu
INFINITE PLAY 3.1.3 Main Menu After user login system successfully, press “Menu” button in front panel or click icon by mouse in “Main Menu” item to enter main menu interface. 3.2 Playback Choose the playback button in right click menu or function menu.pop up video playback interface, as the pic below: 【Single channel playback】... -
Page 14: Recording Setting
INFINITE PLAY 3.4 Recording Setting 3.4.1 Recording Parameter very important recording parameter ,this is related to video playback effect and capacity of hard disk. After logged in, by “Recording Setting”->“Recording Parameter” to set the interface, at the right side: To choose the channel you want to set, it can be set at most by eight times every day (different type of recording).the recording time of One channel can be... -
Page 15: Timing Recording
INFINITE PLAY 3.4.3 Timing Recording System default to add video equipment is the timing recording of whole day.If you need to alter the recording time by sections,please choose the corresponding channel to alter.There are many types you can choose to set the timing recording,if you need to set the whole day ,as you can see as below. -
Page 16: Sensor Detection
INFINITE PLAY You can confirm if there has things moving in the channel image.If you want to record when things moving,you can set the motion detection Step 1:After login,open the interface by menu of “Main menu”->“Record Setting”, set the motion record time and pre-record,delay-record time. - Page 17 INFINITE PLAY Select a sensor, set the sensor arming time. Sensor can be linkage to the channel to record when alarm occurred, it is recommended that each sensor and the linkage video channel to be corresponding, easy to inquire a video data according to the channel.
-
Page 18: Alarm Output
INFINITE PLAY 2. Alarm output connections: Alarm output terminal is normally disconnected status, it will close when need to send alarm, but no voltage output. External speakers, lighting, alarms, and other require an external power supply to work normally. The alarm is usually with large power, it is best to use separate power supply, not use the power supply of the NVR. -
Page 19: Manual Alarm
INFINITE PLAY 3.5.5 Manual alarm After logging in, the “Main Menu”-> “Alarm Settings” -> “Manual Alarm”, or click the alarm icon button on toolbar to enter the manual alarm, as on the right: Local output, the preceding output list, select one all the way, click the trigger/Clear button, this way the presence or absence of alarm control, click All trigger/ clear all alarm output whether the alarm control. -
Page 20: Channel Settings
INFINITE PLAY according to the update cycle; 3. The NVR need for external network access privileges to the carry on the NTP. Sequence Settings Enter cruise setting page, could choose1/4/9/16 cut preview. The cruise time: 5-60 seconds. 3.6.2 Channel Settings After logging in, the “System Settings”... -
Page 21: Ptz Settings
INFINITE PLAY 3.6.3 PTZ settings 1. PTZ setting After logging in, the “System Settings” -> “PTZ Settings”, to enter the PTZ Setting interface, PTZ protocol, address code .(the PTZ address code and channel number is one-to-one as default, that is,... -
Page 22: Network Setting
INFINITE PLAY 3.6.4 Network setting Network setting: IPC-LAN and NET network card, can open simultaneously (except single net port), can support one network segment and cannot set the same IP. Port set: Port, http port, upgrade set range: 1024-65535, and cannot set same port0... -
Page 23: Disk Management
INFINITE PLAY 3.7 Disk management After login, “ Main menu ”-> “ Disk management”. You can see the disk type, total capacity, actual capacity, rest capacity, work status, format status. If the disk have not format, then format the dist. Can choose the group settings to let the dist work as some group. -
Page 24: Front-End Setting
INFINITE PLAY 3.9 Front-end setting 3.9.1 device add After login, “ Main menu”->“ Front-end setting”-> “ device add”. 1. Manual add Step 1: manual add, double click channel of the format, it will have as right menu: Step 2: type in device IP, password, set on the device decode ability, click add: Notice: preview strategy default is real-time good. -
Page 25: Network Setting
INFINITE PLAY 3.9.2 Network setting Display network configuration information for the connecting device of corresponding channel, Support IP address, gateway, subnet mask, DNS server, port, HTTP port setting. 3.9.3 Device operation After login, “main menu”->“front end setting”->“device operation”, can do upgrade and restart for connecting device. -
Page 26: Tool Bar And Right Click Menu
INFINITE PLAY 3.10 Tool bar and right click menu Tool bar is as below picture, from left to right:“main menu”, “login”, “alarm status”, “sequence status” and screen split screen, the middle position is “HDD status”, “time”, “temperature”, etc. the right position is hide button for hide the tool bar automatically.Display... -
Page 27: Appendix 1 Instruction Of Upgrade
INFINITE PLAY enable and default volume is the 100% 3.10.5 PTZ control Click PTZ button in right click menu and pop out PTZ control interface,you can set PTZ in this interface. 3.10.6 Manual record Click manual button in right click menu and pop out manual record interface,Select the channel which you want to set manual record. -
Page 28: Appendix 3 Web Browser Access Instructions
INFINITE PLAY Appendix 3 Web browser access instructions Note: Please set firewall rank for low or medium, and surf software or net assistant software, etc. Should be blocked or unloaded, otherwise the software may not run properly. Please guarantee to install DirectX 9.0 of Microsoft and confirm the nternet Explorer edition is 6.0 version or above. -
Page 29: Appendix 4 Nvr Q&A
INFINITE PLAY IP Address:116.30.141.49. 【2】Choosing “ transferring rule” at the Menu as showed Picture2.Respectively write down monitoring port:8101、 “HTTP” monitoring port:81as showed Picture3, write down IP address: 192.168.2.6 as showed picture 1, the choosing protocol “ALL” and work, then save. - Page 30 INFINITE PLAY will serve for you and solve questions. We suggest you write down all of your questions on paper to send us when you need to check couple of questions in order to avoid some problems to be left out. We will reply your questions ASAP.
- Page 31 INFINITE PLAY 03: How to make monitor display the best image? 03: (1) Please adjust camera. (2) Please adjust the monitor video parameter. (3) Please adjust the host device video parameter. 04: Why the video image twisted or cannot fill the whole screen? 04: (1) If have the twisted issue, please refer to monitor user guide.Please adjust it as “barrel-shape”,...
- Page 32 Via Monte Grappa, 25 31020 Villorba (TV) ITALY Tel. 0422 350680 Fax. 0422 446958 www.infiniteplay.com ZEALABS - ITALY...
