Summary of Contents for Infinite Play TINF6

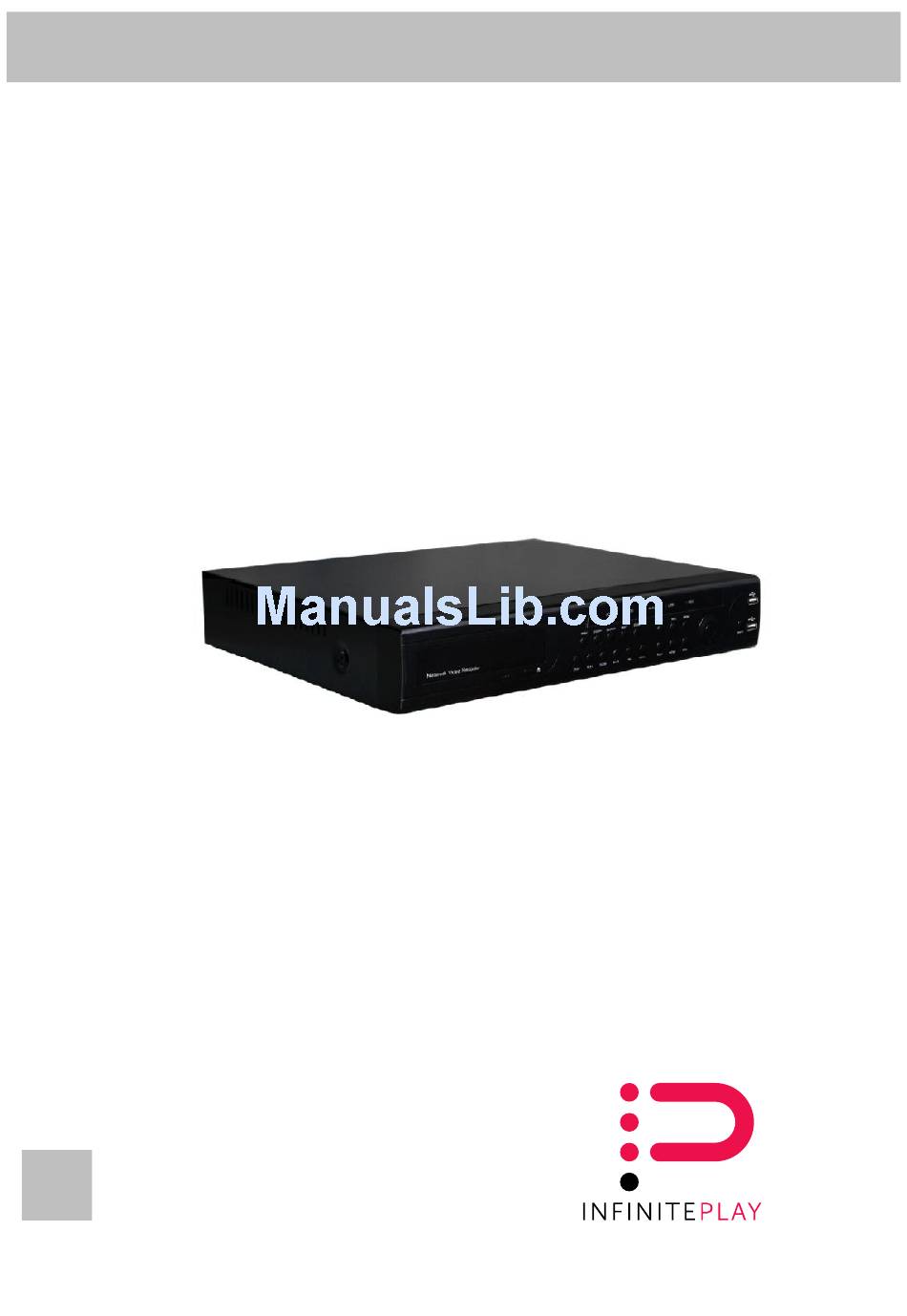

- Page 1 Quick Installation & Operation Guide 16CH fullHD Network Video Recorder TINF6...
- Page 2 INFINITE PLAY 1 HDD installation: 1 HDD installation: Please insert the HDD inside and crew on the bottom of NVR.. Make Please insert the HDD inside and crew on the bottom of NVR.. Make sure the power and cable connectors linked tightly with HDD Disk. Be sure the power and cable connectors linked tightly with HDD Disk.
-
Page 3: Ip Camera Setting
INFINITE PLAY 4 Add IP camera 4 Add IP camera Please Go into the OSD of NVR and choose the “ADD IPC”. If our Please Go into the OSD of NVR and choose the “ADD IPC”. If our priority camera like Zealabs IP camera, that will automatically being priority camera like Zealabs IP camera, that will automatically being searching and listed. - Page 4 INFINITE PLAY 7 Playback: User can choose the menu bar “ Playback” to playback the files. They can move the cursor on the time bar or use the time searching to playback the files.
- Page 5 INFINITE PLAY 8 How to Connect with third Party IP cameras : 8 How to Connect with third Party IP cameras : Step 1: Please check the IP address and Gateway of NVR in the same Step 1: Please check the IP address and Gateway of NVR in the same domain with IP cameras.
- Page 6 INFINITE PLAY 9 Recording time table calculation Recording time（hour）= overall capability（M） Capability in an hour（M/hour）*channel number The NVR introduces the H.264 compression technology. Its dynamic range is very large so the hard disk capability calculation is based on the estimation values of each channel creating files in an hour.
- Page 7 INFINITE PLAY Directive 2012/19/UE (WEEE) WARNING: This equipment must be fixed to the wall according to the The crossed-out wheelie bin symbol marked on the product installation instructions. indicates that the product must be assigned to a differentiated collection centre for electrical and electronic equipment or This leaflet must always be attached to the system returned to the dealer to purchase a new product.
- Page 8 Via Monte Grappa, 25 31020 Villorba (TV) ITALY Tel. 0422 350680 Fax. 0422 446958 www.infiniteplay.com ZEALABS - ITALY...
