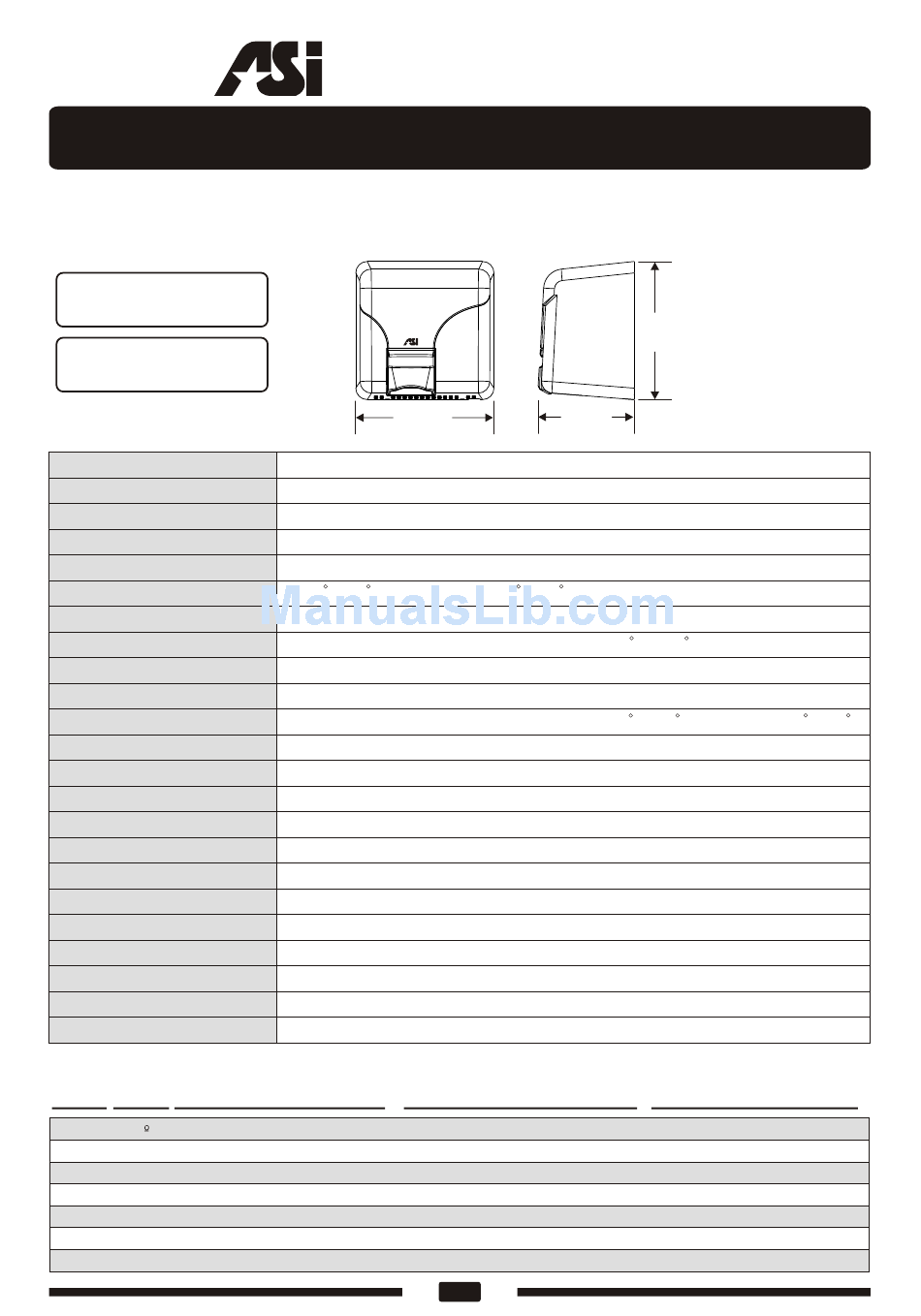

ASI 0141 Operating Instructions Manual

Hand Dryer
PLEASE CAREFULLY READ THROUGH THIS MANUAL BEFORE USING THE PRODUCT.
OBSERVING ALL SAFETY INFORMATION, WARNINGS AND CAUTIONS WILL PROTECT
YOURSELF AND OTHERS. PLEASE KEEP INSTRUCTIONS FOR FUTURE REFERENCE.
MODEL # 0141
MODEL # 0144

TECHNICAL SPECIFICATIONS

ITEM CATEGORY
Operating Voltage, 0141
Operating Voltage, 0144
Output Warm Air Volume
Output Air Speed
Output Warm Air Temp
Motor Type
Motor Thermal Protection
Heater Element, 0141
Heater Element, 0144
Heater Thermal Protection
Drying Time
Circuit Operation
Sensor Range
Timing Protection
Timing Duration
Output Air Nozzle
Sound Level
Cover Type
Cover Finish
Net Weight
Shipping Weight
Unit Size
INPUT MOD
VAC N
Vac Inrush A(W)
115 0141
115 1.2 (138)
120 0141
120 1.25 (150)
208 0144 208 0.64 (133)
220 0144
220 0.68 (150)
230 0144
230 0.72 (166)
240 0144 240 0.75 (180)
06092857
AMERICAN SPECIALTIES, INC.
441 Saw Mill River Road, Yonkers, NY 10701 (914) 476-9000
Operating Instructions and Parts Manual
Surface-mounted Automatic hand dryer
9-7/16"
(240mm)
100-120 Vac, 50/60 Hz, 15.8A, 1.9 kW MAX
208-240 Vac, 50/60 Hz, 7.9/9.2A, 2.21 kW MAX
142.4 CFM {241.9 m /h}
52.5 ft/s {35.8 mi/hr} {16 m/s [57.6 km/hr]}
127 F {53 C} at ambient T = 77 F {25 C}
1/8 HP 100W , 3150 rpm, Brushless Type, Dual Ball Bearings { }
Auto Resetting Thermostat turns unit off at 221 F, {105 C}
1.7 kW @120Vac,
1.7 kW @ 220Vac, Nichrome 28.5 W
Auto Resetting Thermostat turns unit off at 189 F, {87 C}, Resets at 122 F {50 C}
Less than 30 seconds
Infrared Automatic, self adjusting
2" to 10" [51 mm to 254 mm], adjustable; standard 7"±25/32" [178 mm ± 20 mm]
2 minutes auto shut off
2 seconds delayed turn off after last sensor read
Heavy-Duty Chrome plated die-cast Zinc, Tilt-Flip type with internal grille
63 ± 3 dB-A
Aluminum, Die Cast, 7/64" (.109"), {2.8mm} thick
Epoxy Enamel baked-on coating
8.4 lbs [3.8 kg]
10.6 lbs [4.8kg]
9-7/16" W x 9-41/64" H x 6-3/8" D [240 mm x 245 mm x 162mm]
Motor
Operating A (W) Vac
0.80 (92) 115
0.83 (100) 120
0.43 (89) 208
0.45 (100) 220
0.48 (110) 230
0.5 (120) 240
6-3/8"
(162mm)
PERFORMANCE DATA
3
Nichrome 8.5W
Heater
Inrush A(W) Operating A(W)
13.6 (1564) 13.6 (1564)
14.2 (1704) 14.2 (1704)
7.3 (1518) 7.3 (1518)
7.7 (1694) 7.7 (1694)
8.0 (1840) 8.0 (1840)
8.4 (2016) 8.4 (2016)
1
9-41/64"
(245mm)
Total
Inrush A(W) Operating A(W)
14.8 (1702) 14.4 (1656)
15.8 (1896) 15.0 (1800)
7.9 (1643) 7.7 (1602)
8.4 (1848) 8.2 (1804)
8.7 (2001) 8.5 (1955)
9.2 (2208) 8.9 (2136)
www.americanspecialties.com
