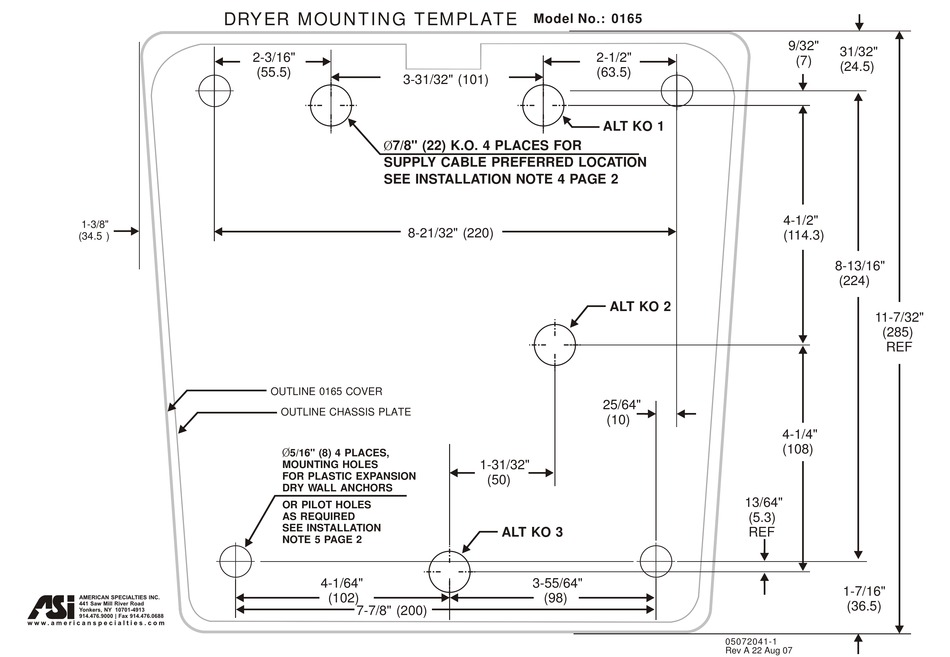

DRYER MOUNTING TEMPLATE
2-3/16"
(55.5)
1-3/8"
(34.5 )
3-31/32" (101)
¯7/8" (22) K.O.
SUPPLY CABLE PREFERRED LOCATION
SEE INSTALLATION NOTE 4 PAGE 2
8-21/32" (220)
OUTLINE 0165 COVER
OUTLINE CHASSIS PLATE
¯
5/16" (8) 4 PLACES,
MOUNTING HOLES
FOR PLASTIC EXPANSION
DRY WALL ANCHORS
OR PILOT HOLES
AS REQUIRED
SEE INSTALLATION
NOTE 5 PAGE 2
4-1/64"
(102)
7-7/8" (200)
Model No.: 0165
2-1/2"
(63.5)
ALT KO 1
4 PLACES
FOR
ALT KO 2
25/64"
(10)
1-31/32"
(50)
ALT KO 3
3-55/64"
(98)
9/32"
31/32"
(7)
(24.5)
4-1/2"
(114.3)
8-13/16"
(224)
11-7/32"
(285)
REF
4-1/4"
(108)
13/64"
(5.3)
REF
1-7/16"
(36.5)
05072041-1
Rev A 22 Aug 07
