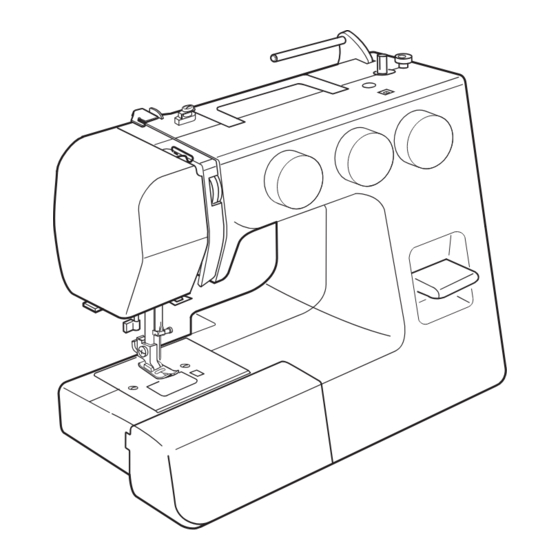

SERVICE MANUAL
AND
PARTS LIST
MODEL: E1019

Advertisement

loading

Related Manuals for Janome E1019

Summary of Contents for Janome E1019

  • Page 1 SERVICE MANUAL PARTS LIST MODEL: E1019...
  • Page 2 MODEL: E1019 PARTS LIST 26 27...
  • Page 3 MODEL: E1019 PARTS LIST PARTS DESCRIPTION 508603008 Upper shaft (unit) 000111201 Hexagonal socket screw 4x4 000112800 Hexagonal socket screw 4x6 000036201 Washer FT80 508120006 Shaft fixing metal 823110010 Felt 820166001 Lower shaft ring 508019001 Worm 508020005 Ring 000111108 Hexagonal socket screw 4x6...
  • Page 4 MODEL: E1019 PARTS LIST...
  • Page 5 MODEL: E1019 PARTS LIST PARTS DESCRIPTION 508640007 Presser bar base plate (unit) 508036004 Presser bar base plate 508037005 Needle drop adjusting plate 000101507 Setscrew 3.5x5 508040001 Thread tension release lever 000013903 Snap ring CS-5 735029004 Presser foot lifter 000001609 Snap ring E-5...
  • Page 6 MODEL: E1019 PARTS LIST...

  • Page 7: Parts List

    MODEL: E1019 PARTS LIST PARTS DESCRIPTION 508636103 Hook race (whole unit) 508650000 Hook race (unit) 508611102 Lower shaft (unit) 508058002 Lower shaft 508021006 Upper shaft gear 000004200 Knock pin 3x18 000038502 Washer 508054101 Shaft fixing metal 820166001 Lower shaft ring...
  • Page 8 MODEL: E1019 PARTS LIST...
  • Page 9 MODEL: E1019 PARTS LIST PARTS DESCRIPTION 627569106 Bobbin holder (unit) 102261000 Bobbin 508612000 Needle plate (unit) 508033104 Needle plate 508034002 Support needle plate 000163703 Setscrew 2x3.5 502015009 Spring 000015503 Snap ring CS-2.4 502016000 Hook cover plate release button 502202005 Supporter plate 000130206 Setscrew 1.7x2.5 (B)
  • Page 10 MODEL: E1019 PARTS LIST...
  • Page 11 MODEL: E1019 PARTS LIST PARTS DESCRIPTION 508642009 Cam block (unit) 737011009 Index spring 000103808 Setscrew 3x5 508637001 SS rod (unit) 508086009 SS rod 735074004 Adjusting screw 735076006 SS rod block 000071013 Washer 4 000002105 Snap ring E-3 000160102 Adjustable lock nut 4...
  • Page 12 MODEL: E1019 PARTS LIST...
  • Page 13 MODEL: E1019 PARTS LIST PARTS DESCRIPTION 508643099 Front cover (unit) 508128A04 Front cover 639075004 Thread guide 508620001 Bobbin winder (unit) 508507001 Bobbin winder arm (unit) 508111004 Clutch lever 000120203 Setscrew 3x8 (B) 000109103 Setscrew 4x12 508030008 Spring 000013903 Snap ring CS-5...
  • Page 14 MODEL: E1019 PARTS LIST...
  • Page 15 MODEL: E1019 PARTS LIST PARTS DESCRIPTION 508618051 Rear cover (unit) 508027A02 Rear cover 508028003 Carrying handle 660077002 Felt 660618001 Threader guide plate (unit) 000107307 Setscrew 3x6 (B) 730501011 Threader guide plate (unit) 000160102 Adjustable lock nut 4 525010005 Rubber foot...
  • Page 16 MODEL: E1019 PARTS LIST...
  • Page 17 MODEL: E1019 PARTS LIST PARTS DESCRIPTION 508870101 Accessory set 102261000 Bobbin 639804000 Needle set (unit) 647808009 Seam ripper 653802002 Screwdriver 822020503 Large spool holder 822019509 Small spool holder 625031500 Additional spool pin 508803000 Buttonhole foot 829801002 Zipper foot 820817015 Blind hem foot...
