Avue AVG19WBV-2D User Manual

19” and 22” lcd monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

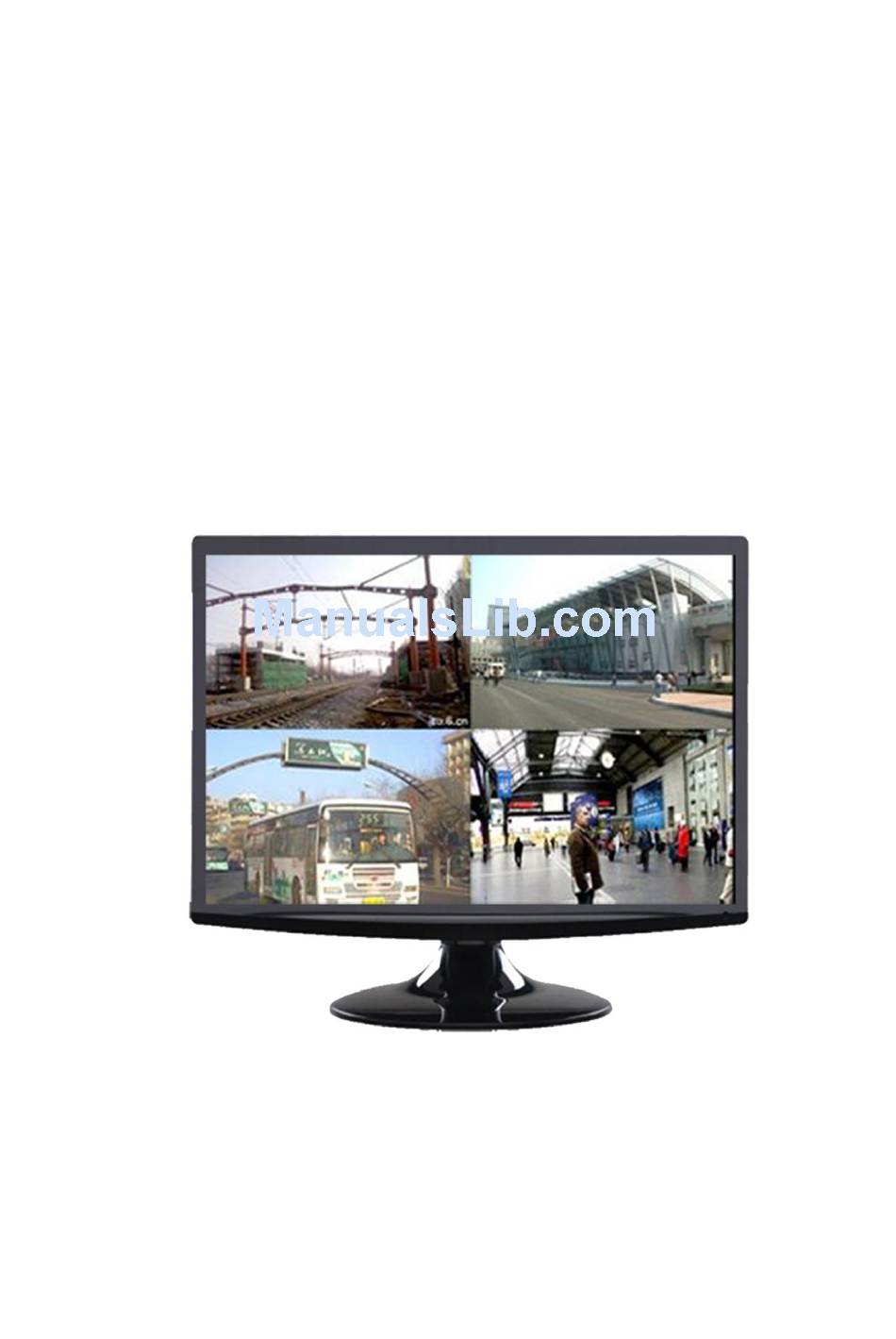

User Manual
19" and 22" LCD Monitor
LCD VIDEO MONITOR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVG19WBV-2D and is the answer not in the manual?

Questions and answers

Related Manuals for Avue AVG19WBV-2D

Summary of Contents for Avue AVG19WBV-2D

  • Page 1 User Manual 19” and 22” LCD Monitor LCD VIDEO MONITOR...
  • Page 2 SAFETY INSTRUCTIONS…………………………………………………………………….2-3 CAUTION ………………………………………..……………………………………………..4 FCC RF INTERFERENCE STATEMENT …………………………………………………...5 CONNECTING WITH EXTERNAL EQUIPMENT………………………………………….. 6 CONTROLS AND FUNCTIONS…………………………………………………….……..7-16 MOUNTING GUIDE …………………………………………………………….……..…….. 17 D-SUB CONNECTOR PIN ASSIGNMENTS ……………………………………………….18 POWER MANAGEMENT……………………………………………………………………..19 SPECIFICATIONS………………………………………………………………………..……20 1 …………………………………………………………………………… INSTRUCTION MANUAL...
  • Page 3 1. Read all of these instructions. 2. Save these instructions for later use. 3. Follow all warnings and instructions in this manual and on the product. 4. Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
  • Page 4 14. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power cord or plug is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D.
  • Page 5 ▶ NEVER REMOVE THE BACK COVER Removal of the back cover should be carried out only by qualified personnel. ▶ DO NOT USE IN HOSTILE ENVIRONMENTS To prevent electrical shock or a fire hazard, do not expose the unit to rain or moisture. This unit is designed to be used in the office or home.
  • Page 6 NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 7 Bottom and Side Panel Control Back View of Monitor A. Connector Panel 1. Audio In 2. Audio Out 3. BNC Out 4. BNC In 5. VGA INSTRUCTION MANUAL…………………………………………………………………………… 6...
  • Page 8 B. CONTROL KEYS/BUTTONS Buttons are located on the back of the monitor on the right side of the Bezel. 1. Menu/Source: Opens the OSD and steps down on the OSD. Also, the MENU button selects either the VGA or BNC input after the EXIT button is pushed) and then press the MENU button to Select 2.

  • Page 9: Color Menu

    1. OSD setup under BNC input mode A. COLOR MENU Press the MENU button to bring the menu on screen, and then Up/ Down buttons to move left and right across the menu selections to highlight the COLOR menu. Press the Menu (Source) button to enter the (highlighted) COLOR sub menu.

  • Page 10: Audio Menu

    INSTRUCTION MANUAL…………………………………………………………………………… 8 1. OSD setup under BNC input mode (continued) B. AUDIO MENU Press the MENU button to bring the menu on screen, and then Up / Down buttons to move left and right across the menu selections to highlight the AUDIO menu.
  • Page 11 9 …………………………………………………………………………… INSTRUCTION MANUAL 1. OSD setup under BNC input mode (continued) C. OSD MENU Press the MENU button to bring the menu on screen, and then Up / Down buttons to move left and right across the menu selections to highlight the OSD menu.
  • Page 12 INSTRUCTION MANUAL…………………………………………………………………………… 10 1. OSD setup under BNC input mode (continued) D. MISC Press the MENU button to bring the menu on screen, and then Up / Down buttons to move left and right across the menu selections to highlight the MISC menu. Press the Menu (Source) button to enter the (highlighted) MISC sub menu.

  • Page 13: Osd Setup Under Vga Input Mode

    11 …………………………………………………………………………… INSTRUCTION MANUAL 2. OSD setup under VGA input mode A. COLOR MENU Press the MENU button to bring the menu on screen, and then Up / Down buttons to move left and right across the menu selections to highlight the COLOR menu.
  • Page 14 INSTRUCTION MANUAL…………………………………………………………………………… 12 2. OSD setup under VGA input mode (continued) B: IMAGE MENU Press the MENU button to bring the menu on screen, and then Up / Down buttons to move left and right across the menu selections to highlight the IMAGE menu.
  • Page 15 Clock: If the clock setting is not exactly the same as the DVR or computer, you may observe periodic vertical bars of video noise on your image. These noise bars are usually adjusted out when an Auto Adjust is performed. If the noise bars are still present, this setting can be adjusted manually.
  • Page 16 INSTRUCTION MANUAL…………………………………………………………………………… 14 2. OSD setup under VGA input mode (continued) D. OSD MENU Press the MENU button to bring the menu on screen, and then Up / Down buttons to move left and right across the menu selections to highlight the OSD menu.
  • Page 17 Adjusts the OSD Menu’s Horizontal Position. H. Position: V. Position: Adjusts the OSD Menu’s Vertical Position. OSD Timer: The OSD Menu closes automatically after a set sleep time (between 1 and 60 seconds) OSD Blending: Adjusts the brightness of the OSD Menu. Zoom: Adjusts how much the OSD Menu is zoomed in.
  • Page 18 Factory Reset: Reset all settings back to default factory settings. Signal Source: Choose between a BNC input or a VGA input source. INSTRUCTION MANUAL…………………………………………………………………………… 16 Wall or Other Mounting with VESA Standard CAUTION : The wall mount must bear a minimum of five times the monitor’s net weight. To mount your MONITOR to the wall or another surface, you need to purchase a VESA wall mount.

  • Page 19: Pin Assignments

    1. Before mounting the monitor, remove the base riser (vertical portion of the base) by removing the two screws at the top with a screwdriver. Then the base and the riser can be removed. In order to prevent losing the two screws, we suggest replacing the screws in their original holes. 2.

  • Page 20: Power Consumption

    2. Power Cord 1. Quick Installation 3. VGA Cable Guide 4. User's Manual (available through re- saler) INSTRUCTION MANUAL…………………………………………………………………………… 18 POWER CONSUMPTION :<20W LED INDICATOR The power management feature of the monitor is comprised of three stages: On (Green Light), No Signal (Flashing Green Light), and Off (No Light).
  • Page 21 19 …………………………………………………………………………… INSTRUCTION MANUAL Model 19” LCD Monitor 22” LCD Monitor Aspect Ratio 16:9 Resolution (H x V) 1360 x 768 1920 x 1080 Colors 16.7M Viewing Angle H: 170º V: 170º Viewing Lines 420 TV Lines Contrast Ratio 10000:1 (DCR) Response Time 2D Comb Filter with De- interlace...
  • Page 22 Stand Plastic Bezel Plastic OSD Language English, French, Korean and Simplified Chinese Power Consumption <20W <30W Power Supply AC110~240V, 50/60 Hz Power cord, Audio cable, Accessories VGA Cable and User’s guide 19.6” x 17.8” x 7.5” 22.3” x 18.9” x 7.5" Packaging (L x D x W) 498mm x 453mm x 191.6mm 567mm x 482mm x 191.6mm...

This manual is also suitable for:

Avg22wbv-2d
