Dry-Lam 27STA Instruction Manual

School & office laminator (27"120v)
Hide thumbs
Table of Contents

Advertisement

Quick Links

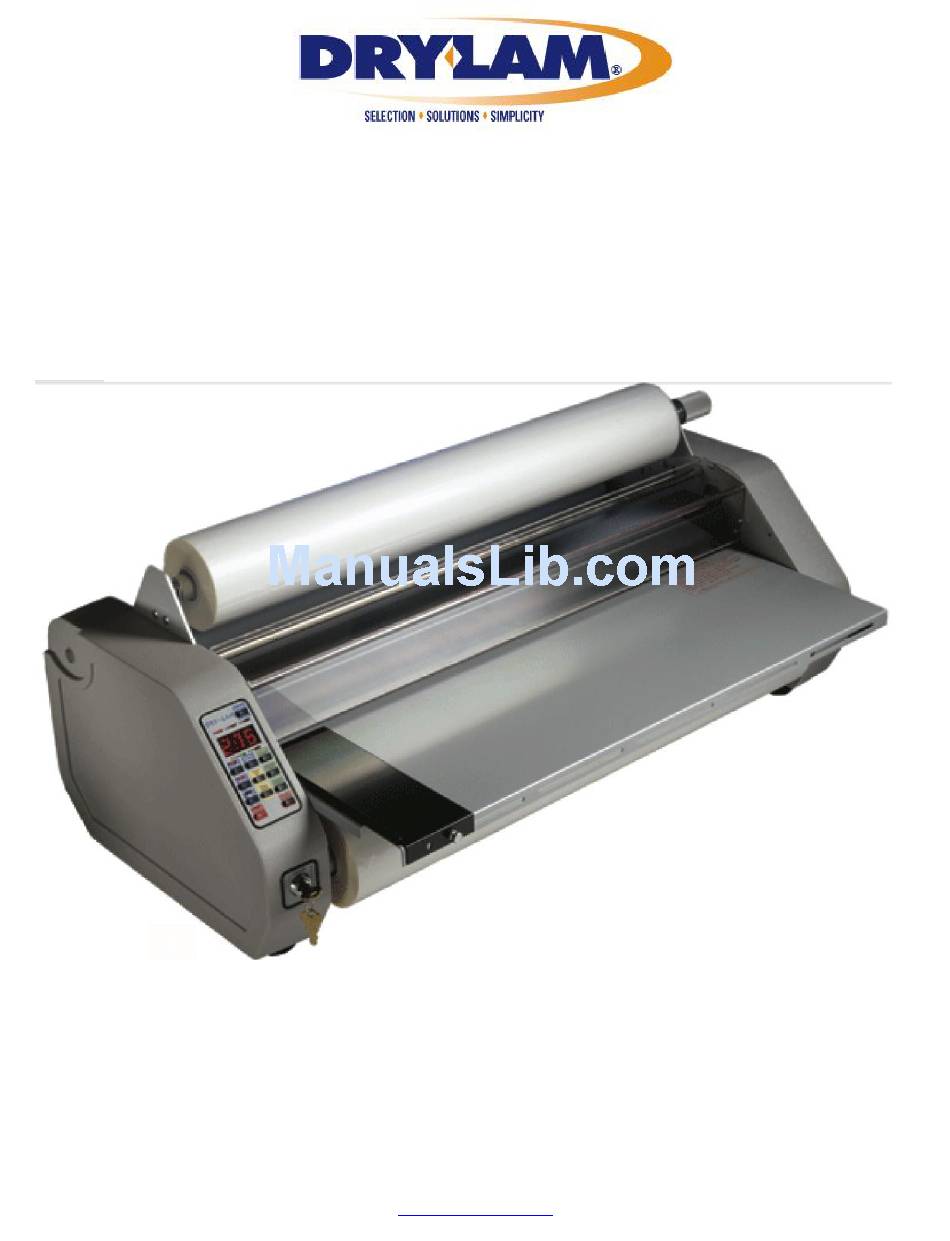

DryLam School & Office Laminator
Model 27STA (27"120V)
Instruction Manual
Revised 1/20/14, 1/28/14, 2/18/14, 3/4/14, 3/13/15 Brian Jennett
th
23220 W. 84
St., Shawnee, KS 66227
Phone: (888) 633-1973
Brian Jennett- Tech-Line/Service Manager ext 8575
http://www.DryLam.com
27STA Instruction manual.docx Page 1 of 24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 27STA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dry-Lam 27STA

Summary of Contents for Dry-Lam 27STA

  • Page 1 DryLam School & Office Laminator Model 27STA (27"120V) Instruction Manual Revised 1/20/14, 1/28/14, 2/18/14, 3/4/14, 3/13/15 Brian Jennett 23220 W. 84 St., Shawnee, KS 66227 Phone: (888) 633-1973 Brian Jennett- Tech-Line/Service Manager ext 8575 http://www.DryLam.com 27STA Instruction manual.docx Page 1 of 24...

  • Page 2: Table Of Contents

    OPTIONS ....................................20 FOOTSWITCH ..................................20 SLITTER KIT ..................................21 WIRING DIAGRAM ................................. 23 EQUIPMENT WARRANTY............................... 24 23220 W. 84 St., Shawnee, KS 66227 Phone: (888) 633-1973 Brian Jennett- Tech-Line/Service Manager ext 8575 http://www.DryLam.com 27STA Instruction manual.docx Page 2 of 24...

  • Page 3: 27Sta Specifications

    • This unit should be situated away from heat sources such as radiators, heat registers, stoves, etc. 23220 W. 84 St., Shawnee, KS 66227 Phone: (888) 633-1973 Brian Jennett- Tech-Line/Service Manager ext 8575 http://www.DryLam.com 27STA Instruction manual.docx Page 3 of 24...
  • Page 4 It is not a Technical Service manual. For technical assistance beyond what this manual provides, contact the DryLam Tech-Line at the email 23220 W. 84 St., Shawnee, KS 66227 Phone: (888) 633-1973 Brian Jennett- Tech-Line/Service Manager ext 8575 http://www.DryLam.com 27STA Instruction manual.docx Page 4 of 24...
  • Page 5 DryLam, LLC 23220 West 84 Street Shawnee, KS 66227 www.drylam.com support@drylam.com Phone (888) 633-1973 Tech-Line/Service- Ext 8575 23220 W. 84 St., Shawnee, KS 66227 Phone: (888) 633-1973 Brian Jennett- Tech-Line/Service Manager ext 8575 http://www.DryLam.com 27STA Instruction manual.docx Page 5 of 24...
  • Page 6 Notes RECORD SERIAL NUMBER HERE (LOCATED ON REAR PANEL OF MACHINE): 23220 W. 84 St., Shawnee, KS 66227 Phone: (888) 633-1973 Brian Jennett- Tech-Line/Service Manager ext 8575 http://www.DryLam.com 27STA Instruction manual.docx Page 6 of 24...

  • Page 7: Introduction

    The DryLam 27STA Laminator, with variable speed and reverse is a reliable, easy-to-use professional laminator designed to laminate a variety of materials using 25"or 27" laminating film. The 27STA is capable of lamination from 1 to 9 feet per minute and can be reversed by the push of a button.
  • Page 8 Key switch (V) prevents unauthorized usage by preventing the motor from running. 23220 W. 84 St., Shawnee, KS 66227 Phone: (888) 633-1973 Brian Jennett- Tech-Line/Service Manager ext 8575 http://www.DryLam.com 27STA Instruction manual.docx Page 8 of 24...

  • Page 9: Unpacking And Setup

    Laminating film is available in a variety of different lengths, qualities, widths and thicknesses. The DryLam 27STA Laminator is designed to use 1.5 mil (#150), and 3 mil (#300), thick films. OPERATING Control Panel The control panel is located on the left side of the laminator.
  • Page 10 This counter will appear on the display whenever the feet indicator light is on. This 23220 W. 84 St., Shawnee, KS 66227 Phone: (888) 633-1973 Brian Jennett- Tech-Line/Service Manager ext 8575 http://www.DryLam.com 27STA Instruction manual.docx Page 10 of 24...

  • Page 11: Additional Features

    Remove and discard the old blade. Re-install cutter back and screw. Caution: Do not over tighten screw. 23220 W. 84 St., Shawnee, KS 66227 Phone: (888) 633-1973 Brian Jennett- Tech-Line/Service Manager ext 8575 http://www.DryLam.com 27STA Instruction manual.docx Page 11 of 24...

  • Page 12: Loading Film

    23220 W. 84 St., Shawnee, KS 66227 Phone: (888) 633-1973 Brian Jennett- Tech-Line/Service Manager ext 8575 http://www.DryLam.com 27STA Instruction manual.docx Page 12 of 24...

  • Page 13: Threading Procedure

    To do so, hold the STOP/REVERSE button down. The motor will reverse and the film piece will exit the front. 23220 W. 84 St., Shawnee, KS 66227 Phone: (888) 633-1973 Brian Jennett- Tech-Line/Service Manager ext 8575 http://www.DryLam.com 27STA Instruction manual.docx Page 13 of 24...
  • Page 14 Replace feed tray and heat guard. 23220 W. 84 St., Shawnee, KS 66227 Phone: (888) 633-1973 Brian Jennett- Tech-Line/Service Manager ext 8575 http://www.DryLam.com 27STA Instruction manual.docx Page 14 of 24...
  • Page 15 Multiple documents can be run successively if desired and cut at a later time. 23220 W. 84 St., Shawnee, KS 66227 Phone: (888) 633-1973 Brian Jennett- Tech-Line/Service Manager ext 8575 http://www.DryLam.com 27STA Instruction manual.docx Page 15 of 24...

  • Page 16: Tension Adjustment

    Note: Make sure the black disks are flat against the side panel. They should be rotating, both top and bottom, while film is feeding. 23220 W. 84 St., Shawnee, KS 66227 Phone: (888) 633-1973 Brian Jennett- Tech-Line/Service Manager ext 8575 http://www.DryLam.com 27STA Instruction manual.docx Page 16 of 24...

  • Page 17: Maintaining The Drylam Laminator

    (Isopropyl) alcohol and a quality cloth will do an adequate job. It is highly recommended to use DryLam’s Maintenance Kit (product code 01300) after cleaning. 23220 W. 84 St., Shawnee, KS 66227 Phone: (888) 633-1973 Brian Jennett- Tech-Line/Service Manager ext 8575 http://www.DryLam.com 27STA Instruction manual.docx Page 17 of 24...

  • Page 18: Troubleshooting Guide

    TROUBLESHOOTING GUIDE 23220 W. 84 St., Shawnee, KS 66227 Phone: (888) 633-1973 Brian Jennett- Tech-Line/Service Manager ext 8575 http://www.DryLam.com 27STA Instruction manual.docx Page 18 of 24...

  • Page 19: Removing A "Wrap-Around

    “wrap- around” will easily unwrap. Tighten all the set screws and rethread the film. 23220 W. 84 St., Shawnee, KS 66227 Phone: (888) 633-1973 Brian Jennett- Tech-Line/Service Manager ext 8575 http://www.DryLam.com 27STA Instruction manual.docx Page 19 of 24...

  • Page 20: Options

    Plug the footswitch into the plug on the rear of the machine. Motor operation is now started and stopped by depressing the footswitch. 23220 W. 84 St., Shawnee, KS 66227 Phone: (888) 633-1973 Brian Jennett- Tech-Line/Service Manager ext 8575 http://www.DryLam.com 27STA Instruction manual.docx Page 20 of 24...

  • Page 21: Slitter Kit

    3) Take the slitter bar and slide on one locking block, both slitters, and then the other locking 23220 W. 84 St., Shawnee, KS 66227 Phone: (888) 633-1973 Brian Jennett- Tech-Line/Service Manager ext 8575 http://www.DryLam.com 27STA Instruction manual.docx Page 21 of 24...
  • Page 22 NOTE: When pressing the slitters through the laminating film, try cutting a slot in the film with a utility knife first. 23220 W. 84 St., Shawnee, KS 66227 Phone: (888) 633-1973 Brian Jennett- Tech-Line/Service Manager ext 8575 http://www.DryLam.com 27STA Instruction manual.docx Page 22 of 24...

  • Page 23: Wiring Diagram

    WIRING DIAGRAM 23220 W. 84 St., Shawnee, KS 66227 Phone: (888) 633-1973 Brian Jennett- Tech-Line/Service Manager ext 8575 http://www.DryLam.com 27STA Instruction manual.docx Page 23 of 24...

  • Page 24: Equipment Warranty

    WARRANTY SHALL APPLY ONLY WITHIN THE BOUNDARIES OF THE CONTINENTAL UNITED STATES. DryLam LLC Shawnee, KS DryLam 652755 · Rev. 3b 11120/08 23220 W. 84 St., Shawnee, KS 66227 Phone: (888) 633-1973 Brian Jennett- Tech-Line/Service Manager ext 8575 http://www.DryLam.com 27STA Instruction manual.docx Page 24 of 24...
