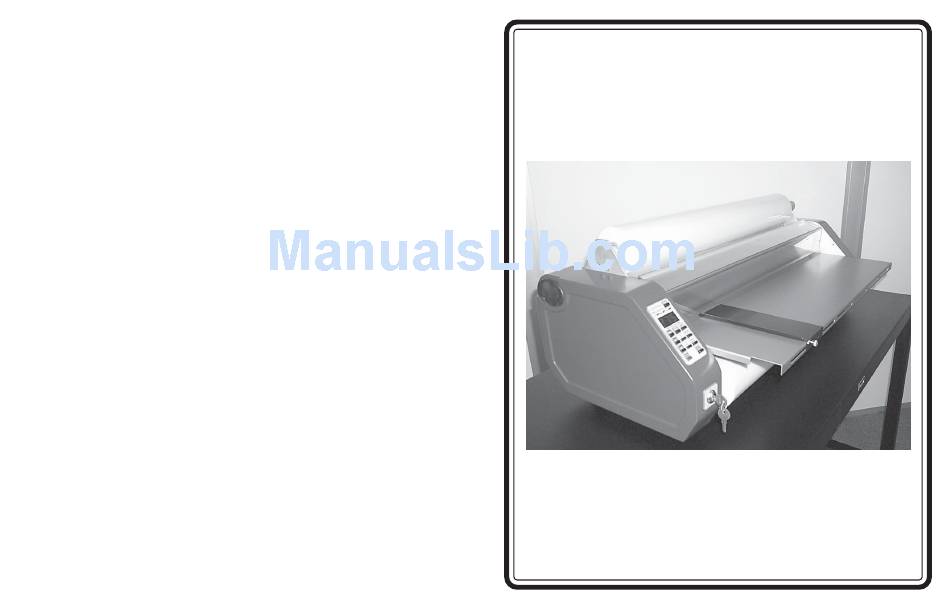

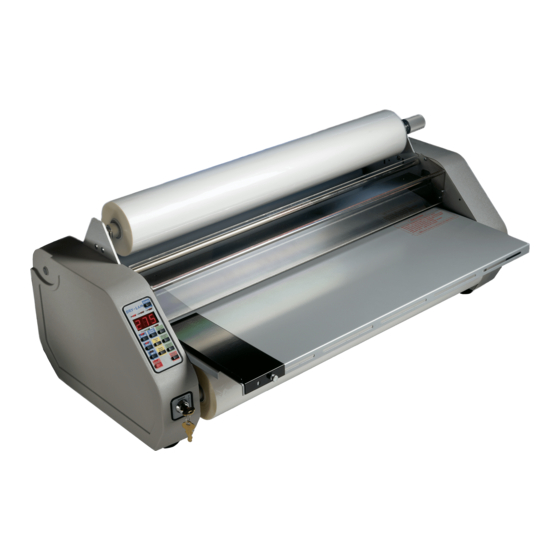

- Page 1 Dry-Lam School & Office Laminators 27"(120V) Instruction Manual Dry-Lam 652755 - Rev. 3b 11/20/08...
-
Page 2: Equipment Warranty
When necessary, purchaser shall properly pack and return the unit to the nearest Dry-Lam Service Center, freight and insurance prepaid. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED INCLUDING THE WARRAN- •... - Page 3 Important Information slitters true. (See Figure 3) SaveYour Carton! Dry-Lam ships laminators in special cartons which protect them from damage. Please store your cartons in case your laminator should ever require servicing.
- Page 4 Appendix C Installing the Slitter Kit A slitter kit ,(item #202005 25" kit),(item # 202000 27" kit) may be obtained from an Autho- rized Dry-Lam Reseller. Before installation, please check contents of your kit. Unplug the laminator prior to installation.
- Page 5 Dry-Lam Laminator Shut the machine off! Dry-Lam Laminators have set screws at both ends of each laminating and pull roller. Loosen all four set screws on the pull rollers. Cut the plastic between the laminating and Instruction Manual pull rollers, grab the loose end and pull. The rollers will rotate freely on the roll shafts and the “wrap- around”...
- Page 6 Dry-Lam Laminators, with variable speed and reverse are reliable, B. Specific Troubleshooting Guide easy-to-use professional laminators designed to laminate a variety of materials using up to 25",or 27" laminating film. All models are capable of lamination from 1 to 9 feet per minute and can be reversed by the push of a button.
- Page 7 V. Maintaining the Dry-Lam Laminator A. Care and Cleaning In the normal course of operating the Dry-Lam Laminator, dirt and adhesive will accumulate on the heat shoes and rubber rollers (Laminating produces static electricity which attracts airborne dust and dirt). Regular inspection and cleaning will assure that this does not become a problem.
- Page 8 Note: As the diameter of the film roll decreases, tension should be reduced. I. Unpacking To increase tension, turn the adjusting knob clockwise. To decrease tension, turn the knob counterclockwise. If the tension is not equal top and bottom, the laminated product will curl. If Remove the laminator from its box by grasping the housings and pulling up.
- Page 9 D. Laminating temperature set point. This is the temperature that the machine will reach and hold. The temperature can be increased or decreased in 1° increments by pressing and releasing the up or down button. After the machine is loaded with film (see B. To rapidly increase or decrease the temperature, press and hold the button.
- Page 10 Cooling Fans (Not Shown) C. Threading the Film Remove the feed tray and the heatguard. The machine may be equipped with cooling fans (fans are standard on 240V machines). These Thread the film as shown in the figure on the can be operated by turning the keyswitch to the "unlock w/fans"...
- Page 12 Dry-Lam 25STA 707449 Feed Table, 25” AV 600711 Screw, 10-32X1.5 SHC 601345 Screw #8-32 x 1/2” 707062 Idler Roll Dowels 707284 Left Feed Guide, Black Powder 604815 Washer, #8 Ext Star Lock 603340 Nut, 8-32 Tinnerman 601115 Screw, 8-32x1/4 Pan Head 707941 Heat Guard 25”, MK2...
- Page 13 Notes Dry-Lam 27STA 707905 Feed Table, ARL, 27” 600711 Screw, 10-32X1.5 SHC 601345 Screw #8-32 x 1/2” 707062 Idler Roll Dowels 707284 Left Feed Guide, Black Powder 604815 Washer, #8 Ext Star Lock 603340 Nut, 8-32 Tinnerman 601115 Screw, 8-32x1/4 Pan Head 707942 Heat Guard 27”, MK2...
- Page 14 EXPLODED VIEW LEFT SIDE PANEL ELECTRONICS...
