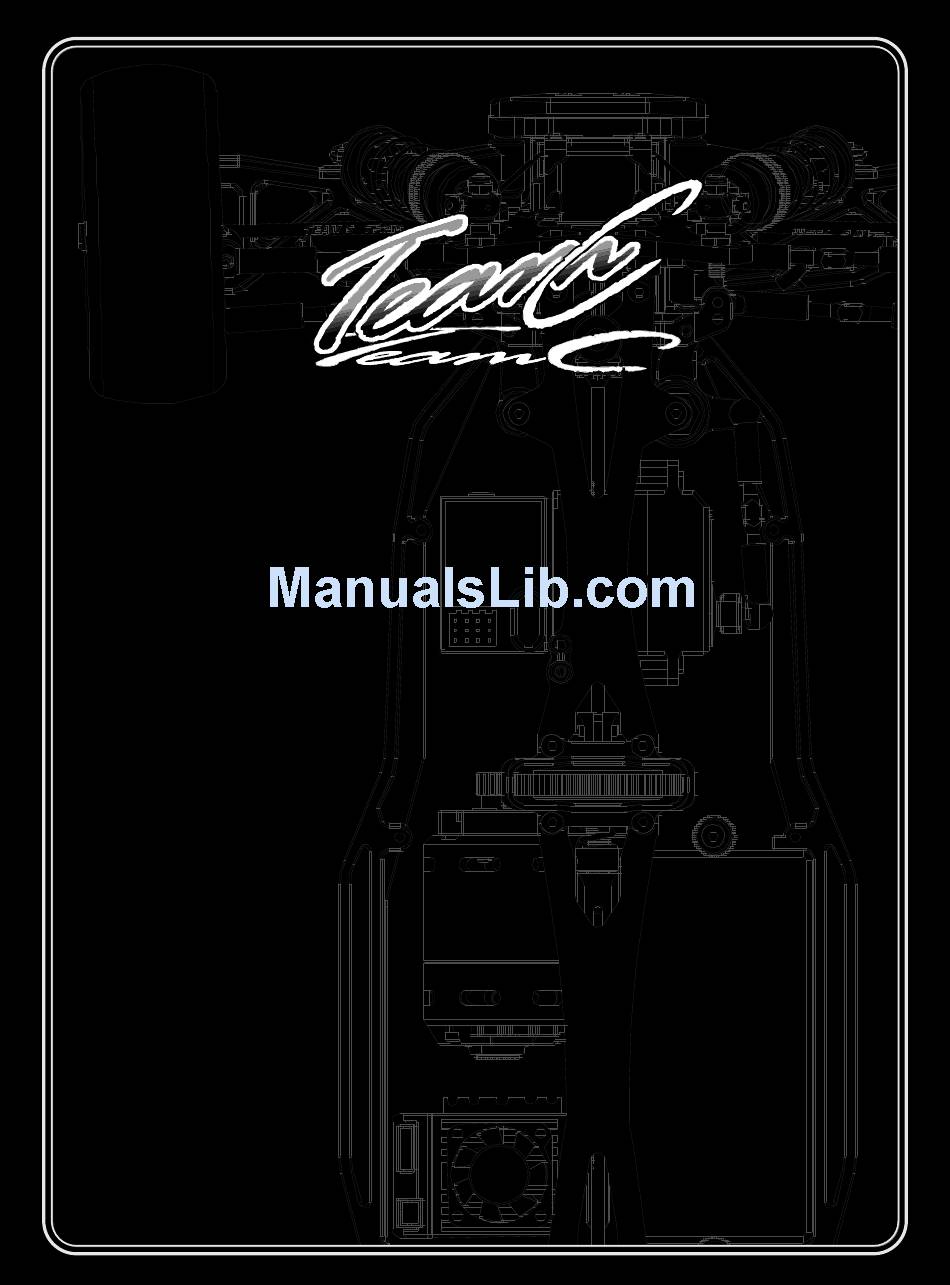

Instruction manual

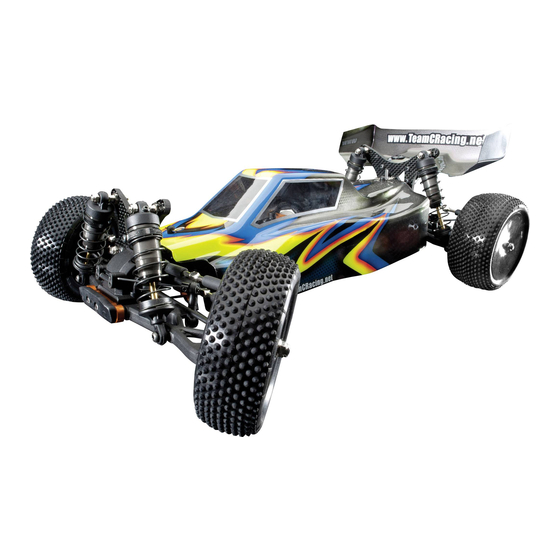

1:10 SCALE RADIO CONTROLLED ELECTRIC
POWERED 4wd RACING BUGGY
Dimensions
Length
....................................................................................400mm
長度
Width
....................................................................................250mm
寬度
Height
....................................................................................145mm
高度
www.teamcracing.net
TM4
尺寸：
Advertisement
Related Manuals for Team C TM4
Summary of Contents for Team C TM4
- Page 1 www.teamcracing.net Instruction manual 1:10 SCALE RADIO CONTROLLED ELECTRIC POWERED 4wd RACING BUGGY Dimensions 尺寸： Length …………………………………………………………………………400mm 長度 Width …………………………………………………………………………250mm 寬度 Height …………………………………………………………………………145mm 高度...
- Page 2 Transmitter Preparation 調整遙控器 GLG20 2.4GHz Control Panel 控制面板 Steering Wheel Throttle Trigger Battery Compartment Charging Jack Sterring Servo Reverse Power LED Steering Trim Bind Button Throttle Servo Reverse Battery Voltage Steering Dual Rate Power Switch Throttle Trim Transmitter Battery Installation 遙控器電池安裝...
-
Page 3: Transmitter Preparation
Transmitter Preparation 調整遙控器 Motor Battery Battery Charger (Not Included) Install Transmitter Batteries Electronic Speed Controller / Switch Connect Battery to ESC Servo Switch on Transmitter First Receiver Switch on ESC Second Note: When done driving Turn Off the ESC and THEN Transmitter Tools required 組裝需要的工具... - Page 4 Motor Mount/Side Panel 马达座/侧板 ....18 Diff 差速器 ........4 ......4 ......4 ....4 ......6...
- Page 5 Diff 差速器 5000# for Front diff 5000#用於前差速器，2000# 2000# for Rear diff 用於後差速器。 High grip: 高抓地力： Suggest using 7000# 前面建議使用7000#差速油， differential oil for front, 後面建議使用3000#差速油； Suggest using 3000# 低抓地力： differential oil for rear; 前面建議使用3000#差速油， Low grip: 後面建議使用1000#差速油。 Suggest using 3000# differential oil for front, Suggest using 1000# differential oil for rear.
- Page 6 Front Gear-box 前齿轮箱 ..2 ....4 Rear Gear-box 后齿轮箱 .....2 ..…………..2 ........2 .....2 ......1...
- Page 7 Rear Gear-box 后齿轮箱 ..2 ....4 Slipper Set 扭限组 ..….....2 ..…....1 ..…..2 ..….....1 ........1 Loosen for more slippage 当不易抓地的時候，请按此方向调整螺母。 3.5mm Aften first run, re-adjust to around 3.5mm Tighten for less slippage when traction grip 运行后再调整到3.5mm 当容易抓地的時候，请按此方向调整螺母。...
- Page 8 Center Gear 中齿轮 Steering Servo 转向伺服系统 Select the servo horn matching the servo being used. 根据舵机选择伺服臂。 Futaba - 25t Hitec - 24t Sanwa / JR / KO - 23t .......4 ......5...
- Page 9 Steering Servo 转向伺服系统 ......2 Buffer 缓冲 ...…....2 ...…..2...
- Page 10 Buffer 缓冲 ▲Projection.Note direction 注意方向 ......4 ......2 ………….1 ………….1 ......2 ....2 ..1 Top Deck/Car Shell Column 二楼板/车壳柱 ......1 ......8 Apply threadlocker(screw cement) Screw 打螺絲膠水 Cement...
- Page 11 Front Shock Tower 前避震架 ....2 ......2 Rear Shock Tower 后避震架 ....4 Apply threadlocker(screw cement) Screw 打螺絲膠水 Cement...
- Page 12 Rear Shock Tower 后避震架 ......4 Difference On The Roof 中差上顶板 ......4...
- Page 13 Front Hub Carriers 前轮座 ...…..4 ..………..2 ..…………...2 ...…………...2 ......2 Front Lower Arm 前下摆臂 ........2 .......2 Assemble both Left and Right Apply threadlocker(screw cement) 組裝左和右 打螺絲膠水 Screw Cement...
-
Page 14: R O L L - C E N T E R
Front Suspension Arm 前摆臂 k i c k - u p R O L L - C E N T E R ( °) ( m m ) =1 0 ° =+0 . 9 m m =9 ° =0 m m =1 1 °... - Page 15 Turnbuckle 拉杆 Front Upper Rod-L 1:1 x1 前上拉杆-L ▲Projection.Note direction 注意方向 Front Upper Rod-R 1:1 x1 前上拉杆-R ▲Projection.Note direction 注意方向 Rear Upper Rod 1:1 x2 后上拉杆 ▲Projection.Note direction 注意方向 Draglink 1:1 x2 转向拉杆 ▲Projection.Note direction 注意方向 ....6 ........12 Front Turnbuckle 前拉杆...
- Page 16 Rear Hub Carriers 后轮座 ..………..2 < L > < R > ..…………...2 ...…………...2 ......2 Rear Lower Arm 后下摆臂 ......4 ........2 .......2 Assemble both Left and Right Apply threadlocker(screw cement) 組裝左和右 Screw 打螺絲膠水 Cement...
- Page 17 Rear Suspension Arm 后摆臂 .....2 .......2 A N T I - S Q UA T R O L L - C E N T E R ( °) ( m m ) =2 ° =+0 . 9 m m =1 ° =0 m m =3 °...
- Page 18 Rear Turnbuckle 后拉杆 ......2 …………..4 Front Swaybar 前防倾杆 Apply threadlocker(screw cement) Screw 打螺絲膠水 Cement...
- Page 19 Front Swaybar 前防倾杆 ........4 .......2 Rear Swaybar 后防倾杆 Apply threadlocker(screw cement) Screw 打螺絲膠水 Cement...
- Page 20 Rear Swaybar 后防倾杆 ........4 .......2 Shock Absorber 避震器 ...…………..4 ...…………...4 ...…………..4 ...…………..4 ...………..8 ...………...8 Assemble both Left and Right Assemble as many times as specified 組裝左和右 需組裝數量...
- Page 21 Shock Absorber 避震器 ........8 ......2 ......2 ......4 ......4 ........4 Shock Absorber 避震器 ……………....2 .....4 Assemble both Left and Right Assemble as many times as specified 組裝左和右 需組裝數量 Cement...
- Page 22 Front Shock Absorber 前避震器 ......2 .........4 ......2 Rear Shock Absorber 后避震器 ......2 .........4 ......2 Assemble both Left and Right Assemble as many times as specified 組裝左和右 需組裝數量 Cement...
- Page 23 Battery Post 电池柱 ....2 Motor 马达 Gear Ratio 12.5 11.7 11.1 10.5 10.0 ......1 Pinion Gear ....2 Assemble both Left and Right 組裝左和右...
- Page 24 Motor 马达 Please install the motor, and then lock the screw. 请将马达装进后把螺丝锁紧！ Tighten the screws with one sheet of paper inserted between both gears. 两齿轮之间的间隙大约为一张普通纸的厚度。 ESC/Receiver 电子变速器/接收机 电子变速器 Receiver 接收机 T02087 Double-sided Tape 雙面膠...
- Page 25 Battery 电池 Battery 电池 ..2 Shock Absorber < Front > < Rear > 避震器 After fitting wheels to tyres, apply instant glue as shown 轮胎裝好后如图打胶水 Assemble as many times as specified 需組裝數量...
- Page 26 Shock Absorber 避震器 ......4 Wing 尾翼 ..2 ..2 Assemble as many times as specified 需組裝數量...
- Page 27 Body 车壳 TB401 Mask the windows from the inside. 在车窗內壁贴上遮盖贴纸。 TB401 Paint the body shell from the inside using spray colors. 在车壳内壁喷漆。 Body 车壳 H134 Assemble as many times as specified 需組裝數量...
- Page 29 Parts list for TM4 off-road buggy - 1 TM4配件包-1 T04102 T04103 T04104 T04100 T04101 T04107 T04108 T04109 T04105 T04106 Swaybar Ball Stud 防倾杆球头 2pcs W463 T04111 T04112 T04113 TU0442W TU0444W T04114 T04115 T04116 T04118 T04119 T04120 T04121 T04117 T04122 T04123...
- Page 30 Parts list for TM4 off-road buggy - 2 TM4配件包-2 T04132 T02087 W3551 H134 T04131 Small Clip Small Clip Holder 小号插销 小号插销固定座 6pcs 6pcs T04135 T04136 T04137 T04133 T04134 Front Shock Tower Rear Shock Tower 前避震器架 1pcs 后避震器架 1pcs T04138 T04139...
- Page 31 Parts list for TM4 off-road buggy - 3 TM4配件包-3 T04155 T04156 TS4039 T02084 TS4040 T04158 B051004 B101504 TU0250-1 TU0250-2 T04159 TU0250-5 TU0250-8 Spring 1mm Washer-White 9x1 O-Ring 1mm压垫-白色 弹簧 9x1 O环 4pcs 4pcs 4pcs 1mm Washer-Black 1mm压垫-黑色 12x1 O-Ring 4pcs 14x1.5 O-Ring...
- Page 32 Parts list for TM4 off-road buggy - 4 TM4配件包-4 T01057 T04157 T04038 TU0266-7 T04022 Below Spring Mount end-Plastic 弹簧下座-尼龙 4pcs Shock Absorber Top cover-Plastic -尼龙 4pcs 避震器上盖 M2.5x4 Screw M2.5x4螺丝 4pcs BS310 FS308 FS310 BS305 BS308 FS312 FS315 CS310 SS303...
- Page 33 Driver Track / City Event Date SETUP SHEET for the TeamC TM4 Conditions Smooth Bumpy Low traction Med traction High traction Sandy Soft dirt Grass Hard soil Clay Dusty Other Front Suspension Front Shocks Shock Mounting&Camber link Toe-in (+)/Out (-) °...
- Page 34 www.teamcracing.net...
