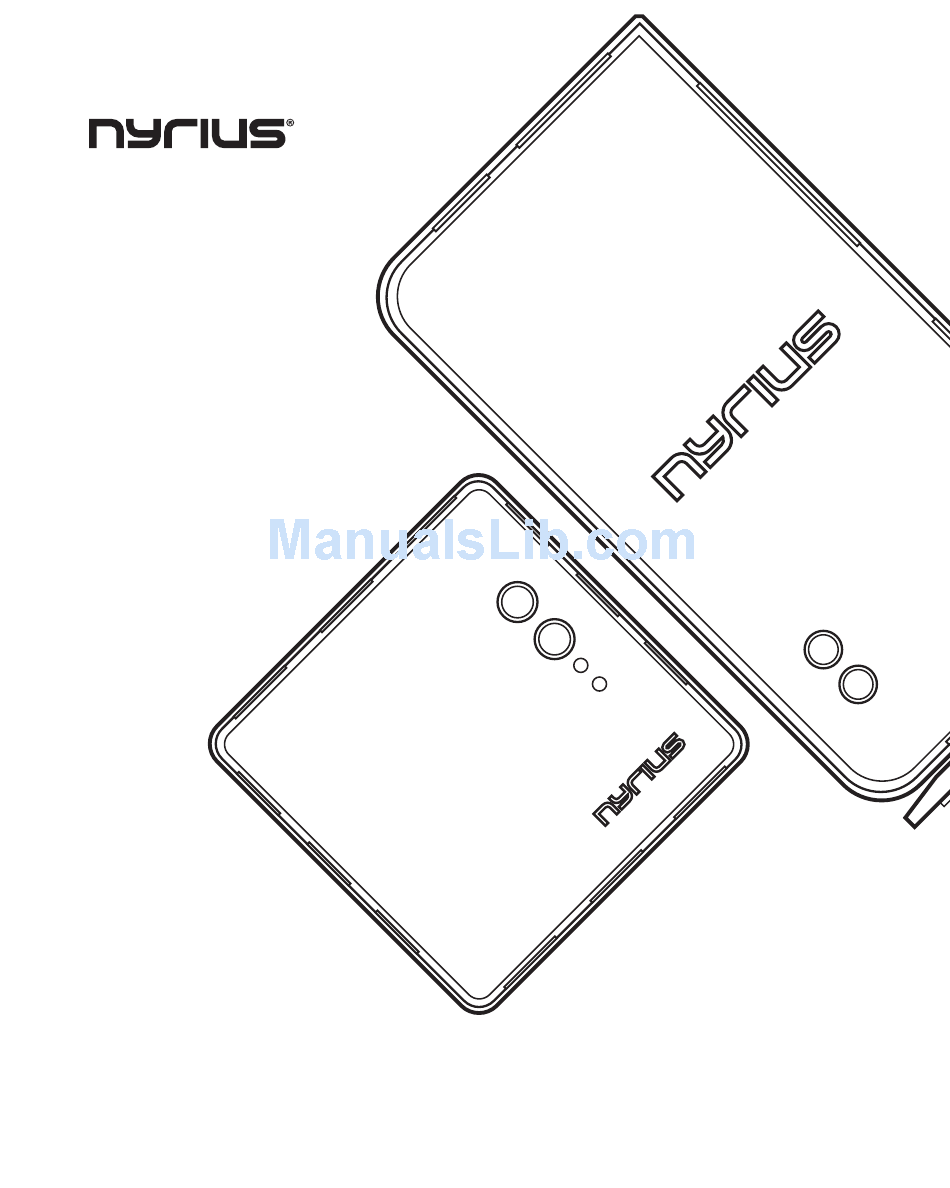

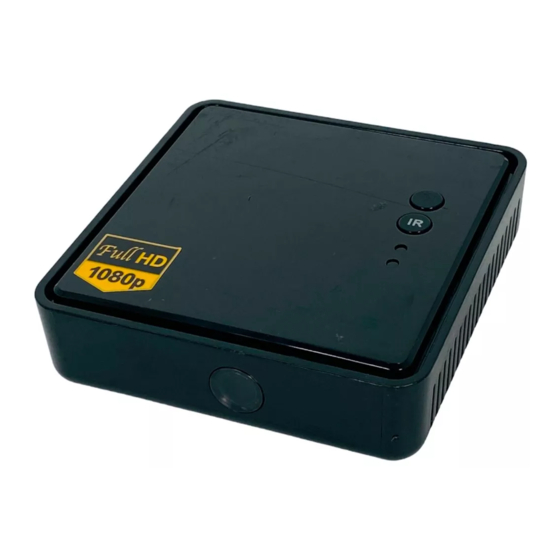

- Page 1 ARIES™ HOME (NAVS500) INSTRUCTION MANUAL WIRELESS HD TRANSMITTER...
-
Page 2: Table Of Contents
CONTENT What's Included ........................3 Overview ..........................3 Installation ..........................5 LED Description ........................8 Mounting ..........................9 Troubleshooting ........................10 Audio Bit Rate Support ....................... 11 Specification .......................... 11 Supported Resolution ......................12 FCC/IC Statements ......................13 Saftey Information ....................... 14 Warranty ..........................15... -
Page 3: What's Included
WHAT'S INCLUDED HDMI cable Transmitter Anchors x2 Receiver USB Power Supply Quick Installation Guide Mini Power USB Adapter IR Blaster cable OVERVIEW USB In Power Button HDMI OUT Main Unit Back Panel Front Panel Buttons and LEDs IR Blaster Extender Jack Source LEDs HDMI IN Power Button... -
Page 4: Installation
INSTALLATION Transmitter Connect 1 high-definition audio/vid- eo source to the transmitter Connect the supplied power adapter to the DC IN jack of the transmit- ter and plug into power outlet. The white LED indicator will appear. HDMI RECEIVER Connect the receiver’s “HDMI OUT” to the HDTV's “HDMI IN” port. Connect the supplied power adapter to the USB Input of the receiver and plug into power outlet. - Page 5 IR Extender Top view/vue de dessus Plug the external IR remote extender DEVICE / APPAREIL lead into the IR socket on the back of 30°3 0° the transmitter place the IR remote extender bubble 5-10cm in front of the HD device IR sensor must be in front of IR window of device.
-
Page 6: Led Description
POWER During the warm-up, the POWER LED will blink un- til connection between the TRANSMITTER and the RE- CEIVER is established. It will take 15 - 20 seconds for the system boot up successfully. NOTE: Transmitter`s HDMI out will still function in standby mode Ensure your TV set or projec- tor is set to the appropriate... - Page 7 OSD (ON SCREEN DISPLAY) DESCRIPTION Mode Status Description OSD Display (on RX) Rx: Standby Solid RED Tx: Active-Standby Power saving mode. Pairing RX searching for unpaired TX Please Activate Registration on Transmitter Unit Pairing RX cannot find new TX New WHDI source was not found Pairing manually pairing RX and TX...
-
Page 8: Mounting
WALL MOUNTING: (1) Drill pilot holes. (2) Insert the supplied two Anchors into the wall. (3) Insert two screws into the anchors. Leave 1/8” length for mounting the Transmitter or receiver. (4 )Place NAVS502 main holes over the protruding screws and slide down into positio... -
Page 9: Troubleshooting
TROUBLESHOOTING: No Video - Check the status of the Link LEDs, and check if the HD device is working nor- mally. - Check the HDMI lead is undamaged and is plugged into the correct socket. - Check that the correct HDMI output has been selected from the HD device’s menu and that the HDMI lead is plugged into the correct output socket. - Page 10 Thank you for your purchase of the Nyrius Aries Home/Home +. If you require any assistance please review the below Frequently Asked Questions. 1. What does the status of the LEDs mean? SOLID WHITE LINKED Transmitter/Receiver is linked. FLASHING WHITE/BLUE SEARCHING Transmitter/Receiver not in range.
- Page 11 TX/RX WILL NOW BE PAIRED : 1. RX (Receiver) : Remove mini USB power adapter, make sure RX is without power. 2. Press Power button and then plug-in mini USB power adapter. (continue holding power button) 3. Release Power button, RX’s Power button LED will now flash purple. After the 3 steps above , you will see the following OSD : 1.
-
Page 12: Audio Bit Rate Support
AUDIO BIT RATE: Digital Audio from HDMI inputs: Up to 6Mbit/s bit-rate support. Support AC3 and DTS. 2-channel PCM: 16~24 bits audio sample with 32~96KHz sampling rate as below: 2channel PCM 32KHz 44.1KHz 48KHz 96KHz 16 bits 24 bits SPECIFICATION: Supported Video Resolution 1080p, 1080i, 720p, 576p, 480p 3d Compatible... - Page 13 SUPPORTED RESOLUTIONS: 2D VIDEO FORMAT RESOLUTION SUPPORT 640x480p @ 59.94 / 60Hz 480p 720x480p @ 59.94Hz 480p 720x480p @ 60Hz 576p 720x576p @ 50Hz 720p 1280x720p @ 50Hz 720p 1280x720p @ 59.94 / 60Hz 1080i 1920x1080i @ 50Hz 1080i 1920x1080i @ 59.94 / 60Hz 1080p / 60 1920x1080p @ 50Hz 1080p / 60...
- Page 14 FCC STATEMENT This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This class B digital apparatus complies with Canadian ICES-003.
- Page 15 SAFETY INFORMATION Read all instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
-
Page 16: Warranty
NYRIUS. To the extent the law permits, NYRIUS disclaims any and all liability for direct or indirect damages or losses or for any incidental, special or consequential damages or loss of profits resulting from a defect in material or workmanship relating to the product, including damages for the loss of time or use of this NYRIUS product or the loss of information.
