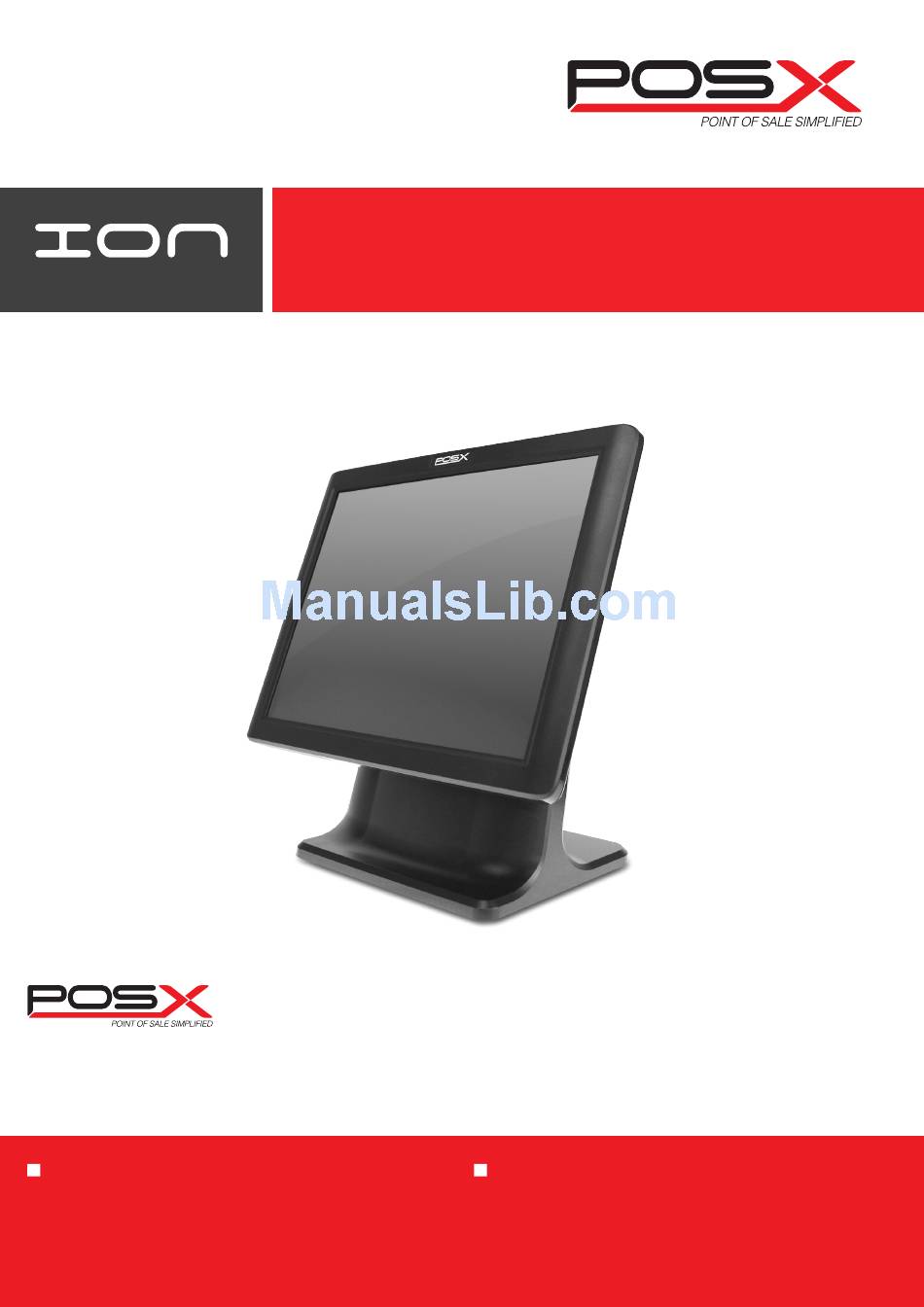

POS-X ION User Manual

Fit touchscreen monitor
Hide thumbs Also See for ION:

Advertisement

Quick Links

1975 Midway Lane, Suite O
Bellingham, WA 98226
sales@pos-x.com
360.738.8433
www.pos-x.com
POS-X Warranty
Industry-leading Warranty Protection
• 3 year warranty
• *2-day Advance Exchange - standard on all products
• Warranty extensions and overnight exchanges are available
to provide means to further reduce the total cost of
ownership
Fit Touchscreen Monitor
*Available in USA and Canada
User Manual
POS-X Service and Support
24/7 Technical Support and Lifetime Customer Support
• 24/7 access to our USA-based experienced technical
support representatives
• Support techs utilize advanced techniques such as
remote access for quick and accurate system analysis
• Lifetime support on all POS-X products
Version 1.0 August 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ION and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for POS-X ION

  • Page 1 • Warranty extensions and overnight exchanges are available • Support techs utilize advanced techniques such as to provide means to further reduce the total cost of remote access for quick and accurate system analysis ownership • Lifetime support on all POS-X products *Available in USA and Canada...
  • Page 2 Copyright 2014 All Rights Reserved Manual Version 1.0 The information contained in this document is subject to change without notice. We make no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
  • Page 3: Important Safety Instructions

    Safety IMPORTANT SAFETY INSTRUCTIONS To disconnect the machine from the electrical Power Supply, turn off the power switch and remove the power cord plug from the wall socket. The wall socket must be easily accessible and in close proximity to the machine. Read these instructions carefully.
  • Page 4 CAUTION ON LITHIUM BATTERIES There is a danger of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions. Battery Caution Risk of explosion if battery is replaced by an incorrectly type. Dispose of used battery according to the local disposal instructions.
  • Page 5 Revision History Revision Date Description V1.0 March, 2014  Release...
  • Page 6: Table Of Contents

    Table of Contents 1 Item Checklist............1 Standard Items................1 Optional Items ................2 2 System View............3 Front View & Side View ..............3 Rear View ..................4 Dimension..................4 I/O View................... 5 3 System Assembly & Disassembly......6 Install the Power Adapter............... 6 4 Peripherals Installation..........7 Install the MSR Module ..............
  • Page 7: Item Checklist

    Item Checklist Standard Items Power adapter (65W) Driver CD VGA cable...
  • Page 8: Optional Items

    Optional Items a. MSR module b. Fingerprint module c. Customer display...
  • Page 9: System View

    System View Front View & Side View Description l i t...
  • Page 10: Rear View

    Rear View Description MSR /Fingerprint / iButton dummy cover Dimension...
  • Page 11: I/O View

    I/O View Number Description...
  • Page 12: System Assembly & Disassembly

    System Assembly Install the Power Adapter The system is equipped with a 36W power adapter. Please plug it into the system as shown below. Place the system face down. Make sure not to scratch the monitor. You will find the I/O panel located in the bottom of the stand.
  • Page 13: Peripherals Installation

    Item Checklist Install the MSR Module MSR module can be installed on the right side of the system. Make sure the unit is powered down before starting. Remove the dummy cover first. Connect the MSR cable to the connector on the system side. Remove both M3*6 screws in the MSR compartment.
  • Page 14: Install The Fingerprint Module

    Install the Fingerprint Module Remove the dummy cover first. Remove the M3*6 screws (x2). Fix the hex standoffs (x2) to the screw hole as shown in the picture. Connect the fingerprint cables to the connector on the system side. Insert the fingerprint module in place and fasten the M3*4 screws (x2) on the back to secure the module.
  • Page 15: Install The Customer Display

    Install the Customer Display Use both hands to pull the top cover of the stand upwards. Release the plastic plate from the top cover. Connect the customer display cable (x1) to the connector on system side and fasten the ground cable (x1) with a M3*4 screw. Put the top cover of the stand back to the postion.
  • Page 16: Specification

    FCC Class A, CE, LVD, RoHs, NOM Stand Style Cable Management Base OPTIONAL ACCESSORIES Mounting Options Desktop Placement 3-Track MSR with USB interface for DISPLAY ION-MR3 ION Fit Series Video Interface Analog RGB (VGA) ION-RD3-LCM Integrated Rear Display, LCM Brightness 250 nits ION-BR3 Integrated Biometric Reader Colors 16.7 million colors...
  • Page 17: Jumper Settings

    Jumper Settings Motherboard Layout...
  • Page 18: Connectors And Functions

    Connectors and Functions Connector Function Debug USB connector(down-stream) USB connector(down-stream) USB connector(down-stream) LVDS connector OSD On/Off LED Power switch CN10 Internal VGA input connector CN11 USB connector (upstream) CN12 Keypad connector CN13 Inverter connector Power On/ Off Button Auto tune button USB1 USB connector (upstream) VGA1...
  • Page 19: Jumper Settings

    Jumper Settings Touch Select Function (1-2-3) Inverter Selection Function (1-2) (3-4) ▲LED CCFL Power Mode Setting Function (1-2) ▲Power on Power off...
  • Page 20 LCD ID Setting LVDS Output Resolution Interface (1-2) (3-4) (5-6) (7-8)(9-10) Bits Channel 1024 x 768 Single LVDS 800 x 600 Single LVDS 1280 x 1024 Dual LVDS 1366 x 768 Single LVDS 1366 x 768 Single LVDS 1920 x 1080 Dual LVDS...
  • Page 21: Appendix: Driver Installation

    Please inse rt the Driver CD into a computer with a disk drive and double click on the “index.htm” to pick the model and required driver. For more information please visit www.pos-x.com. 1975 Midway Lane, Suite O Bellingham, WA 98226 sales@pos-x.com...
