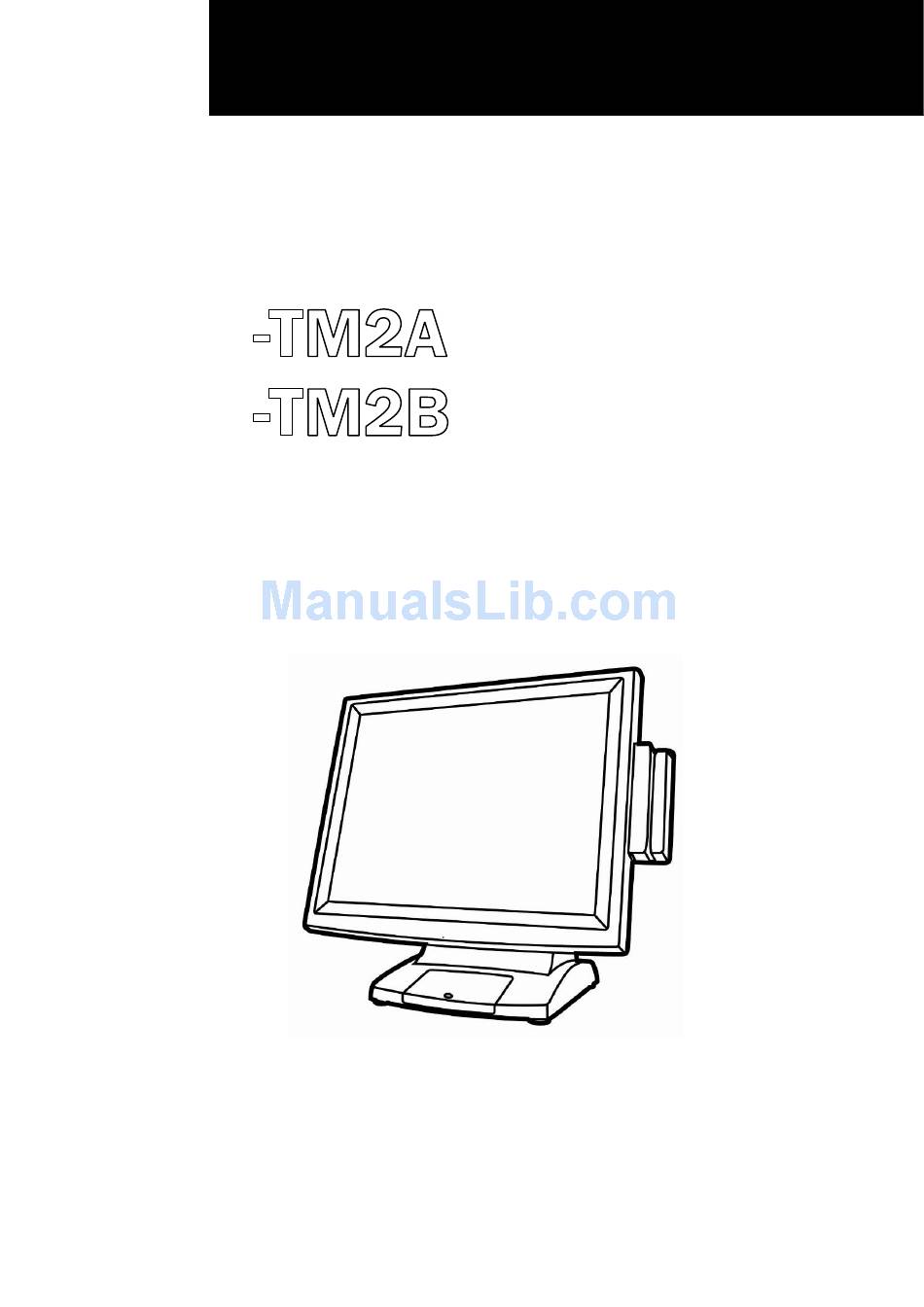

- Page 1 User Manual Version 1.1 February 2013 -TM2A -TM2B Touchscreen Monitors...
- Page 2 Copyright 2012 All Rights Reserved Manual Version 1.4 The information contained in this document is subject to change without notice. We make no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
-
Page 3: Important Safety Instructions
Safety IMPORTANT SAFETY INSTRUCTIONS To disconnect the machine from the electrical Power Supply, turn off the power switch and remove the power cord plug from the wall socket. The wall socket must be easily accessible and in close proximity to the machine. Read these instructions carefully. - Page 4 Safety Caution Note: To comply with IEC60950-1 Clause 2.5 (limited power sources, L.P.S) related legislation, peripherals shall be 4.7.3.2 "Materials for fire enclosure" compliant. 4.7.3.2 Materials for fire enclosures For MOVABLE EQUIPMENT having a total mass not exceeding 18kg.the material of a FIRE ENCLOSURE, in the thinnest significant wall thickness used, shall be of V-1 CLASS MATERIAL or shall pass the test of Clause A.2.
- Page 5 Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract.
- Page 6 Revision History Revision Date Description V1.4 October, 2012 B19 MB added...
-
Page 7: Table Of Contents
Table Contents 1 Package Checklist.........1 Standard Items................1 Optional Items ................2 2 System View...........3 Front View ..................3 Rear View ..................4 Bottom View..................5 I/O View................... 6 3 Peripheral Installation........7 MSR....................7 VFD....................8 Wall Mount Kit ................10 4 System Assembly &... -
Page 8: Package Checklist
Package Checklist Standard Items a. System b. Power adapter (36W) c. Driver CD d. USB Cable for touch e. Power cable f. VGA cable... -
Page 9: Optional Items
Optional Items a. MSR module b. Wall mount kit c. VFD module... -
Page 10: System View
System View Front View Description Touch screen MSR (optional) OSD button from left to right button: Stand hole for cable management... -
Page 11: Rear View
Rear View Description VFD module (optional) Stand (with cable management and power adapter bracket) Cable outlet VFD cover (VFD module installation location) VESA hole for stand and wall-mount kit installation... -
Page 12: Bottom View
Bottom View Description Easy-Service retaining bracket for power adapter Rubber feet... -
Page 13: I/O View
I/O View Description COM to VFD COM to PC USB out USB in VGA in DVI in DC 12V in... -
Page 14: Peripheral Installation
Peripheral Installation Components of MSR Kit: Screws Grounding Slide the MSR into the right position of the system. Fasten the screws (x2) and grounding cable (x1). -
Page 15: Vfd
Components of VFD Kit: Plastic bracket Metal Bracke Screws Remove the screws (x2) and slide the VFD cover outward. Position the VFD metal bracket onto the rear side of the VFD module and fasten the screws (x4). Position the plastic bracket on the metal bracket as shown in the picture. - Page 16 Fasten the screw (x1) to attach the plastic bracket to the metal bracket and VFD module. Slide the VFD module with bracket into the VFD socket and fasten the screws (x2) to secure the module. Connect the VFD cable to the VFD module. Connect the other end of the VFD cable to the COM port on the monitor.
-
Page 17: Wall Mount Kit
Wall Mount Kit Before installing the wall mount kit, please remove the stand. (See Chapter 4-1) Accessories Location to install a. Wall plate b. Monitor plate Screw Metal bracket The wall mount installs at the rear of the system. Place “b” onto the rear side of the LCD rear cover. Place “c”... -
Page 18: System Assembly & Disassembly
System Assembly & Disassembly Remove the System Stand Remove the screws (x2) that secure the stand to the system. Remove the screws (x4) that secure the VESA mount to LCD rear cover. Remove the VESA bracket. -
Page 19: Specification
Specification Model Name ION-TM2A ION-TM2B AD board LCD Panel " 5 " 7 s t i Touch Resistive t l i ° ° External I/O Ports , power, menu, auto) Power adapter Control / Indicator Peripherals customer display (COM) Environment &... -
Page 20: Jumper Settings
Jumper Settings B19 AD board Layout... -
Page 21: Connectors And Functions
Connectors and Functions Connector Function CN101 Inverter connector CN301 LVDS connector CN402 Keypad connector CN403 Audio connector CN804 USB port CN805 USB port CN806 COM port connector J101 Panel power setting J801 COM port power setting... -
Page 22: Jumper Setting
Jumper Setting Panel power setting Function J101 (1-2,3-4) ▲5V 3.3V COM jumper setting Function JP11 (1-2,3-4,5-6) ▲No power... -
Page 23: Driver Installation
Driver Installation Driver Installation: The shipping package includes a Driver CD. You can find every individual driver and utility that enables you to install the drivers in the Driver CD. Please insert the Driver CD into the drive and double click on the “index.htm” to pick the models.
