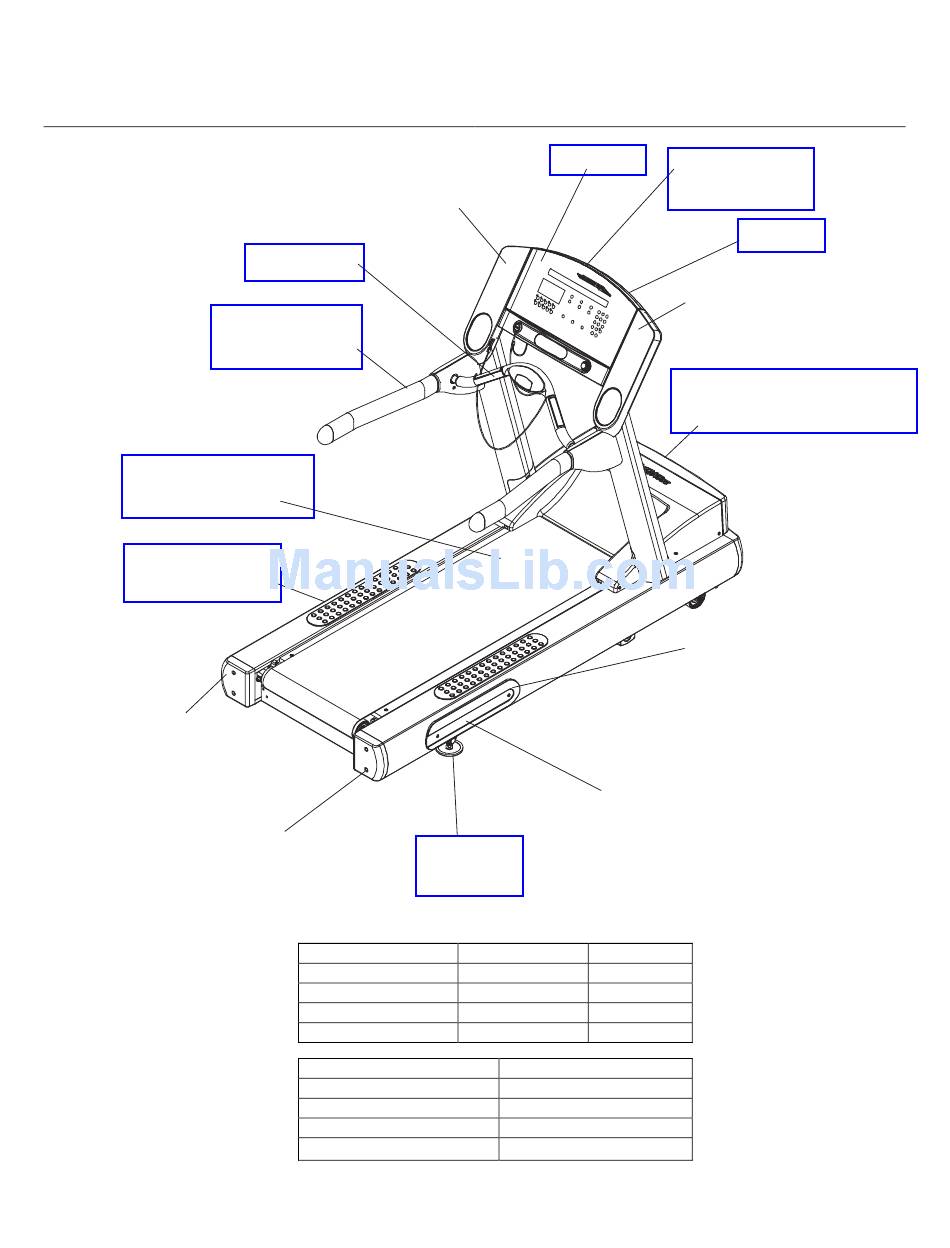

Treadmill 97Ti
General Assembly
Handrail
Components
Striding Belt, Deck,
and Rear Roller
Frame
Components
Rear End Cap (2)
0K58-01268-0000
Screws (4)
0017-00101-1772
Cup Holder, LT
AK58-00247-0002
ERGO Bar
Leveler
Assembly
Touch-Up Paint
0017-00008-0196
0017-00008-0197
0017-00008-0198
0017-00008-0199
Manual/Video
Operation Manual, Eng
Service Manual
Installation Video
Service Video
1Page 1 of 16
Console
Access Panel Decal, RT
0K58-01334-0001
Access Panel Decal, LT
0K58-01334-0002
Color
Container
Silver Bullet
Bottle
Silver Bullet
Spray Can
Stealth Gray
Bottle
Stealth Gray
Spray Can
Part Number
M051-00K58-A081
M051-00K58-A097
M051-00K58-A098
M051-00K58-A099
97T-0XXXX-01
S/N TTN100000
Power
Components
Cables
Cup Holder, RT
AK58-00247-0001
Motor Cover, Endcaps,
and Hardware
Access Panel Cover (2)
0K58-01279-0000
Screw (4)
0017-00101-1771
Advertisement
Table of Contents
Related Manuals for Sportsmith 97Ti 97T-0XXXX-01
Summary of Contents for Sportsmith 97Ti 97T-0XXXX-01
- Page 1 Treadmill 97Ti 97T-0XXXX-01 General Assembly S/N TTN100000 Console Power Cup Holder, LT Components AK58-00247-0002 Cables ERGO Bar Cup Holder, RT Handrail AK58-00247-0001 Components Motor Cover, Endcaps, and Hardware Striding Belt, Deck, and Rear Roller Frame Components Access Panel Cover (2) 0K58-01279-0000 Screw (4) 0017-00101-1771...
- Page 2 Treadmill 97Ti 97T-0XXXX-01 Frame Assembly S/N TTN100000 Anti-StaticTinsel 0K58-01102-0001 Tinsel Spring 0017-00009-0901 Anti-Scuff Pad (2) 0K58-01306-0000 Static Brush Idler Arm Assembly Wax Components Motor Assembly Front Roller Assembly Fan Assembly AK58-00126-0000 (100v) Lift Motor AK58-00145-0000 (200V and Frame Mounting Screws 0017-00101-1781 Motor Frame Tag PCB...
-
Page 3: Console Assembly
Treadmill 97Ti 97T-0XXXX-01 Console Assembly S/N TTN100000 Rear Console Decal 0K58-01357-000 Rear Console Case Console Screw (8) 0K58-01272-0000 0017-00101-1288 PCB Mounting Screw (8) 0017-00101-1275 PCB Assembly A084-92185-A009 See Table Switch Membrane 118E-00001-0129 Console Accessory Magnet Disc Cover 0K40-01070-0000 0K58-01280-0000 See Table Polar/E-Stop Cable Assy AK58-00237-0000 Polar Receiver... -
Page 4: Handrail Assembly
Treadmill 97Ti 97T-0XXXX-01 Handrail Assembly S/N TTN100000 Hardware Bag Assembly AK58-00226-0000 ERGO Bar Assembly Console/Cup Holder AK58-00219-0000 Mounting Screw (8) ERGO Bar Gasket (2) 0017-00101-1780 0K58-01347-0000 Bottom RT Handrail Boot Handrail Hex Nut (4) 0K58-01304-0001 Handrail Mounting 0017-00103-0327 Screw (4) Console Mounting 0017-00101-1774 Screw (4) -
Page 5: Covers, End Caps, Hardware
Treadmill 97Ti 97T-0XXXX-01 Covers, End Caps, Hardware S/N TTN100000 Motor Cover Screws (4) Motor Cover 0017-00101-1772 AK58-00228-0000 Felt Strip - 28” 0017-00081-0294 Flex Deck Decal (2) 0K58-01365-0000 Front End Cap (2) 0K58-01267-0000 End Cap Screws (4) 0017-00101-1772 Front Cover 0K58-01266-0000 Screws (4) Bug Medallion Assembly 0017-00101-1771... -
Page 6: Belt, Deck, Rear Roller
Treadmill 97Ti 97T-0XXXX-01 Belt, Deck, Rear Roller S/N TTN100000 Striding Belt 0K58-01191-0000 Belt Limit Label, LT M051-00K58-A101 Deck Mounting Screws (4) 0017-00101-1775 Deck 0K58-01091-0001 TECSPAK Mounting Screw (8) Caution Label 0017-00101-1652 M051-00K58-A014 TECSPAK Spring (8) 0K40-01026-0002 Belt Limit Label, RT M051-00K58-A100 TECSPAK Tinnerman Clip (8) 0017-00103-0198... -
Page 7: Lift Motor And Frame
Treadmill 97Ti 97T-0XXXX-01 Lift Motor and Frame S/N TTN100000 IEC Receptacle 0017-00003-0949 Retainer Bracket w/Screw Lift Motor Hex Bolt 0017-00042-1145 0017-00101-1021 Frame Screws 0017-00101-1723 Lock Nut Lift Frame End Cap 0017-00103-0025 0017-00042-1076 Vinyl Cap Line Cord Clip 0017-00042-1075 0017-00042-0840 Lift Frame Wheel 0K58-01066-0000 0K58-01071-0000... - Page 8 Treadmill 97Ti 97T-0XXXX-01 Wax/Lift & Motor Controller Assy S/N TTN100000 Wax/Lift & Motor Controller Assembly AK58-00153-0001 (120v/60Hz) AK58-00153-0002 (230v/50Hz) Line Filter (50Hz units Only) 0017-00003-0898 Line Filter Mounting Screws “LOAD” End Hex Nut 0017-00101-0134 0017-00103-0005 Speed Sensor Thermo-Switch Cable Cable “LINE”...
-
Page 9: Drive Motor Assembly
Treadmill 97Ti 97T-0XXXX-01 Drive Motor Assembly S/N TTN100000 Motor w/Caution Label AK58-00171-0000 Poly-V Pulley 0K58-01097-0001 Slotted Hex Screw (2) 0017-00101-0975 Speed Sensor Assembly AK58-00073-0001 Sensor Wheel Locking Nut (4) Mounting Screw (3) 0017-00103-0027 0017-00101-1631 Washer (4) 0017-00104-0409 Sensor Wheel 0K58-01094-0000 Insulating Shoulder Washer (4) 0K58-01255-0000... -
Page 10: Wax Components
Treadmill 97Ti 97T-0XXXX-01 Wax Components S/N TTN100000 Wax Pump AK58-00187-0000 Tube Reducer Connector 0017-00021-2188 Replacement Hose Hose Clamp AK58-00148-0000 0017-00042-0842 PVC Tube - 22” 0017-00041-0830 Phillip Screws 0017-00101-0658 Tie Straps 0017-00042-0622 Spray Nozzle Assembly AK58-00046-0000 Brass Spray Tip 0017-00009-0842 Extrusion 0K58-01111-0001 Wing Nuts 0017-00103-0284... -
Page 11: Idler Arm Assembly
Treadmill 97Ti 97T-0XXXX-01 Idler Arm Assembly S/N TTN100000 Motor Pulley Idler Arm Assembly 0K58-01057-0001 AK58-00053-0002 Tinsel Bracket Allen Screw 0K58-01263-0001 0017-00101-0333 Idler Pin Tinsel Bracket Screw(2) 0017-00007-0248 0017-00101-1193 Grommet 0017-00042-0326 Plug 0017-00042-1053 (For units not Drive Belt equipped with 0K58-01115-0000 circuit breaker.) Idler Pulley 0K26-01731-0000... - Page 12 Treadmill 97Ti 97T-0XXXX-01 Leveler Assembly AK58-00052-0000 S/N TTN100000 Assembly Leveler & Bushing Flat Washer-4 AK58-00089-0000 0017-00104-0190 Lock Washer-4 0017-00104-0333 Pivot Pin Hex Nut-4 0K58-01098-0001 (8-18x10) 0017-00101-1253 Stop Nut 0K58-01099-0000 Leveling Foot 0K58-01110-0000 12Page 12 of 16...
- Page 13 Treadmill 97Ti 97T-0XXXX-01 Front Roller Assy AK58-00067-0000 S/N TTN100000 Mounting Bolt 0017-00101-0974 Flat Washer 0017-00104-0043 Polley V Pulley 8” 0K58-1105-0000 Lock Washer 0017-00104-0005 Hex Bolt 0017-00101-1632 Flat Washer 0017-00104-0330 13Page 13 of 16...
-
Page 14: Ergo Bar W/Lifepulse
Treadmill 97Ti 97T-0XXXX-01 ERGO Bar w/Lifepulse S/N TTN100000 Lens Cover Mounting Screw (2) 0017-00101-0824 Heart Rate Electrode Kit GK20-00002-0005 Lens Cover Assembly AK58-00064-0000 Ergo Bar Gasket (2) 0K58-01347-0000 14Page 14 of 16... -
Page 15: Power Components
Treadmill 97Ti 97T-0XXXX-01 Power Components S/N TTN100000 (foreign units only) AK58-00210-0000 On/Off switch 0017-00032-0198 Line Cord (Plug End Changes) 0017-00003-0947 12’ 120v 10 Amp Line Filter 0017-00003-0923 Domestic units with 220v or low 0017-00003-0948 12’ 220v 0017-00003-0898 0017-00003-0915 RT Angle Plug 20 Amp Line Filter 0017-00003-0781 220v/60Hz units with 230v or hig... - Page 16 Treadmill 97Ti 97T-0XXXX-01 Cables S/N TTN100000 16Page 16 of 16...
