President's Choice 63 000 BTU Assembly Instructions Manual

Double lid lp gas grill
Hide thumbs Also See for 63 000 BTU:
Table of Contents

Advertisement

Quick Links

63 000 BTU double lid LP gas grill
160cm x 124.5cm x 55.24cm / 63" x 49" x 21.75"
assembly instructions
IMAGE OF PRODUCT
LINE DRAWING
1
PC 1001 1023
NG 606986

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 63 000 BTU and is the answer not in the manual?

Questions and answers

Related Manuals for President's Choice 63 000 BTU

Summary of Contents for President's Choice 63 000 BTU

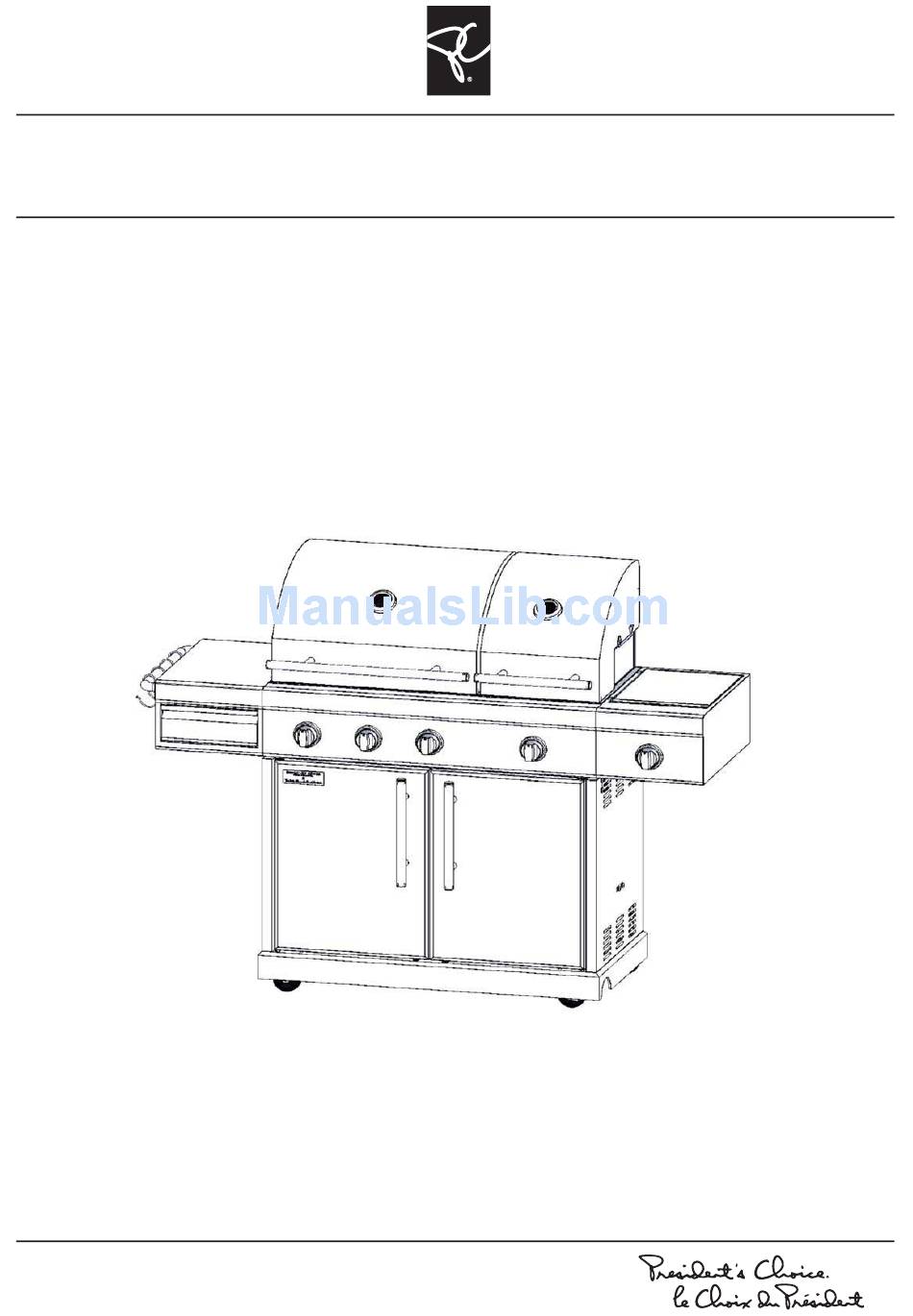

  • Page 1 63 000 BTU double lid LP gas grill PC 1001 1023 NG 606986 160cm x 124.5cm x 55.24cm / 63” x 49” x 21.75” assembly instructions IMAGE OF PRODUCT LINE DRAWING...
  • Page 2 SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. IF YOU ARE ASSEMBLING THIS UNIT FOR SOMEONE ELSE, GIVE THIS MANUAL TO HIM OR HER TO SAVE FOR FUTURE REFERENCE. FO R CUSTOMER SERVICE, PLE ASE C ALL 1-87 7-630 -5396 (TO LL-FREE), MO N DAY THRO U G H FRI DAY FROM 10:0 0 A M TO 7:0 0 PM (EST).
  • Page 3 WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Read the installation, operation and maintenance instructions thoroughly before installing or servicing this equipment. DANGER: Failure to follow these instructions could result in a fire or explosion that could cause property damage, personal injury or death.

  • Page 4: Before Grilling

    GRILL OPERATION 1-2-3 Before grilling: 1. Keep your grill a safe distance away from your property.* 2. Always perform a leak-test on all connections and hoses.* 3. Keep children away from the grill. During grilling: o avoid tripping safety valves, please follow these instructions carefully! 1.
  • Page 5 Please refer to the owner’s manual for details. WARNING Do not store or use gas oline or other flammable liquids or vapor in the vicinity of this or any other appliance An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance. Do not fill the gas cylinder beyond maximum fill-line.

  • Page 6: Table Of Contents

    SAFETY INSTRUCTIONS Always read and understand the WARNINGS and INSTRUCTIONS that are contained in this manual before attempting to use this gas barbecue grill, to prevent possible bodily injury or property damage. Always keep this manual for convenient future reference. TA B L E O F C O N T E N T S SECTIO N O NE Safet y instructions ................

  • Page 7: Sectio N O Ne

    S E C T I O N O N E SAFET Y INSTRUCTIONS NOTE: The use and installation of this product must conform to local codes. In the absence of local codes, use the National Fuel Gas Code, ANSI Z223.1/NFPA54. Reference to Natural Gas and Propane Installation code CSA B149.1 or Propane Storage and Handling code B149.2 IMPORTANT NOTICE: READ ALL INSTRUCTIONS PRIOR...
  • Page 8 3. Always open the grill lid carefully and slowly as heat and steam trapped within the grill could cause severe burns. 4. Always place your grill on a hard and level surface far away from combustible materials and structures. An asphalt or blacktop surface may not be acceptable for this purpose.
  • Page 9 of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods; and Commission. 13. This outdoor gas appliance is not intended to be installed in or on recreation vehicles and/or boats. 14. Do not attempt to move the grill while it is lit. 15.
  • Page 10 CAUTION: PREVENTION OF BURNS 1. To avoid burns, do not touch metal parts of the grill until they have completely cooled for at least 45 minutes or unless you are wearing protective gear such as pot holders, protective gloves or mittens. 2.
  • Page 11 SAFE LOCATIONS FOR USE OF THIS OUTDOOR GRILL DANGER: ever use this outdoor grill inside any building, garage, shed or breezeway, or inside any boat, trailer or recreational vehicle, to prevent a possible fire and to prevent the possibility of carbon monoxide poisoning or asphyxiation.
  • Page 12 gasoline or other volatile substances are stored in the vicinity of this grill. 4. The temperature of a grease fire or of the radiated heat might otherwise be sufficient to ignite nearby combustible or volatile substances. 5. Always locate this grill where there will be ample combustion and ventilation air, but never position it in the direct path of a strong wind.
  • Page 13 DANGER: GAS SAFETY Liquid propane (LP) is flammable and hazardous if handled improperly. Become aware of its characteristics before using any propane product Propane characteristics: Flammable, explosive under pressure, heavier than air and settles in pools in low areas. In its natural state, propane has no odour. For your safety, an odorant has been added.

  • Page 14: Gener Al Inform Ation

    Inspect the grill before each use. 1. Inspect all hoses and connections and make certain they are secure. 2. Check and clean the burner venturi tubes for spider and insect nests by removing the burner and inserting a bottle brush cleaner into each tube to make sure the passage is clear.

  • Page 15: Sectio N T Wo

    S E C T I O N T W O PARTS LIST Body assembly Back panel Left side shelf Storage basket Tank clip 1pcs Right side shelf Cart assembly Grease cup Right door 1pc Grease cup support Right side panel Left warming rack 1pc Storage basket support G..Right warming rack 1pc...
  • Page 16 HARDWARE LIST AA. Bolt (M6x15), 27 pcs 23 pcs Spring washer 6.2x16x1.0 23pcs Flat washer 6.2X9X1.2 DD.Screwdriver ,1pc 2pcs Spring washer 4.2X6.5X1.2 6pcs Flat Washer 4.2X10.5X1.0 GG. M4 nut ,4pcs M4X12 Bolt 6pcs...

  • Page 17: Asse Mbly Instr Uctions

    ASSEM BLY I NSTRUC TI O NS Remove all contents from the carton packaging. Make sure all parts are present before attempting assembly. Once the grill is fully assembled, go back and check to make certain all the bolts are secure.
  • Page 18 Step 2 (Cart back panel assembly) Loosen the four pre-installed bolts on the cart back panel (N) and allow 1/4 bolt’s length to extend from the cart back panel (N). Align the holes on cart left side panel (K) with the holes on the cart back panel (N).
  • Page 19 Step 4 (Front beam assembly) Align the holes on cart left side panel (K) with the holes on front beam (M). Insert one M6 x 15 bolt (AA), one spring washer (BB) and one flat washer (CC) into each pre-drilled hole, then tighten the bolt by hand.
  • Page 20 Step 6 (Tank baffle assembly) Align the holes on the tank baffle (W) with the holes on the left side panel. Insert one M6x15 bolts (AA), one spring washer (BB) and one flat washer (CC) into each pre-drilled holes Tighten the bolts using the screwdriver provided Step 7 (Install doors ) Insert the pin on the bottom of left...
  • Page 21 Step 8 (Install the body assembly with cart assembly) Put the body assembly (A) onto the cart assembly. Align the holes on the body assembly with the holes on the cart assembly Insert the M6 x 15 bolt (AA), spring washer (BB) and flat washer (CC) into pre-drilled holes, and then tighten the bolts by hand.
  • Page 22 Step 10 (Install the valve with side knob and knob support) Align the holes on the side knob support (Y) with the hole on the front of the right side shelf and side burner valve. Insert one M4 x 12 bolt (HH) into the pre-drilled holes.
  • Page 23 Step12 (Install the heating plate, cooking grid and warming rack) Place the heating plates (J) upon each burners.( as shown in the diagram) Put the left cooking grid (I) and right cooking grid (H) upon the heating plates. Put the left warming rack (F) and right warming rack (G) on the side walls of firebox.
  • Page 24 Step14 (Install the tank clip) Inset the tank clip (P) into the holes on the tank holder Step15 (Install the gas tank) Place the gas tank on the gas holder, and then clip it using the tank clip. Connect the tank with regulator by screwing regulator collar onto the tank valve.

  • Page 25: Sectio N Three

    S E C T I O N T H R E E SAFE T Y CAUTION: Use only the regulator provided. If a replacement is necessary, contact customer service at 1-877-630-5396. The use of unauthorized parts can create an unsafe condition and environment. In Canada, the LP gas cylinder must be constructed and marked in accordance with specifications of the National Standard of Canada, CAN/CSA-B339,...
  • Page 26 9.1 kg/20 lb cylinders equipped with a cylinder connection device compatible with the connection for outdoor cooking appliances. The cylinder must include a collar to protect the cylinder valve. The gas cylinder should not be dropped or handled roughly. If the appliance is not in use, the gas cylinder must be disconnected.

  • Page 27: G As Cylinder Connection

    DANGER: A fire causing death or serious injury may occur if the following is not followed exactly. Never store or use gasoline or other volatile substances in the vicinity of this grill. Never store a spare propane cylinder in the vicinity of this grill, or in the vicinity of another potential heat source.

  • Page 28: Leak-Testing

    DANGER: To prevent fire or explosion hazard when testing for a leak: 1. Always perform the leak-test before lighting the grill and each time the cylinder is connected for use. See “Leak-testing” section on page 31. 2. Do not smoke or allow other sources of ignition in the area while conducting a leak-test.

  • Page 29: Sectio N Four

    TO TEST 1. M ake ap p rox. 9 0 mL/3 fl oz o f le ak so lutio n by mixing on e p ar t liquid dishwashing so ap wit h t hre e p ar ts wat er. 2.
  • Page 30 when preparing to light the main burners, to prevent possible injury. M AI N BU RN ERS Inst ruc tio ns 1. O p en lid w hile lighting b urner. War ning: At t emp ting to light t he b urner wit h the lid cl ose d m ay cause an explosio n.
  • Page 31 Bur ner inst alla tio n and a djust me nt: Pre cautio ns 1. A f ter lighting, o b ser ve th e b urner fl ame. M ake sure all b urner p or ts are lit. 2.
  • Page 32 7. Co nfir m t h at t he b urner is p ro p erly lit and t h at t he fl ame p at t ern is as de sire d (s e e Fig. A, B an d C b e l ow fo r p ro p e r f l am e p at t erns). I f t h e f l am e p at t ern is ot h er t h an no rm al, co nsult t h e “...

  • Page 33: Reset P Roce Dure

    O bse r ving t he he a t and co lour of the infrare d c eramic burner whe n lit Fl ame o f infrare d burner might b e visible in sha d e d are a. A f ter burner is lit, it sh ould fe el warm in 5 - 1 0 se co nds and col our o f the ceramic pl ate t urns re d in ap p roxim ate ly 2-3 minut es.
  • Page 34 To ensure th e p ro ce dure is s afe ly an d succe s sfully p er fo rm e d, p le ase caref ully fo ll ow th e p ro ce dure b e l ow. PRO CEDU RE 1.

  • Page 35: Sectio N Five

    vapour vapour vapour vapour liquid liquid liquid liquid co rre c wro ng wro ng wro ng S E C T I O N F I V E CLE AN I N G IMPORTANT! Always allow to completely cool off before covering your grill to prevent corrosion from condensation.
  • Page 36 Re co mm e nde d c le aning ma te rials M ild dishwashing liquid d et erg ent H ot wat er N yl o n cle aning p a d Wire brush Pap er clip Put t y knife/scrap er Co mpresse d air D O N OT use cl e anse rs th at co ntain a cid, mineral spirits or x ylene O utsid e sur f a ce...

  • Page 37: Troublesh O Oting

    Burne r asse m b ly 1. Turn g as o f f at t he cont rol kno b s and pro p ane c ylin d er. 2. Remove co oking grate s and fl ame t am ers. 3.
  • Page 38 Burne r asse m b ly 1. Turn g as o f f at t he cont rol kno b s and pro p ane c ylin d er. 2. Remove co oking grate s and fl ame t am ers. 3.
  • Page 39 PRO BLEM POSSIBLE C AUSE SO LUTI O N Out of gas Sudde n dro p in gas flow Check for gas in p rop ane c ylinder. or re duce d flame height Excess flow safet y device Refer to the ”Exce ssive flow may have b e en activated.
  • Page 40 PRO BLEM P OSSI BLE C AUSE SO LUTI O N Excessive cooking Adjust (lower) temp erat ure temp erature. accordingly. G re ase trapp ed by food Turn knobs to O FF. Pe rsist e nt gre ase build -up around b urner system.

  • Page 41: Sectio N Six

    S E C T I O N S I X LIMITED WARR A NTY WARR ANT Y PRO GR A M: Pro o f o f p urch ase is re quire d to a cce s s this warrant y pro gram, which is in ef fe ct fro m t he d at e o f p urch ase.
  • Page 42 If yo u ha ve any qu e stio ns rel at e d to th e p ro du c t or warrant y, pl e ase call custo m er ser vice at 1-87 7-630 -5396, M on d ay t hrough Frida y fro m 10:0 0 A M to 7:0 0 PM (EST).
  • Page 43 NOT E S A ND O B S E R V AT I O NS...
  • Page 44 N O T E S A N D O B S E R VAT I O N S...
