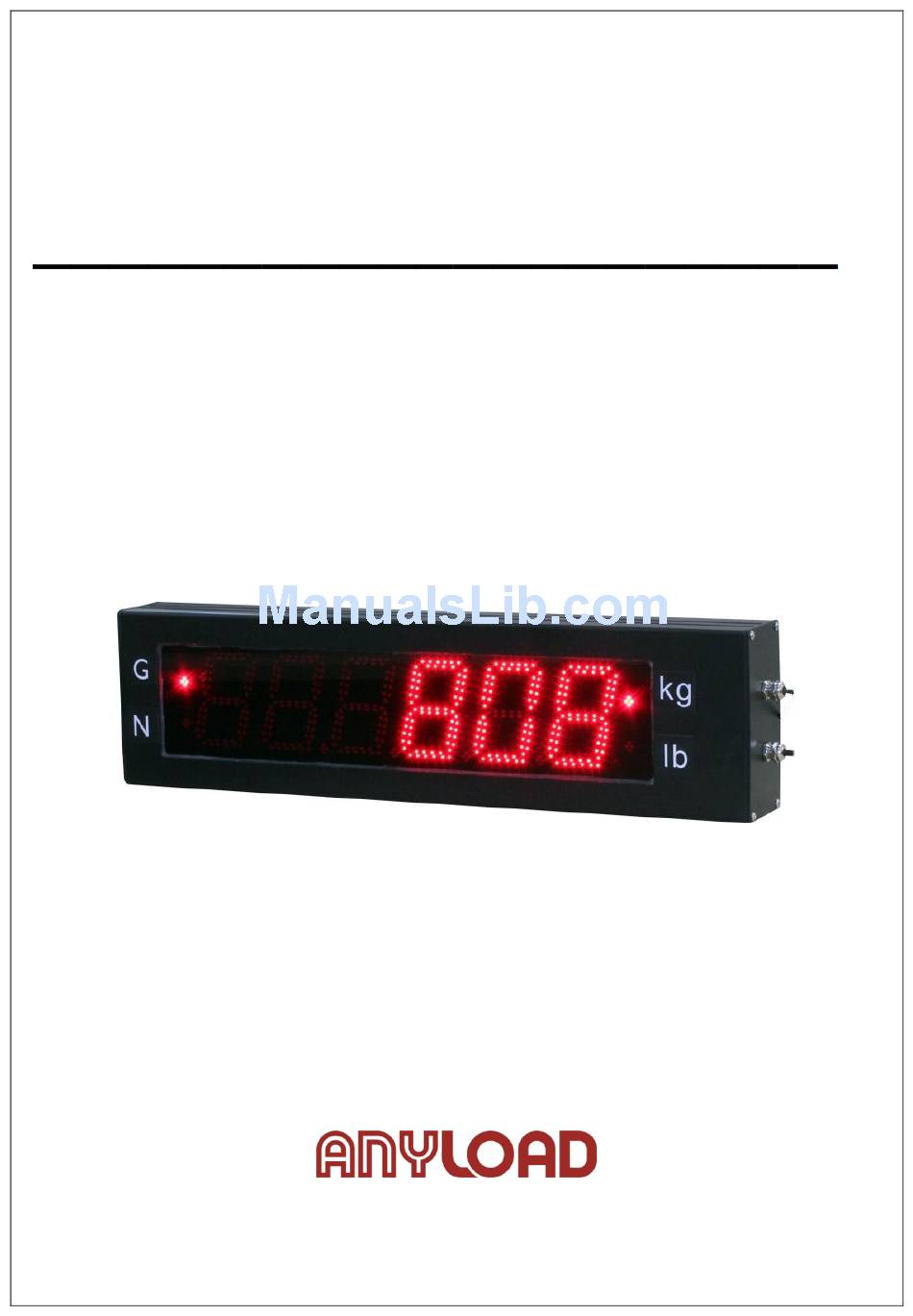

- Page 1 808HA Plus Remote Display Installation and Operation Manual http://www.anyload.ca Page AL-Manual-Display-808HA-Plus-En-101...
- Page 2 G (Gross), N (Net), kg, lb. It is designed to work with most digital weighing indicators by using RS-232 communications. The 808HA Plus can be easily installed by being mounted to a wall or pole, or suspended with a pair of hooks.
- Page 3 1.3 Dimensions (in mm; 1mm = 0.03937 inches) Enclosure Dimensions: Bracket Dimensions: (Option) Hanger Dimensions: Page AL-Manual-Display-808HA-Plus-En-101...
- Page 4 AC Adapter x1 Accessories bag: Hanger x2, screws and nuts; Bracket (wall mounting kit) x2 (Option) After unpacking, visually check the 808HA Plus remote display for damage. If any parts were damaged in shipment, notify ANYLOAD immediately. Wall Mounting (Option) The 808HA Plus remote display can be mounted to any vertical surface or pole.
- Page 5 Hanger Installation The 808HA plus can also be suspended with two hooks which are at the same height, the distance between two hooks is adjustable. Slide the hangers into the slot, make sure the distances between two hangers and the sides of the enclosure are exactly the same so that the enclosure can be suspended horizontally.
- Page 6 Continuous. Working Mode When powering on the 808HA Plus remote display, it will run self-test at first. Display will show digits from six “0”s to six “9”s. After the self-test, if the display is connected to the weighing indicator properly, it will receive the data stream sent from the indicator, and show present weighing data.
