EnOcean EOSC Installation Manual

Occupancy Sensor - Ceiling Mounted

Package Contents

▪
Occupancy Sensor
▪
2 screws, 2 wall anchors
▪
Wire bracket

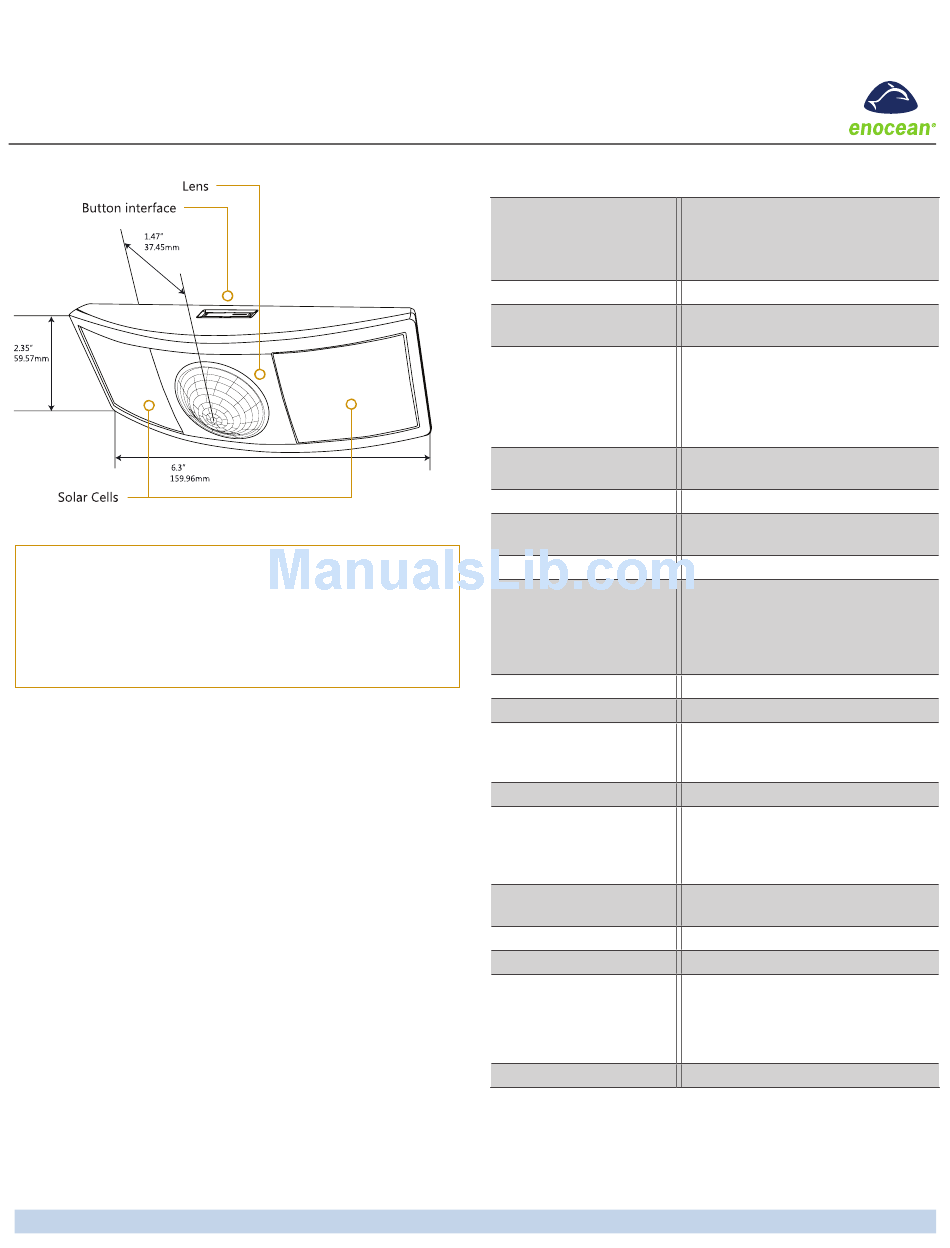

Product Description

The ceiling-mounted Occupancy Sensor saves energy and adds
convenience by accurately detecting when an area is occupied
or vacant.
This device is wireless, powered by indoor light, and uses a
passive infrared (PIR) sensor to detect motion. The occupancy
sensor transmits RF signals to control lighting, HVAC and outlets
more efficiently.
Features Include:
▪
Sends wireless messages to other devices when motion is
detected
▪
Harvests ambient solar energy to power the sensor and wire-
less communication
▪
Mounts easily on any ceiling material
▪
Works with other sensors for enhanced occupancy tracking
▪
Built-in tests to confirm operation at installed location
▪
Supplemental battery or alternative power supply options for
extreme low-light conditions
© 2014 EnOcean GmbH

Tools Required

▪
Power drill, 3/16" bit
▪
Screwdriver
▪
Light meter
▪
Battery (CR2032) for testing

Specifications (typ. values)

Power Supply:
Optional:
RF Transmission Range
Motion Sensing Range
Startup Charge Times*
First motion transmission
/ Linking
Motion LED blink
Light Test / Walk Test
Sustaining Charge Time
for battery free operation
Time to Full Charge*
Operating Life in
Total Darkness
Minimum Operating Light
Optional Battery Life:
• Infrequent Bright Light
• Consistent Low Light
• Total Darkness
Motion Transmission Interval
Unoccupied Transmission
Heartbeat Transmission
Interval (unoccupied)
EnOcean Equipment Profile
RF Communications
Dimensions
Weight
Mounting Height
Environment
Agency Compliance
* Natural bright light (2000 lux) or a battery can be temporarily used to
significantly shorten startup charge times. Specified lux values are for typical
fluorescent lighting. Lux level requirements for LED and other types may vary.
For lux reference, OSHA standards require a minimum of 323 lux for office
areas.
Installation Guide
Model: EOSC
Indoor light energy harvesting
Supplemental battery (CR2032)
2-wire connector for external power
or remote solar cell (3-5 VDC)
80 ft. (25 m)
34 ft. (10 m) diameter
(refer to coverage diagrams)
(operation from empty energy storage)
5 minutes @ 200 lux
1.5 hours @ 2000 lux
3 hours per 24 hours @ 200 lux
25 hours @ 200 lux
80 hours
(after full charge)
50 lux (for auto-off only)
20 yrs
(with 200 lux for 2 hrs/day, 7 days/week)
15 yrs
(with 65 lux for 5 hrs/day, 7 days/week)
6.5 yrs
2 minutes
10 and 30 minutes since last motion
Disabled by default
Enabled = heartbeat @ 1 hr interval
(after unnocupied messages)
A5-07-01 (EEP)
EnOcean 902 MHz (EOSCU)
EnOcean 315 MHz (EOSCC)
EnOcean 868 MHz (EOSCA)
EnOcean 928 MHz (EOSCJ)
6.30" L x 2.35" W x 1.47" D
(160mm x 60mm x 37mm)
4.4 oz. (125 g)
7-10 feet (2 - 3m) recommended
Indoor use only
14° to 104°F (-10° to 40°C)
20% to 95% relative humidity
(non-condensing)
FCC, IC, RoHS, CE, R&TTE
