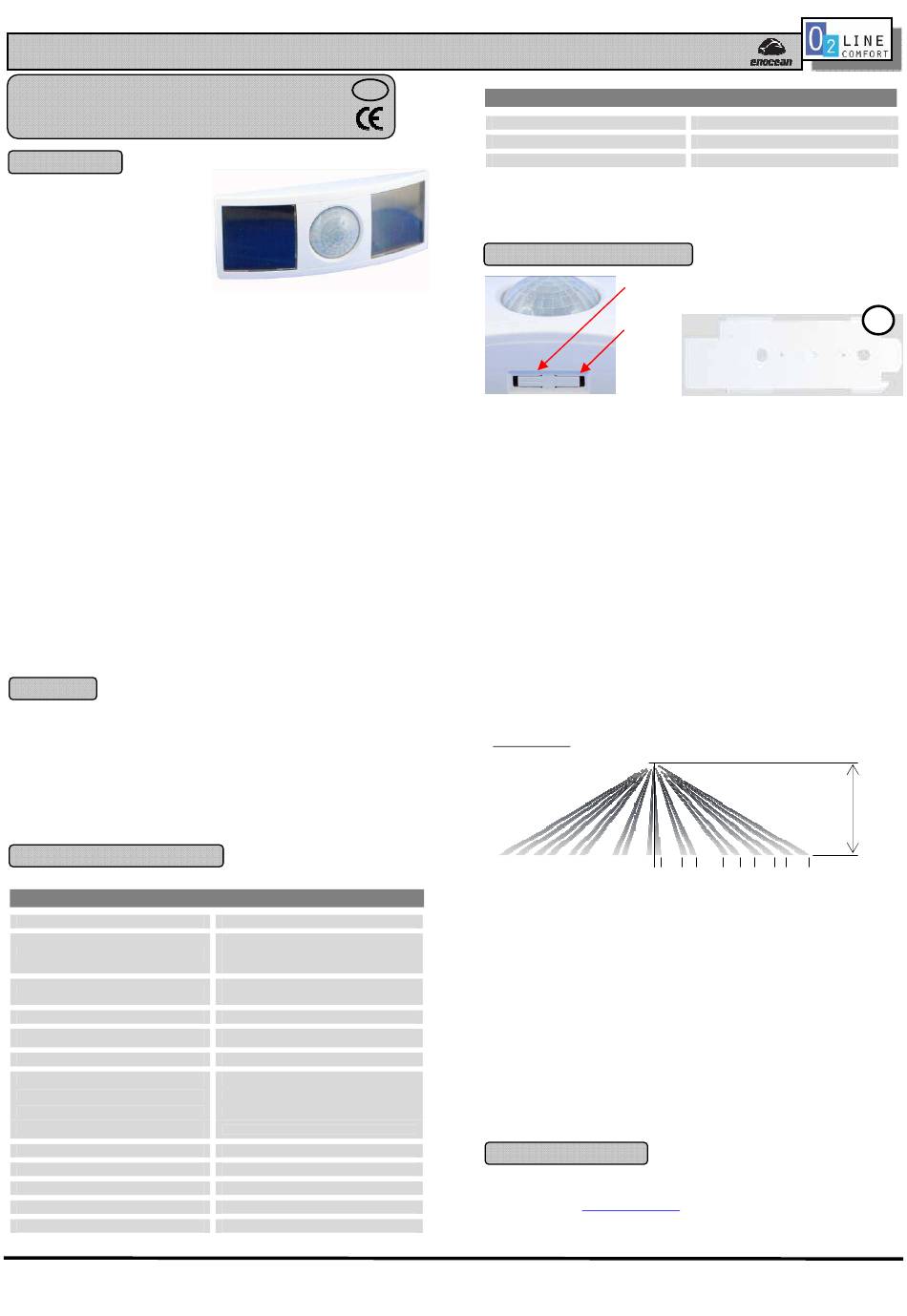

Installation and operating manual
EnOcean ceiling mounted presence detector
Ref. 10020051
1. General
1.1 Use
0
The detector LINE 10020051
2
detects the presence (movement) of
persons. It forms an integral part of
0
the TRI SYS radio system.
2
Its installation is fully wireless
because the presence detector has
solar cells with which it can supply
the energy necessary for its operation.
Note:
- No batteries or maintenance required!
- Read the operating manual carefully before initial use.
1.2 Guarantee terms
This operating manual is an integral part of the device and our guarantee terms.
It must always be delivered to the user. We reserve the right to modify the
technical design of these devices without warning. TRI
manufactured and their quality checked by making use of the latest technologies
and taking into account the applicable national and international directives. If
nevertheless a fault arises, TRI
follows, without prejudicing the rights of the end customer that arise from the
sales contract with his reseller:
If the event of exercising of a legitimate and regular right, TRI
sole discretion, rectify the device fault or supply a fault-free device. Any claim
beyond this and all claims for consequential damages are excluded.
A legitimate fault exists if the device cannot be used at the time of delivery to the
end customer because of a design or manufacturing defect or if its practical use
is severely limited. The guarantee is void in cases of natural wear and tear,
incorrect use, incorrect connection, where the device has been repaired or
external influence. The period of guarantee is 24 months (from the date of
invoicing). French law applies to the regulation of guarantee rights.
1.3 Recycling of the device
To recycle the device, conform to the legislation and standards in force in the
country of use.
2. Safety
Observe the following points:
• The laws, standards and directives in force.
• Best practice at the time of installation
• The device operating manual.
• An operating manual can only give general instructions. They must be
interpreted in the context of a specific installation.
The device is intended solely for use conforming to its purpose. Any repairs or
modifications by the user are forbidden! Do not use with other devices the
operation of which could endanger people, animals or property.
3. Technical characteristics
General characteristics
Transmission frequency
Power supply
Minimum charging time
Time for complete charging
Operating time in total darkness
Detection range
Endurance without assistance
•
Standard luminosity
•
Low luminosity
•
Total darkness
EnOcean Profile Equipment
Installation height
Operating environment
Marking
Size and weight
TOC1306NUEN_0913
0
SYS products are
2
0
SYS undertakes to remedy the default as
2
0
SYS, may at its
2
868.3 MHz
Solar cell (50-200 lux), optional
battery type CR2032 (<50 lux) or
external power supply 3-5V (DC)
20 minutes (>500 lux) or 5 minutes in a
well lit location with assistance
9h at 200 lux
48h (after complete charging)
12 m diameter
(in stand-alone operation)
15 years (200 lux for 2h/day, 5d/week)
10 years (50lux for 5h/day, 7d/week)
5 years
A5-07-01
2 to 3m (recommended)
-10° to 40°C, 20 to 95% relative
humidity (without condensation)
CE and R&TEE directive 1999/5/CE
160x60x37mm / 125g
EN
Range in buildings
Masonry
Reinforced concrete
Plasterboard / wood
Note: The signal strength between the detector and the receiver decreases as
the distance increases. Where there is a line of sight connection, the range is
approximately 30 m in corridors and 100 m in large workshops or halls. The
range can be increased with an
4. Installation and initial use
Take the required time to verify each of the points below to ensure optimum
operation of the detector with all of the other installation components.
4.1 Installation instructions
Withdraw the sensor from its packaging and place it in daylight for 20 minutes to
provide it with the required start-up power; if necessary install a CR2032 type
battery for five minutes in a well lit location.
▪ Ensure that the location provides adequate coherent light
▪ Position the sensor between 2 and 3 meters from the ground
▪ Avoid installing the detector close to a ceiling fan or suspended luminaires
▪ Take into account the use of the zone to be surveyed (traffic, work, rest, etc.)
▪ Allow for a minimum clearance of one metre from all heat sources (light bulbs,
convection air currents, ventilation systems, etc.)
▪ Identify the construction materials (metal, wall) in the detection zone which
could interfere with the RF signals.
A single
zones. However in certain situations, several sensors may be necessary to
ensure complete coverage.
4.2 Installation
The presence detector can be installed on most ceilings with single screws (not
supplied).
Detection cone
1. Decide where to install the presence detector.
2. Position the detector using a double glue line (not supplied) and use the test
modes (see section 5.2) to determine if the selected location is suitable
3. Remove the sensor from the support (1)
4. Use the support as a template to mark holes for drilling
5. Drill holes for 5mm wall plugs
6. Fix the support with screws (not supplied)
7. Slide the detector on to the support until it engages
NOTE: It is often easier to associate the detector with its receiver before it is
mounted on the ceiling.
4.3 Association
To associate or disassociate the detector:
1. Place the desired receiver in learn mode (refer to the installation guide for
this device).
2. Press once on the detector's LRN button.
5. Functions and
options
10020051
The
described in the document EnOcean Equipment Profiles EEP §A5-07-01
(consultable under www.enocean.com).
20m, through 3 walls at most
10m, through 1 wall/ceiling at most
30m, through 5 walls at most
0
LINE repeater.
2
Button SET
(illuminated surface)
Button
LRN
occupation sensor provides
:
0 0.3 0.9 1.4 2.3
detector transmits the presence information using the frame
1
adequate coverage for most
3 m
0
2.8 3.3 4 4.3 5.1 m
