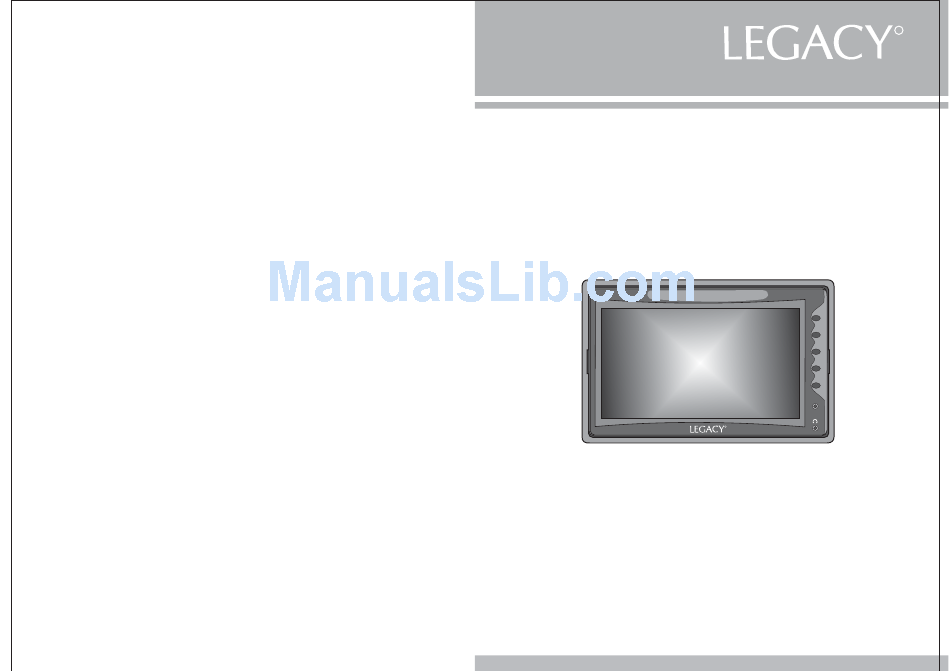

- Page 1 WWW.LEGACYCARAUDIO.COM L7HM 7 Inch Headrest TFT-LCD Monitor L7HM POWER MENU O P E R AT I O N M A N U A L...
-
Page 2: Specifications
Specifications Power Requirements D C 1 2 ~ 1 4 . 4 V Power Consumption Screen Size 7 T F T- L C D Screen Format 1 6 9 W i d e Resolution Pixel 1 4 4 0 * 2 3 4 A/V Inputs V i d e o I n p u t 3 E A Dimensions... -
Page 3: Troubleshooting Check List
Troubleshooting check list * Please make these simple checks before calling for assistance. * If the TV is to be used in conjunction with any other equipment, read the other product s instruction manual. * If you choose not follow the below checklist or any problems you are experiencing with this product are not solved, never attempt to repair a defective monitor yourself. - Page 4 Caution Read this page in detail in order to protect people s health or assets. Driver never operates while driving. Driver may cause car accident by watching monitor while driving. Do not disassemble the device. Use proper volume while driving. Do not watch the monitor for a long period of time without the engine running.
- Page 5 Remote Function AV1 /AV2 POWER AV1/AV2 KEY MENU MENU SELECT LCD MONITOR 41-20-1001 REMOTE CONTROL UNIT POWER Power ON/OFF AV1/AV2 Signal Select MENU Press this button for OSD menu. After that it is the ENTER button. Increase current option value Decrease current option value Installation POWER KEY...
- Page 6 Installation Metal bracket Locking knob STEP 1 Put the locking knob into the metal bracket. STEP 2 Adjust to the locking knob to select the desired angle. STEP 3 Connect the DC terrninal and RCA terrninal to the Wiring Harness. Please notice the true installation of the monitor holder TRUE FALSE...
