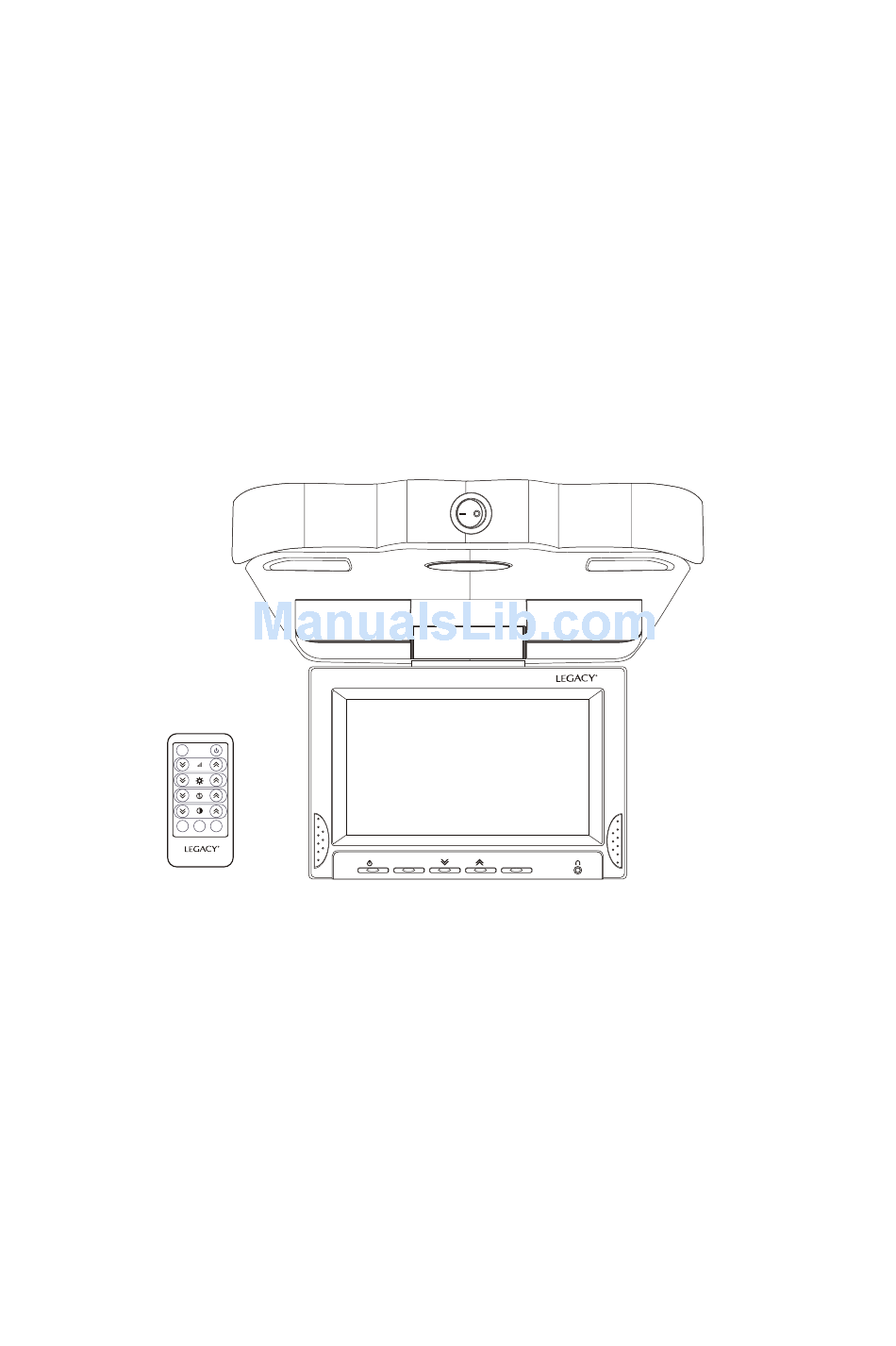

- Page 1 7.2 inch ROOF MOUNT LSWR7500 LSWR7500 Color LCD Monitor TIME V1/V2 V1/V2 www.legacycaraudio.com...
- Page 2 Precaution: 1.To prevent short-circuiting of the electrical system and cause serious damage to the unit or the vehicle,you are advised to follow the instructions carefully. 2.Should there be requirement to replace blown fuse,do remember to disconnect all power supply and switched off the unit before replacing it with a new one.Use only correct rating fuse to avoid damage the unit.
-
Page 3: Remote Control
LSWR7500 A.door light switch V1/V2 Panel A.Door light On/Off B.Power On/Off C.Active menu D.Negative adjustemnet E.Positive adjustment F.V1/V2 switch G.Earphone jack Remote control 1.Power On/Off 2.Volume - TIME 3.Volume + 4.Brightness - 5.Brightness + 6.Colour- 7.Colour + V1/V2 8.Contrast- 9.Contrast + 10.V1/V2 switch... -
Page 4: Specifications
Specifications: 7.2 Inch Screen size: NTSC System: DC12V+/-10%,<700m Power source/Consumption: Composition Video signal Video Input: 0 C~+60 C Operating Temperature: -10 C~+80 C Storage Temperature: Color LCD Display Method: 640X480 Resolution(HXV): Cold Cathode Fllament Tube Back light: Accessories 1Xmonitor 1XRemote controller 1XInstrtuction manual...
