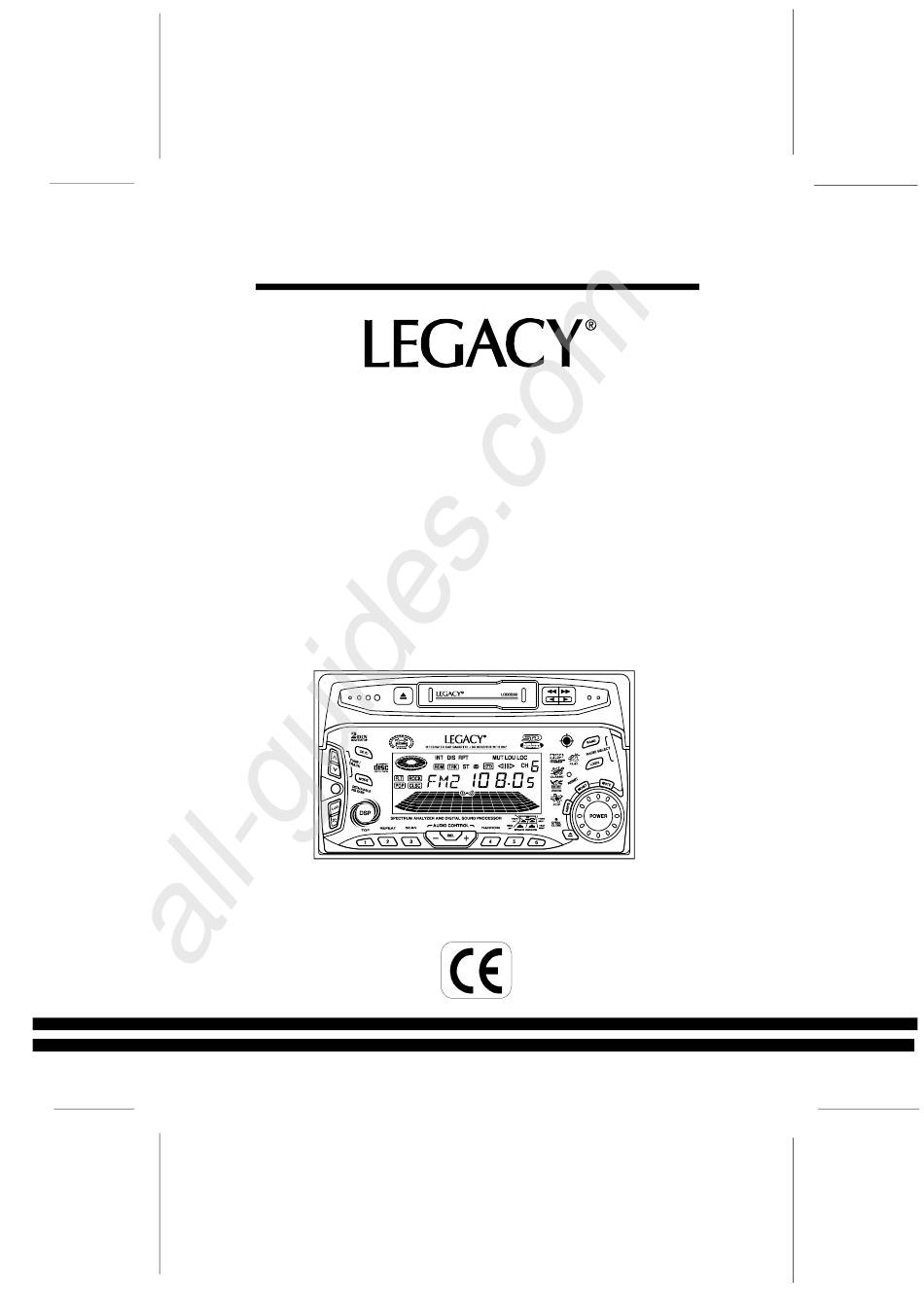

- Page 1 All manuals and user guides at all-guides.com OWNER'S MANUAL INTEGRATED CAR CASSETTE + CD PLAYER WITH DSP CONTROL SUPER POWER OUTPUT SLIDE-DOWN FACE DETACHABLE PANEL FM-AM FM-MPX RADIO RECEIVER WITH REMOTE CONTROL LCDCS92 MODEL: Page. 1 P / N : 570-111802-03...
-
Page 2: Before You Begin Installation
All manuals and user guides at all-guides.com BEFORE YOU BEGIN INSTALLATION Before you begin to install the car radio, please follow the below procedure in step by step. Otherwise, the CD Player can not be operated properly. Put the detachable panel back to the car radio as shown in Diagram A ( point 1 and 2 ). Press the slide down eject button ( Diagram A point 3 ) until the panel is in horizontal position as shown in Diagram B. -
Page 3: Location Of Controls
All manuals and user guides at all-guides.com LOCATION OF CONTROLS OPERATING INSTRUCTIONS POWER ON/OFF CONTROL Press this button to turn the power "ON" or "OFF". BAND SELECTOR Each time this button is pressed, the radio band is changed. The indication "FM1", "FM2", "FM3", "MW1" or "MW2" will appear on the display panel according to your selection. - Page 4 All manuals and user guides at all-guides.com CD EJECT BUTTON Press this eject button will eject the compact disc. Note: If you want to release the compact disc, press the release slide down button (# 24) first until the panel is in horizontal slide position (Diagram B).
-
Page 5: Wire Connection
All manuals and user guides at all-guides.com MODE CONTROL Press this button to select either in CD, TAPE or Radio mode. SLIDE DOWN EJECT BUTTON (Diagram D) Press this button to let the panel slide down from vertical position to horizontal position. The CD slot is shown. To put the panel back to origional position, use your fingers to push up the panel upwards until the panel is locked in vertical position. -
Page 6: Band Switch
All manuals and user guides at all-guides.com BAND SWITCH Use small screw driver to select either in Europe or in USA band stepping by moving the switch left or right. INSTALLATION 1. Install brackets and screws removed from your old radio (not provided with this radio). 2.
