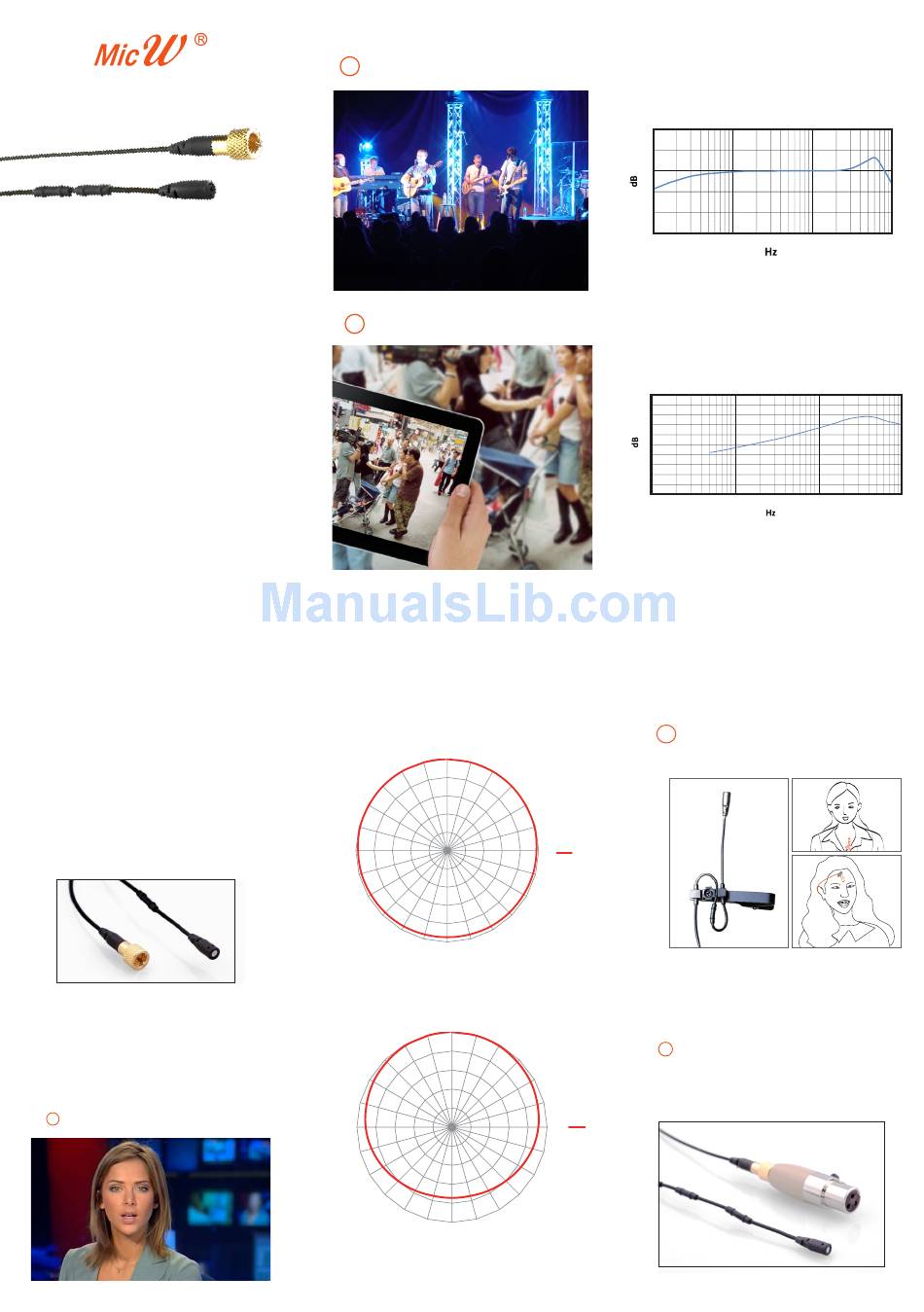

MicW Audio L825 User Manual

User's Manual
L825/L855
Lavalier microphones
www.micwaudio.com
1. INTRODUCTION
Welcome to the MicW L-Series of professional
microphones. We have been producing high quality
microphones for test, measurement and studio
recording for over 10 years. Our unique knowledge
of diaphragm technology has enabled us to offer you
very high quality products for audio applications.
The L-Series is MicW''s new professional Lavalier
range. With compact size and superior EMI
protection, the microphones deliver maximum
performance in situations where such a device needs
to be practically invisible. The Omni and Cardioid
pick-up patterns produce a warm and clear sound,
which makes the L-Series a well-suited, reliable
partner.
2. OPERATIONAL SAFETY
L-Series microphones use pre-polarized capsules that
are tested both at high temperatures and in very humid
conditions for over 24 hours prior to factory release.
The microphones are very resistant to temperature and
humidity. They can be safely operated in temperatures
ranging from -20℃ to 50℃ and in up to 95% humidity.

3. POWER SUPPLY

The L-Series has been designed with a Microdot
connector. MicW also provides several breakout
adaptors (see Microphone Installation) for a wide
range of wireless systems or XLR input applications.
4.APPLICATIONS
The omnidirectional L825 and cardioid L855 Lavalier
microphones are recommended for on air presentation
and video production. They are also durable enough for
ENG use. Their compact size makes them highly suitable
for a range of applications.
1 On Air Presentation
2 Stage and Theater
3 Shooting Video
The L-Series is ideal for capturing high quality audio with iOS
or Android smartphones and tablets
5.DIRECTIONAL CHARACTERISTICS
The L825 is an omnidirectional microphone.
The L855 is a cardioid microphone. Their
typical polar patterns are shown below
0
345
15
330 30
315
300
285
270
255
240
225
10db
210 150
195 165
180
L825 Polar Pattern
0
345
15
330
315
300
285
270
255
240
225
210
150
10db
195 165
180
L855 Polar Pattern

6. FREQUENCY RESPONSE

Typical frequency responses are shown in the
following charts
20
10
0
-10
-20
-30
20
20
15
10
5
0
-5
-10
-15
-20
-25
-30
20

7. MICROPHONE INSTALLATION

The L-Series can be combined with different
accessories for a range of purposes, as shown
below:
1
45
60
75
1kHz
90
105
120
135
For optimum performance results, the Lavalier microphone
should be positioned as closely as possible to the
sound source, so as not to be affected by clothing rustle.
Ensure that the mic is pointing towards the user's mouth.
Sometimes it may even be better to place the mic upside
down to avoid "popping" effects.
30
2
45
● LC131AK Microdot to TA3F for connection
60
to an AKG transmitter
75
1kHz
90
105
120
135
200 2000
Typical Frequency Response of
L825 at 5cm from the source
200 2000
Typical Frequency Response of
L855 at 5cm from the source
Clip installation and mic placement
Colar Clip:Cl028
Connector installation
20000
20000
