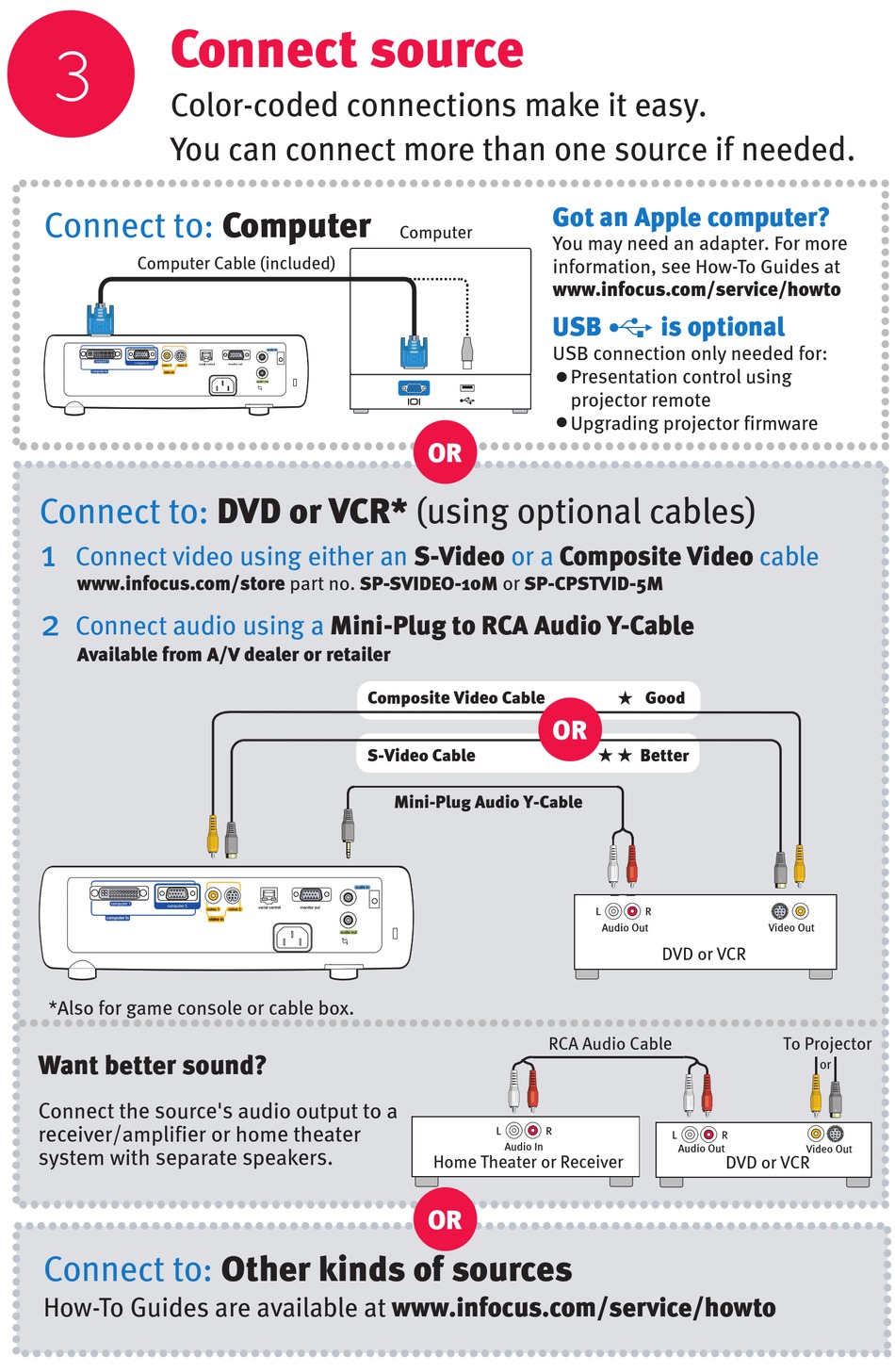

Connect source

3
Color-coded connections make it easy.
You can connect more than one source if needed.
Connect to:
Computer Cable (included)
Connect to:
1
Connect video using either an
www.infocus.com/store part no. SP-SVIDEO-10M or SP-CPSTVID-5M
2
Connect audio using a
Available from A/V dealer or retailer
*Also for game console or cable box.
Want better sound?
Connect the source's audio output to a
receiver/amplifier or home theater
system with separate speakers.
Connect to:
How-To Guides are available at www.infocus.com/service/howto
Computer
DVD or VCR* (using optional cables)
Mini-Plug to RCA Audio Y-Cable
Composite Video Cable
S- Video Cable
Other kinds of sources
Got an Apple computer?
Computer
You may need an adapter. For more
information, see How-To Guides at
www.infocus.com/service/howto
USB
USB connection only needed for:
OR
S-Video or a Composite Video
OR
Mini-Plug Audio Y-Cable
RCA Audio Cable
L R
Audio In
Home Theater or Receiver
OR
is optional
Presentation control using
projector remote
Upgrading projector firmware


Good


Better
L R
Audio Out
DVD or VCR
DVD or VCR
cable
Video Out
To Projector
or
