FreeWave Quick Start Guide Quick Start Manual

This Quick Start Guide provides instructions for the initial setup of a
WavePoint 10e. The procedures provide basic information about how to
place the WavePoint 10e in a LAN and to establish a wireless link between
radios. For detailed information about all the networking functionality and
network deployment scenarios available, download the
Manual from www.freewave.com/home/WavePointLogin.
Note: The information in this Quick Start Guide is written for IPv4
addressed networks. If the network uses IPv6 addressing, see
the WavePoint 10e

Accessories

The items shipped in the box are:
The WavePoint 10e device.
l
The WavePoint 10e Quick Start
l
Guide.
These options are available and, if ordered, are included in the shipping box:
an RJ-45-to-DB9 serial cable and a mounting kit .
Contact a FreeWave reseller or FreeWave Technical Support if the package is
missing parts or any parts were damaged during shipping.
Note: Antennas are shipped separately.
Requirements
Installation Settings
Attention Network Administrator! Complete the information in this table.
SSID: _____________________________ (8-64 ASCII characters. The SSID field is case sensitive.)
Security Mode:
IP Address:
DHCP Setup Mode:
QSG0023AA Rev A 04/23/2014
WavePoint 10e
WavePoint 10e
User Manual.
A CAT 5e Ethernet cable.
l
An AC power adapter.
l
Security Key: (This field is case sensitive.)
Subnet Mask:
Max Range: (2x the distance of the longest link in
Km)

Equipment and Configuration

This equipment and configurations are needed prior to the initial
10e setup and installation:
A computer or laptop with:
l
Windows 7 operating system.
l
A web browser to access the web pages for configuration.
l
Supported browsers include: Microsoft Internet Explorer 9 and 10,
l
User
Firefox 27, Google Chrome, Safari, and Opera.
Note: Configuration pages are NOT optimized for browsers on
mobile devices (e.g., tablets, smart phones, etc.)
A device with wireless capability to verify the wireless connection.
l
A NEMA-4 rated enclosure (for outdoor installations only).
l
A screwdriver for attaching mounting brackets and power connector.
l
FreeWave recommends a Path Study, as applicable, for the network site.
l
WavePoint 10e

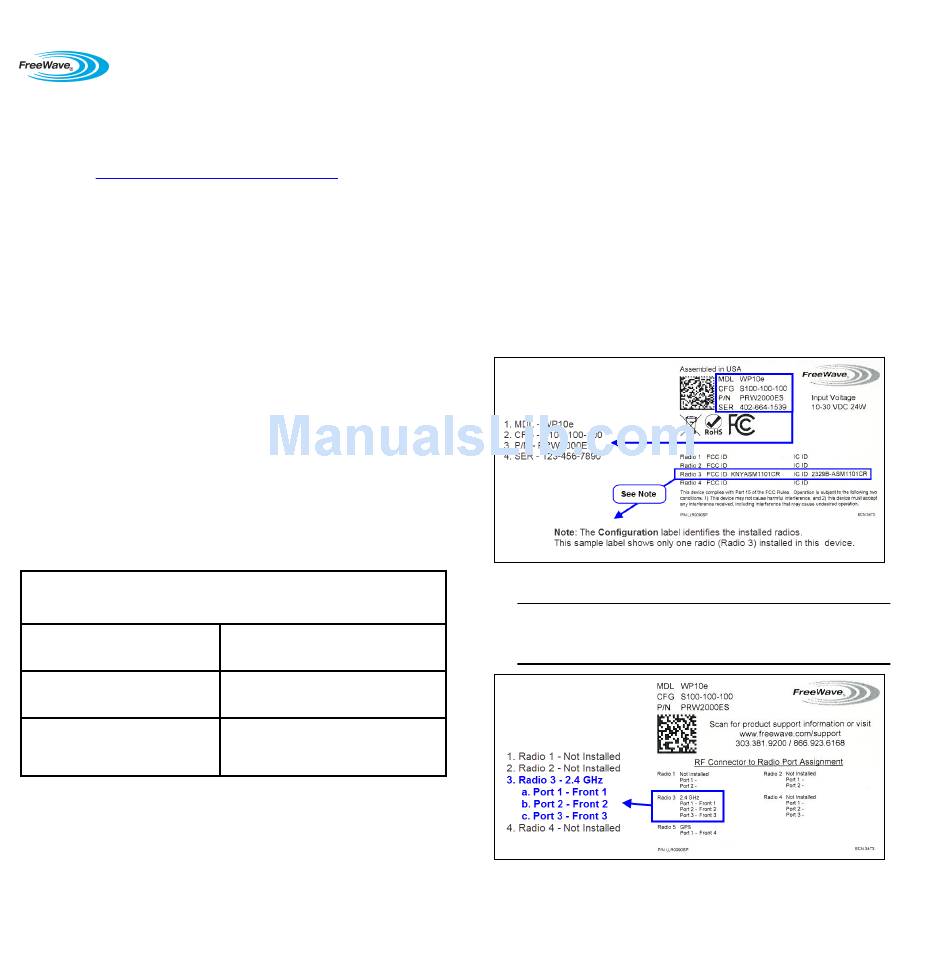

Sample: Configuration Label
Sample: Antenna Port Assignment Label
Important: The information on the Antenna Port Assignment
label is critical for correct antenna connections and operation of the
WavePoint™ device.
Note: The Port Assignment label designates which RF ports (the
WavePoint™ TNC connectors) are used by which radio.
Labels
Copyright © 2014 FreeWave Technologies, Inc.
WavePoint
