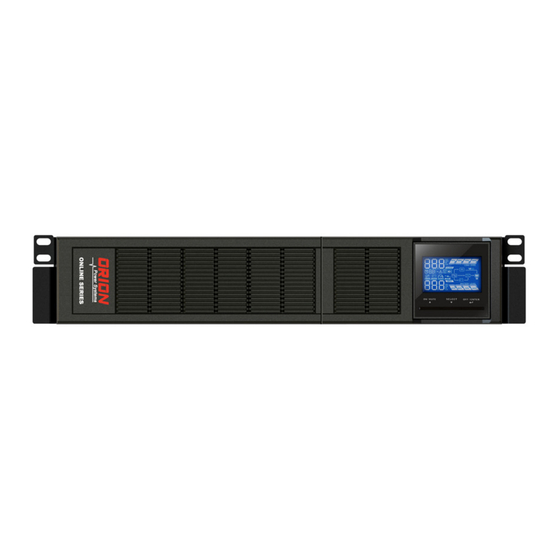

- Page 1 Online RT/RTX User Manual Online UPS 1K/1.5K/2K/3K...
-
Page 2: Table Of Contents
Table of Contents 1. Important Safety Warning....................1 1-1. Transportation .....................1 1-2. Preparation......................1 1-3. Installation ......................1 1-4. Operation ......................1 1-5. Maintenance, service and faults................2 2. Installation and setup....................3 2-1 Rear panel view ....................3 2-2. Operating principle ....................4 2-3. Install the UPS .....................4 2-4. -
Page 3: Important Safety Warning
1. Important Safety Warning Please comply with all warnings and operating instructions in this manual strictly. Save this manual properly and read carefully the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully 1-1. -
Page 4: Maintenance, Service And Faults
circuit. This circuit must be separated from any hazardous voltage circuits by reinforced insulation. 1-5. Maintenance, service and faults The UPS system operates with hazardous voltages. Repairs may be carried out only by qualified maintenance personnel. Caution - risk of electric shock. Even after the unit is disconnected from the mains ... -
Page 5: Installation And Setup
2. Installation and setup NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Please keep the original package in a safe place for future use. 2-1 Rear panel view 1K/1.5K 2K NEMA 3K NEMA 1. -
Page 6: Operating Principle
2-2. Operating principle The operating principle of the UPS is shown as below The UPS is composed of mains input, TVSS and EMI/RFI filters, rectifier/PFC, inverter, battery charger, DC-to-DC converter, battery, dynamic bypass and UPS output. 2-3. Install the UPS For safety consideration, the UPS is shipped out from factory without connecting battery wires. - Page 7 Install UPS and external battery Tower Installation Install UPS alone Step 1 Step 2 Step 3 Install UPS and external battery NOTE: When installing the UPS or battery pack with feet, please keep 70mm distance from the edge of the unit.
-
Page 8: Setup The Ups
2-4. Setup the UPS Step 1: External battery connection (for X models only) Connect one end of external battery cable to UPS unit and the other end to battery pack. See below chart for detailed connection. Step 2: UPS input connection Plug the UPS into a two-pole, three-wire, grounded receptacle only. - Page 9 To allow for unattended UPS shutdown/start-up and status monitoring, connect the communication cable one end to the USB/RS-232 port and the other to the communication port of your PC. With the monitoring software installed, you can schedule UPS shutdown/start-up and monitor UPS status through PC.
-
Page 10: Battery Replacement
2-5 Battery Replacement NOTICE: This UPS is equipped with internal batteries and user can replace the batteries without shutting down the UPS or connected loads.(hot-swappable battery design) Replacement is a safe procedure, isolated from electrical hazards. CAUTION!! Consider all warnings, cautions, and notes before replacing batteries. Note: Upon battery disconnection, equipment is not protected from power outages. -
Page 11: Battery Kit Assembly (Option)
2-6 Battery Kit Assembly (option) NOTICE: Please assemble battery kit first before installing it inside of UPS. Please select correct battery kit procedure below to assemble it. 2-battery kit Step 1: Remove adhesive tapes. Step 2: Connect all battery terminals by following below chart. - Page 12 4-battery kit Step 1: Remove adhesive tapes. Step 2: Connect all battery terminals by following below chart. Tapes Tapes Step 3: Put assembled battery packs on Step 4: Cover the other side of plastic shell as one side of plastic shells. below chart.
-
Page 13: Operations
3. Operations 3-1. Button operation Button View Button Function Turn on the UPS: Press and hold ON/Mute button for at least 2 seconds to turn on the UPS. Mute the alarm: After the UPS is turned on in battery mode, press and hold this button for at least 5 seconds to disable or enable the alarm system. -
Page 14: Lcd Panel
3-2. LCD Panel Display Function Remaining backup time information Indicates the remaining backup time in pie chart. Indicates the remaining backup time in numbers. H: hours, M: minute, S: second Fault information Indicates that the warning and fault occurs. Indicates the warning and fault codes, and the codes are listed in details in 3-5 section. -
Page 15: Audible Alarm
Indicates the Battery level by 0-25%, 26-50%, 51-75%, and 76-100%. Indicates the battery is fault. Indicates low battery level and low battery voltage. Input & Battery voltage information Indicates the input voltage or frequency or battery voltage. Vac: Input voltage, Vdc: battery voltage, Hz: input frequency 3-3. -
Page 16: Ups Setting
3-5. UPS Setting There are three parameters to set up the UPS. Parameter 1: It’s for program alternatives. Refer to below table. Parameter 2 and parameter 3 are the setting options or values for each program. 01: Output voltage setting ... - Page 17 04: ECO enable/disable Interface Setting ENA: ECO mode enable DIS: ECO mode disable(Default) 05: AECO enable/disable Interface Setting ENA: Advanced ECO mode enable DIS: Advanced ECO mode disable(Default) 06: Bypass mode enable/disable when UPS is off Interface Setting ENA: Bypass mode is enabled when UPS is off DIS: Bypass mode is disabled when UPS is off (Default)
- Page 18 09: Acceptable input voltage range setting Interface Setting For 200/208/220/230/240 VAC models, you may choose the following selection for acceptable input voltage range: 110/300 flashing in turns: The acceptable input voltage range is from 110V to 300V. 160/260 flashing in turns: The acceptable input voltage range is from 160V to 260V.
-
Page 19: Operating Mode Description
3-6. Operating Mode Description Operating Description LCD display mode Online mode When the input voltage is within acceptable range, UPS will provide pure and stable AC power to output. The UPS will also charge the battery at online mode. ECO mode When the input voltage is within setting (Efficiency range (±3%Vo max), UPS will bypass... -
Page 20: Faults Reference Code
Standby mode UPS is powered off without output power, but the battery still can be charged. Fault mode The UPS is in fault mode when no output power is supplied from the UPS and the fault icon flashes on the LCD display, although the information of UPS can be displayed in the screen. -
Page 21: Troubleshooting
4. Troubleshooting If the UPS system does not operate correctly, please solve the problem by using the table below. Symptom Possible cause Remedy No indication and alarm even The AC input power is not Check if input power cord though the main is normal. connected well. - Page 22 Symptom Possible cause Remedy Fault code is shown as 43 and The The UPS shut down Remove excess loads from automatically because of UPS output and restart it. icon is lighting on LCD overload at the UPS output. display and alarm is continuously sounding.
-
Page 23: Storage And Maintenance
5. Storage and Maintenance Operation The UPS system contains no user-serviceable parts. If the battery service life (3~5 years at 25°C ambient temperature) has been exceeded, the batteries must be replaced. In this case, please contact your dealer. Be sure to deliver the spent battery to a recycling facility or ship it to your dealer in the replacement battery packing material. -
Page 24: Specifications
6. Specifications MODEL DC1000RT DC1000RTX DC1500RT DC1500RTX DC2000RT DC2000RTX DC3000RT DC3000RTX 1000 VA 1000 VA 1500 VA 1500 VA 2000 VA 2000 VA 3000 VA 3000 VA Capacity 800 W 800W 1200 W 1200 W 1600 W 1600 W 2400 W... - Page 25 Orion Power Systems Service and Technical Support If you have any problems or questions with the UPS, call your local distributor or Orion Power Systems technical support at the following telephone number : In the United States: 1-877-385-1654 Please have the following information ready when you call:...
