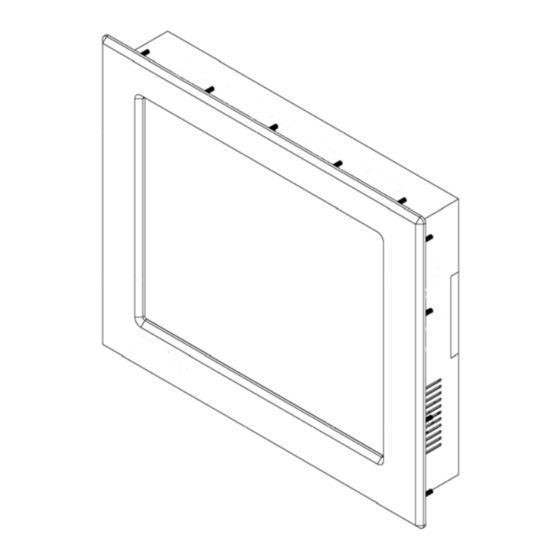

- Page 1 Solutions for Demanding Applications VARTECH S Y S T E M S I N C. 17.0” Panel Mount PC Model VTPC170P / PSS User’s Guide Read these instructions completely before attempting to operate your new Panel Mount PC...
- Page 2 Revision History Date Rev No Summary Page 8/11/08 First Issue 10/07/08 Revised panel mounting drawing 12/08/08 Identify ports on bottom panel view 7/09/09 Revised Detail A, connector view & system spec. 5 thru 8 12/07/12 Revised mechanical drawing w/ PCI/PCIe options 17.0 Panel Mount PC 486-0003-01-03...
- Page 3 Safety Instructions Read the Safety Instructions carefully and keep it for use later. The chassis metalwork of the module must be installed properly to the main earthing termination for Class 1 equipment. Care must be exercised in the application of the system to prevent overheating. Ensure that the ambient temperature around the system does not exceed 60°C and provide adequate means of ventilation to achieve this.
-
Page 4: Lcd Monitor
Standard Technical Specifications: LCD Monitor: Size / Type 17.0” XGA TFT LCD 1280 x 1024 Native Resolution Contrast Ratio 800:1 Viewing Angles Horizontal: 160° Vertical: 160° Pixel Pitch 0.264mm Brightness (typical) 300 cd/m² Response Time (typical) Colors Supported 16.7 million Computer System: Processor Intel Pentium Dual Core Processor T4500 2.30 GHz 800MHz FSB... - Page 5 5 to 65°C, 28% RH NC Installation of Your Panel PC Packaged with each carton will be: 1 - VTPC170P / PSS 1 - AC Power Cable 1 - #10-32 Mounting Hardware 1 - Users Guide (Printed or on CD)
- Page 6 ATTENTION: Mounting nuts must be tightened to a torque of 24 inch-pounds to provide a proper panel seal and avoid potential damage. Vartech Systems assumes no responsibility for water or chemical damage to the monitor or other equipment within the enclosure due to improper installation.
- Page 7 Panel Mount Drawing: Detail –A– Connections to the Panel Mount PC Bottom Rear View -Connector Panel- 17.0 Panel Mount PC 486-0003-01-03...
- Page 8 Power Connection (Power In) The Panel Mount PC includes an AC line cord which is 6ft long. The power input receptacle is located on the bottom rear panel of the system. Serial Connections (COM 1-3) The Panel Mount PC is supplied with three serial connectors configured for RS-232. The connector is a 9 pin female connectors and can be set up for any baud rate from 300 to 19.2 baud.
- Page 9 Panel Mount PC clear and free of excessive dirt or other contaminants. Do not use water or any liquids on the Panel Mount PC. For Additional Assistance Contact Your VarTech Sales Representative Vartech Systems, Inc. 11529 Sun Belt Ct. Baton Rouge, LA 70809 800-223-8050 Fax: 225-297-2440 www.vartechsystems.com...
