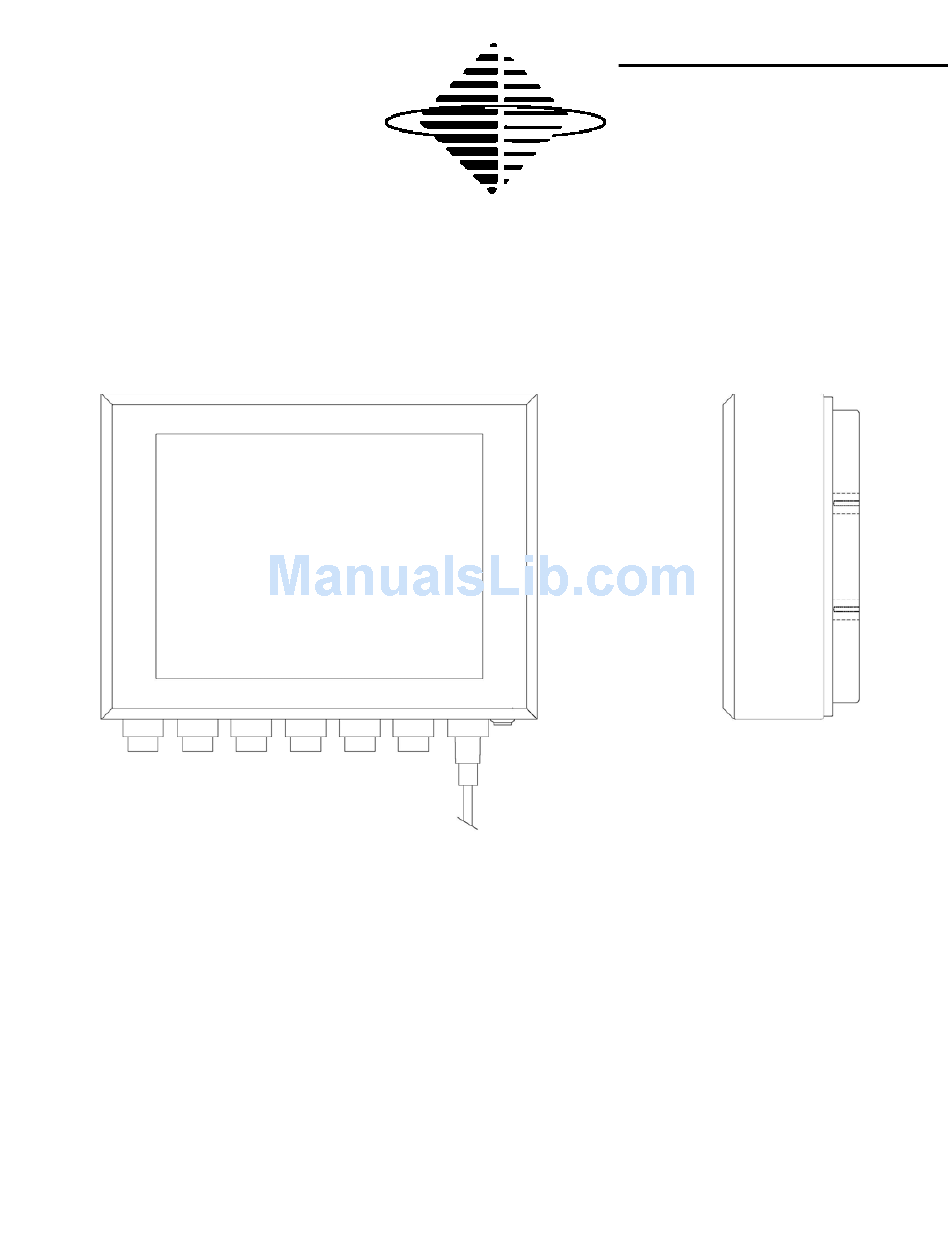

- Page 1 S Y S T E M S I N C. 15.0” Enclosed VESA Mount PC Model VTPC150V / VS / VDC / VSDC / VHB / VSHB User’s Guide Read these instructions completely before attempting to operate your new VESA Mount PC...
- Page 2 Revision History Date Rev No Summary Page 03/15/08 First Issue 07/22/08 Revised Enclosure & Specifications 5 & 6 10/31/08 Added VHB & VSHB versions 1, 4 – 7 07/10/09 Revised Detail A 08/05/09 Added VDC & VSDC versions 6 & 7 15.0 Enclosed VESA Mount PC 486-0007-00-04...
- Page 3 Safety Instructions Read the Safety Instructions carefully and keep it for use later. The chassis metalwork of the module must be installed properly to the main earthing termination for Class 1 equipment. Care must be exercised in the application of the system to prevent overheating. Ensure that the ambient temperature around the system does not exceed 60°C and provide adequate means of ventilation to achieve this.
- Page 4 Standard Technical Specifications: LCD Monitor: STANDARD/Dual Core VERSION: Size / Type 15.0” XGA TFT LCD Native Resolution 1024 x 768 Contrast Ratio 600:1 Viewing Angles Horizontal: 140° Vertical: 120° Pixel Pitch 0.294mm Brightness (typical) 400 cd/m² Response Time (typical) Colors Supported: 16.7 million HIGH-BRIGHT VERSION: Size / Type...
- Page 5 Standard Computer System: Processor Intel® Atom™ N270, 1.6 GHz Processor with a 533 Mhz FSB System Memory DDR2 533 SO-DIMM 1 GB (system max 2GB) BIOS AMI BIOS Hard Drive 500 GB SATA (system max 2x SATA) Operating System Microsoft Windows XP Professional (SP3) Expansion Slots 1x PCI Express Mini Card I/O Ports...
- Page 6 Installation of Your Enclosed VESA Mount PC Packaged with each carton will be: 1 - VTPC150V / VS / VDC / VSDC / VHB / VSHB 1 - Users Guide (Printed or on CD) Cables Provided (Only cables pertaining to the ordered I/Os will be provided )
- Page 7 ATTENTION: Mounting hardware must be tightened to a torque of 15 inch-pounds to provide a proper panel mount and avoid potential damage. Vartech Systems assumes no responsibility for water or chemical damage to the monitor or other equipment within the enclosure due to improper installation.
- Page 8 Connections to the Enclosed PC Bottom Rear View - Connector Panel - Power Connection (Power In) The Enclosed VESA Mount PC includes an AC line cord which is 6ft long. The power input receptacle is located on the bottom rear panel of the system. Serial Connections (COM 2 - 3) The Enclosed VESA PC is supplied with a serial connector configured for RS-232.
- Page 9 Keep the area around the Enclosed VESA Mount PC clear and free of excessive dirt or other contaminants. For Additional Assistance Contact Your VarTech Sales Representative Vartech Systems, Inc. 11529 Sun Belt Ct. Baton Rouge, LA 70809 800-223-8050 15.0 Enclosed VESA Mount PC...
- Page 10 Fax: 225-297-2440 www.vartechsystems.com 15.0 Enclosed VESA Mount PC 486-0007-00-04...
