Summary of Contents for VarTech Systems VT170ESC

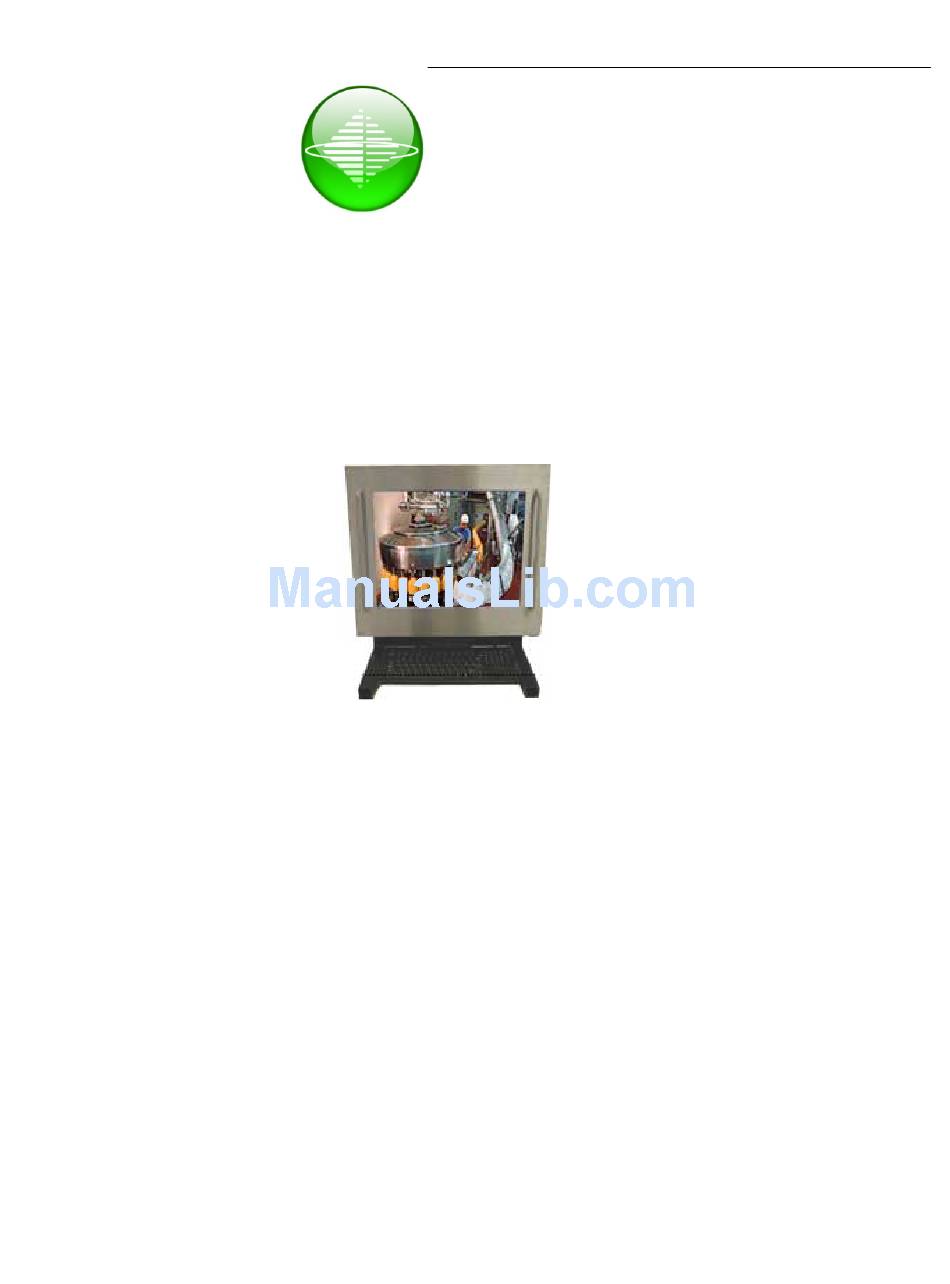

- Page 1 Solutions for Demanding Applications VARTECH S Y S T E M S I N C. Industrial CRT and Flat Panel Displays VT170ESC & VT190ESC NEMA 4X Enclosed All-In-One Computer User’s Guide Read these instructions completely before attempting to operate your new Color Display...
- Page 2 Model Number: VT170ESC ______ (17” display) VT190ESC ______ (19" display) Serial Number: ________________________________ Copyright © 2006. All rights reserved. January 2006 VT170 & 190ESC 150-113...
-
Page 3: Table Of Contents
Rack or Cabinet Mount Outdoor Installation Installation Hardware Wiring Requirements Connecting Power CHAPTER 3: MAINTENANCE AND REPAIR Cleaning Preventive Maintenance Check Every Three Months APPENDIX A: SUPPORT INFORMATION VarTech Systems, Inc. Technical Support VarTech Systems, Inc. Limited Warranty VT170 & 190ESC 150-113... -
Page 4: Chapter 1: Introduction And Overview
If any packaging material is damaged, notify the local carrier and submit a report to VarTech Systems, Inc.. Remove the packing slip and confirm that all ordered components are present. Make sure no spare parts or accessories are discarded with the packing material. Please do not return equipment to VarTech Systems without a Return Material Authorization (RMA) number. -
Page 5: Technical Specifications
Figure 1 ESC series computer Technical Specifications Fans Dual 50 cfm (19 lps) 12 VDC, 230 mA Stainless steel ball bearings; locked rotor and polarity protected Operating temperature range: –10°C to 70°C UL Yellow Card recognized; CSA certified Environmental Temperature (Per IEC 68-2-1,2,3,14): Operating 0°C to +50°C*;... -
Page 6: Chapter 2: Installation
Chapter 2: Installation Installation Requirements Mounting hardware supplied for easy installation. When determining the location for mounting, keep in mind the weight of the unit, available power connections, and access to peripheral equipment necessary for system operation. If installing a system outdoors, be certain to read the recommendations for outdoor installation provided elsewhere in this manual. -
Page 7: Outdoor Installation
2) Make certain the unit mounting hardware is not compromised by the rack or cabinet installation. 3) Verify that the connection of the equipment to the supply circuit does not overload the circuit, and that a reliable earth ground is maintained for the power connection. Other mounting options, such as desk stands, are available. -
Page 8: Wiring Requirements
1) Identify the specific location and position at which the unit is to be installed. Make sure to allow sufficient clearance for conduit and/or cable connections. Mark the mounting surface where the top edge and one side of the enclosure will be aligned. 2) The mounting points of the unit are located in a rectangular pattern 18.5”... - Page 9 These standard connectors are intended to be used with flexible, nonmetallic conduit or tubing. It is strongly recommended that computer installations include a flexible section of conduit, for example, three feet of conduit or two feet of tubing to allow the shock and vibration isolators a full range of motion. Caution! The conduit connectors must be sealed against adverse environments.
- Page 10 Caution! The incoming power switch must be set correctly before powering the computer. Failure to do so may cause serious damage to the equipment and or injury to personnel. 4) Connect the ground wire to the ground stud in the bottom of the enclosure as shown in Figure 2. A wire runs from this stud to the terminal block.
-
Page 11: Chapter 3: Maintenance And Repair
Chapter 3: Maintenance and Repair Very little maintenance is required. The enclosure is watertight but should be checked regularly to ensure that all components are operating properly. Contact VarTech for assistance and/or to order spare parts. Cleaning Systems are housed in stainless steel enclosures. The enclosure may be cleaned with a variety of industrial cleaners or solvents. -
Page 12: Appendix A: Support Information
VarTech Systems, Inc. warrants this enclosure against defects in material or workmanship, provided the serial number appears on the product and is as originally configured by VarTech. If failure of the product has resulted from accident, abuse, or misapplication, VarTech Systems, Inc. shall have no responsibility under this limited warranty.
