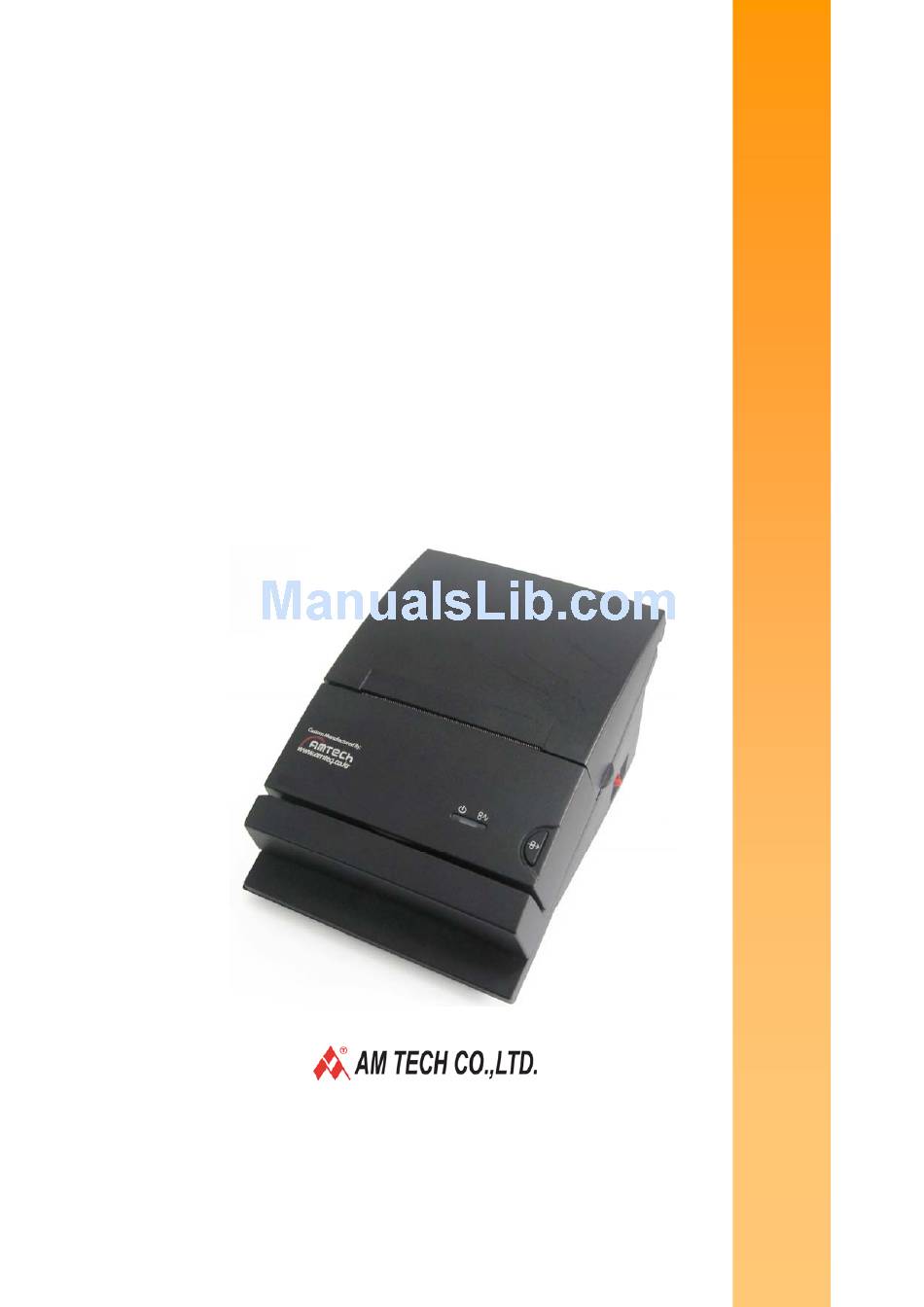

- Page 1 ’ ’ http://www.amteq.co.kr...
- Page 2 SRP-IV Record of Revisions Revision Version Date DESCRIPTION 1.00 26-Jan-2008 Preliminary 1.10 30-Mar-2009 Changing Power Spec. Upgrade printing speed - 2 -...
-
Page 3: Table Of Contents
SRP-IV Table of Contents INTRODUCTION Specifications & Features Technical Information Product Features The name of parts and Accessories 3. Installation & Usage 3.1 Paper Loading 3.2 Supplying Power to Printer 3.3 Interface cable connection 3.4 How to do self test... -
Page 4: Introduction
While guaranteeing that the information contained in it has been carefully checked, AM TECH CO., LTD. and other entities utilized in the realization of this manual bear no regarding any errors found in it or suggestions on how it could be improved are appreciated. -
Page 5: Product Features
SRP-IV 1.2 Product Features This Printer is a suitable for large volume tasks. Really simple paper loading, just drop-in and printing out. High Resolution This printer boosts printing precise characters and clear image at high resolution of 8dots/mm. Easy Paper Loading Paper roll can be loaded easily and replaced quickly by clamshell design. -
Page 6: The Name Of Parts And Accessories
SRP-IV 2. The name of parts and accessories Top Cover Receipt Slot (with Tear Bar) Open Knob Feed Button Error LED Power LED Power port Power Button Serial Port (Serial Cable, 9pin-9pin) (24V 2A Power adaptor) - 6 -... -
Page 7: Installation & Usage
SRP-IV 3. Installation & Usage 3.1 Paper Loading Push ‘both knobs’ of cover upward to open and put the paper roll into the printer and, close cover. Make sure that the paper cutting direction is correct like picture ④ ○ 1 ○... -
Page 8: Supplying Power To Printer
SRP-IV 3.2 Supplying Power to Printer Insert ‘Power supply connector’ into the ‘power port’ (red circle) 3.3 Interface Cable Connection Prepare dedicated Serial cable. Insert ‘9 pin end’ into ‘Serial port’ (red circle). Connect the other end of the cable to the device to be connected 3.4 How to do Self test... -
Page 9: Printer Status
SRP-IV 4. Printer Status ◎ Power LED Status Description Power LED is “On” Power light is “Green LED “and Printer is ready to work Power LED is ”Off” Power Supplier is not connected with printer or Power switch is off. -
Page 10: Cleaning
SRP-IV 6. Cleaning If the interior of printer is mess the printing quality can be bad. In such case please follow the instruction below to clean the printer. Before cleaning the printer, disconnect the power supply and make sure that the printer is off.
