AM TECH mobile pro advance User Manual

Direct line thermal printing
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
U
s
e
r
s
U
s
e
r
s
'
'
F
o
F
o
M
o
b
i
l
e
P
r
o
M
o
b
i
l
e
P
r
o
M
a
n
u
a
l
M
a
n
u
a
l
r
r
A
d
v
a
n
c
e
A
d
v
a
n
c
e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mobile pro advance and is the answer not in the manual?

Questions and answers

Related Manuals for AM TECH mobile pro advance

Summary of Contents for AM TECH mobile pro advance

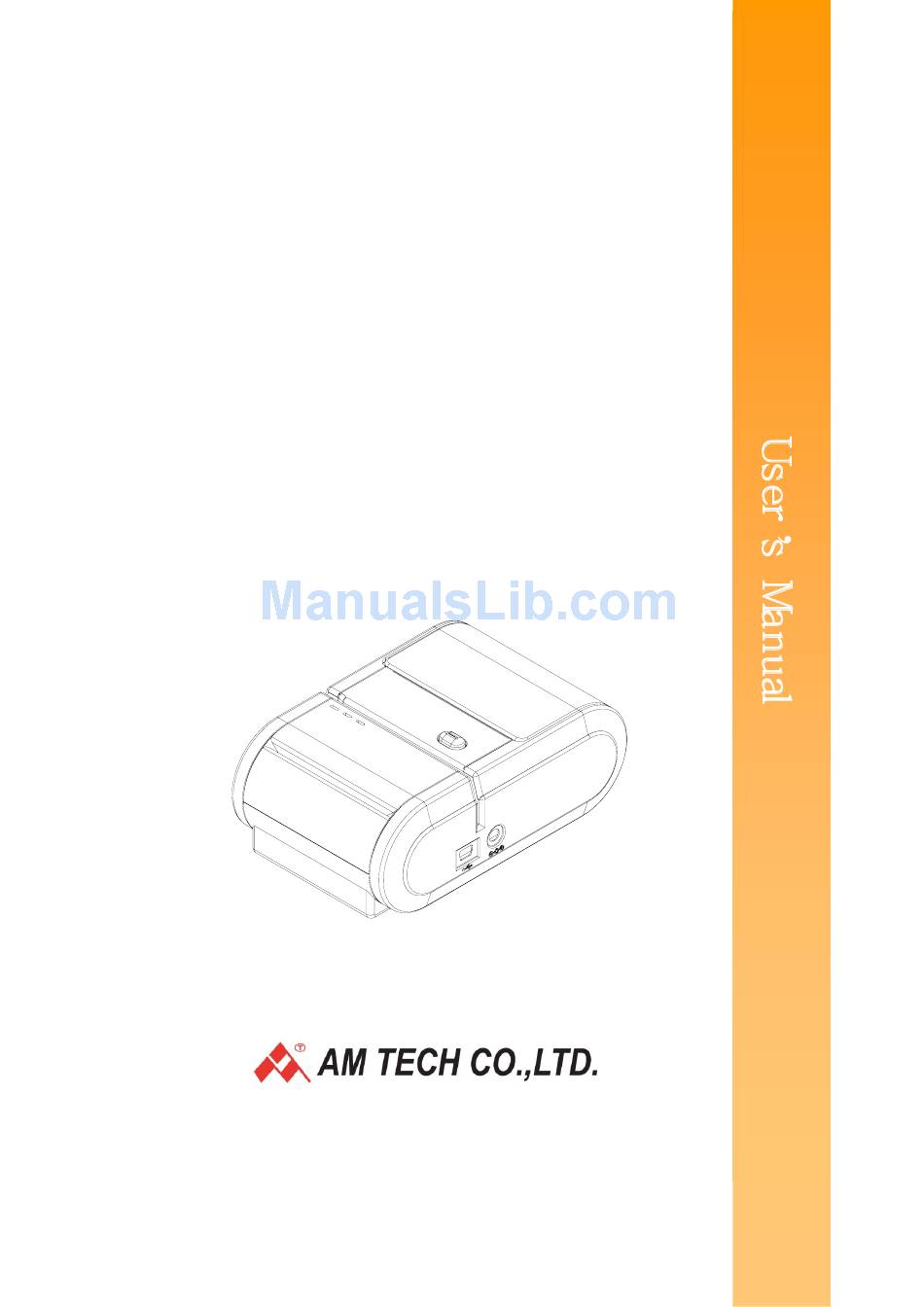

  • Page 1 ’ ’...
  • Page 2 Record of Revisions Revision Version Date DESCRIPTION 1.00 25-Jan-2008 Preliminary...

  • Page 3: Table Of Contents

    Table of Contents INTRODUCTION …………………………………………………………………………………3 Specifications & Features …………..……………………………………………….4 Technical Information………………………………………………......4 Product Features ……………………………………………………………………...5 2. Unpacking ………….……………………………………………………………………..6 3. The Name of Parts and Indicator on Control Panel ………………………………...7 4. Installation ………………………………………………………………………………….8 Paper Loading …………………………………………………………………………8 Replacing the Battery………………………………………………………………….8 Swipe Card……………………………………………………………………………..9 Smart Card ………...…………………………………………………………………..9 How to charge …………………………………………………………………………10 5.

  • Page 4: Introduction

    While guaranteeing that the information contained in it has been carefully checked, AM TECH CO., LTD. and other entities utilized in the realization of this manual bear no regarding any errors found in it or suggestions on how it could be improved are appreciated.

  • Page 5: Specifications & Features

    1. Specifications & Features 1.1 Technical Specifications Printer Method Direct Line Thermal Printing Printing width 48mm Resolution 8dots/mm(203dpi) Printing Speed 40mm/ sec Operating Voltage DC 5V Size of the Buffer 128KB Graphic(logo) Available Barcode JAN13, EAN8, UPC-A, UPC Code39, Code 128 Card Reader JIS-I,II and ISO-1/2, IC Card (EMV LEVEL 1) Interface...

  • Page 6: Product Features

    1.2 Product Features This Printer is a compact light weight portable thermal printer powered by a 7.4V 1050mA (Li-ion) battery. Smart Card & MSR This printer can be supported Magnetic Stripe Reader & Smart Card Reader as optional feature. High Resolution This printer boosts printing precise characters and clear image at high resolution of 8dots/mm.

  • Page 7: Unpacking

    2. Unpacking The illustration below shows the items should included for the standard of Mobile Pro Advance Package. If any items are damaged or missing, please, contact with your dealer for assistance. ③ ⑦ ③ ② ④ ⑤ ⑥ ①...

  • Page 8: The Name Of Parts And Indicator On Control Panel

    3. The Name of Parts and Indicator on Control Panel Paper Cover Power switch Power Interface Reset Cover button Power Charger Error ◎ Power Status Description Power light is “Green LED”. And then, Blinking the “Red Power light “On” LED” at twice Power light ”off”...

  • Page 9: Installation

    4. Installation 4.1 Paper Loading Open the paper cover and put the paper roll supplied by a distributor into the holder and,close the cover ① ② ③ CAUTION: Do not touch the print head because it can be very hot after printing continuously for a long time. 4.2 Replacing the Battery It happens to print poorly when the battery power is low.

  • Page 10: Swipe Card

    4.3 Swipe card Swipe the card at constant speed in the same direction with the arrow in the picture. When the card is read correctly, the printer sounds with “beep~” once. When the card is read incorrectly, the “Red LED” on the printer brinks at twice with sounding “beep~ beep~”...

  • Page 11: How To Charge

    4.5 How to charge Connect battery charger offered with charging jack on the printer. When charging is completed, green LED on the charger blinks The time of charging is about 70~90minutes and the battery can be charged during being used Status Description On charging...

  • Page 12: Interface

    5. Interfaces 5.1 Communication by Bluetooth The printer communicates with any equipment including a Bluetooth emitter by RF up to 10m of distance and with data transmission flow while maintaining this printer’s performance. To use the Bluetooth interface, the host computer must also have an interface that is compatible with the Bluetooth wireless communication standard.

  • Page 13: Communication By Serial Port(Cable)

    5.2 Communication via Serial Port(Cable) For communication with RS-232C, prepare dedicated serial cable. Insert the connector into the serial port. Connect the other end of the cable to the device to be connected. This Printer employs two interface connections, a 2 pin connector is used for the module electronics power supply and a four pin connector, are used for the communication with host system.

  • Page 14: Troubleshooting

    6. Troubleshooting This chapter gives solutions to some printer questions you may have. ◎ The lights on the control panel do not come on. Make sure that the power supply cables are correctly plugged into the printer, the power unit, and to the power outlet.

  • Page 15: Cleaning

    printer mechanisms, print quality, and ROM version. Running the self test 1. Make sure the printer is turned off and the printer covers are closed properly. 2. Make sure a paper roll has been installed properly 3second. 3. After turning on Power, Press immediately the power button again for The self test prints the printer settings, and then prints the following, cuts the paper and pauses.

  • Page 16: Contact To Your Retailer

    10. Contact to your retailer - Liquid has seeped inside of the printer - The printer has been exposed to rain or water. - The printer is not functioning normally despite the fact the all instructions in the user manual have been followed. - The printer has been dropped and its outer casing damaged.
