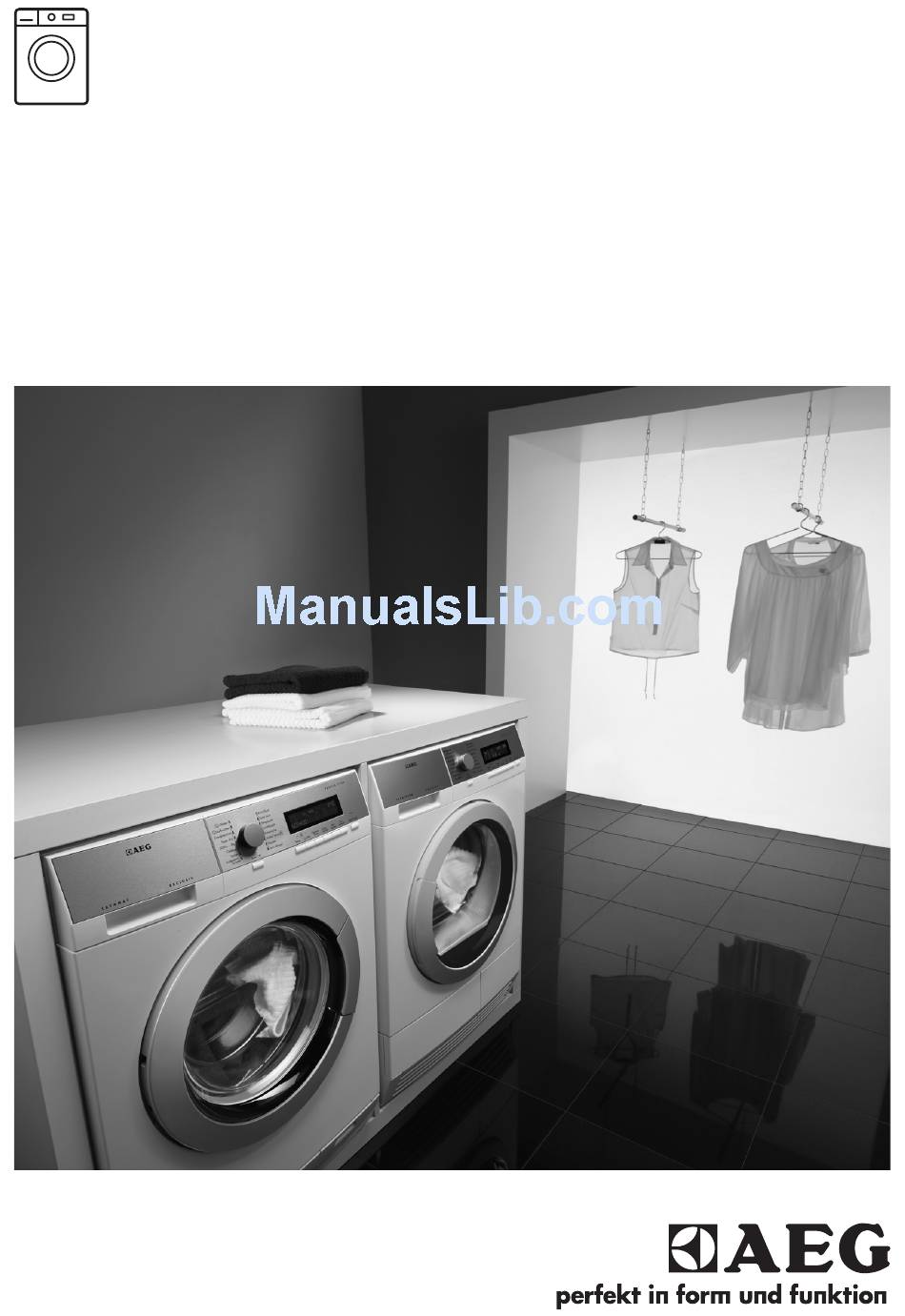

- Page 1 EN User manual L 75280 FL L 75480 FL...
-
Page 2: Table Of Contents
13. ENVIRONMENT CONCERNS ..........31 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler –... -
Page 3: Safety Information
ENGLISH 1. SAFETY INFORMATION Before the installation and use of the appliance, careful- ly read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use cau- ses injuries and damages. Always keep the instructions with the appliance for future reference. 1.1 Children and vulnerable people safety WARNING! Risk of suffocation, injury or permanent disability. -
Page 4: Water Connection
2.1 Installation • Do not pull the mains cable to discon- nect the appliance. Always pull the • Remove all the packaging and the mains plug. transit bolts. • Do not touch the mains cable or the • Keep the transit bolts. When you mains plug with wet hands. -
Page 5: Technical Information
8 bar (0,8 MPa) Cold water Water supply Maximum load Cotton 8 kg Spin speed Maximum 1200 rpm (L 75280 FL) 1400 rpm (L 75480 FL) 1) Connect the water inlet hose to a water tap with a 3/4'' thread. -
Page 6: Product Description
4. PRODUCT DESCRIPTION Worktop Water drain hose Detergent dispenser Water inlet valve Control panel Mains cable Door handle Transit bolts Rating plate Feet for the appliance level Drain pump 4.1 Accessories Feet for the appliance level Spanner To remove the transit bolts. -
Page 7: Control Panel
ENGLISH 5. CONTROL PANEL On/Off button (Marche/Arrêt) The AUTO Stand-by function automati- cally deactivates the appliance to de- Programme knob crease the energy consumption when: Display • You do not use the appliance for 5 mi- Start Pause button (Départ/Pause) nutes before you press button Delay start button (Départ Différé) –... -
Page 8: Delay Start Button
• The display symbols. Symbols Description Washing phase Rinse phases Spin phase Child lock You cannot open the appliance door when the symbol is You can open the door only when the symbol goes off. If the programme is completed but the symbol stays on: •... -
Page 9: Extra Rinse Button
ENGLISH • You activate the appliance. 5.7 Extra rinse button • You deactivate the appliance. Press button to add rinsing phases to • You press the buttons. a programme. • The programme is completed. Use this function for persons allergic to •... -
Page 10: Programmes
10 www.aeg.com 6. PROGRAMMES Programme Type of load Cycle description Functions Temperature max. weight of load Blanc/Couleurs White and coloured Wash SPIN REDUC- 95° - Cold cotton with normal Rinses TION soil. Long spin RINSE HOLD max. 8 kg STAIN... - Page 11 ENGLISH Programme Type of load Cycle description Functions Temperature max. weight of load Essorage / Vi- All fabrics Drainage of the SPIN REDUC- The maximum load water TION dange of the laundry is re- Spin phase at the NO SPIN lated to the type of maximum speed.
-
Page 12: Consumption Values
12 www.aeg.com The washing temperature of the washing phase may differ from the temperature de- clared for the selected programme. STEAM PROGRAMMES Type of load Max. load Programme Steam Rafraîchir up to 1.5 Kg This cycle removes odours from the laundry. -
Page 13: Before First Use
ENGLISH Programmes Load Energy Water Approxi- Remain- Remain- (kg) consump- con- mate tion sump- pro- mois- mois- (kWh) tion (li- gramme ture ture tre) duration (mi- L 75280 L 75480 nutes) Standard cotton programmes Standard 60 1.04 °C cotton Standard 60 0.65 °C cotton Standard 40... - Page 14 14 www.aeg.com Make sure that no laundry stays between the seal and the door. There is a risk of water leakage or damage to the laundry. 8.2 FIlling the detergent and additives The detergent compartment for the prewash phase and the soak programme.
-
Page 15: Check The Position Of The Flap
ENGLISH Check the position of the flap Pull out the detergent dispenser un- til it stops. Press the lever down to remove the dispenser. To use powder detergent, turn the flap up. To use liquid detergent, turn the flap down. With the flap in the position DOWN: –... -
Page 16: Open The Door
16 www.aeg.com When the countdown is completed, Press button to start the pro- the programme starts automatically. gramme. The indicator of button is on. Before you press button start the appliance, you can can- The drain pump can operate for... -
Page 17: Hints And Tips
ENGLISH • The door lock symbol goes off. – The door stays locked. • Press button – You must drain the water to open the to deactivate the ap- door. pliance. After five minutes from the end of the programme, the energy To drain the water: saving function automatically deacti- If necessary, decrease the spin... -
Page 18: Care And Cleaning
18 www.aeg.com • Do not mix different types of deter- use a water softener for washing ma- gents. chines. In areas where the water hard- ness is soft it is not necessary to use a • To help the environment, do not use water softener. -
Page 19: Door Seal
ENGLISH • Set the hottest cotton wash pro- After each wash, keep the door open for gramme a while to prevent mould and to let un- pleasant smells go out. • Use a correct quantity of powder de- tergent with biological properties. 10.4 Door seal Regularly examine the seal and remove all objects from the inner part. -
Page 20: Drain Pump
20 www.aeg.com Clean the dispenser recess with a brush. Put back the dispenser in the recess. 10.7 Drain pump • The display shows an alarm code be- cause of the problem with water drain. Regularly examine the drain WARNING! pump and make sure that it is Disconnect the mains plug clean. - Page 21 ENGLISH When the container is full of water, put the drainage duct back again and empty the container. Do steps 4 and 5 again and again until no more water flows out from the drain pump. Pull back the drainage duct and turn the filter to remove it.
-
Page 22: Emergency Drain
22 www.aeg.com To clean the water inlet filters: Close the water tap. Remove the water inlet hose from the water tap. Clean the filter in the inlet hose with a stiff brush. Remove the inlet hose behind the appliance. Clean the filter in the valve with a stiff brush or a towel. -
Page 23: Troubleshooting
ENGLISH 11. TROUBLESHOOTING The start of the appliance does not oc- • - The appliance does not drain cur or it stops during operation. the water. First try to find a solution to the problem • - The appliance door is open or (refer to the table). - Page 24 24 www.aeg.com Problem Possible cause Possible solution The anti-flood de- • Disconnect the appliance. vice is on. • Close the water tap. • Contact the service centre. The spin phase The spin phase is off. Set the spin programme. does not operate.
-
Page 25: Installation
ENGLISH Problem Possible cause Possible solution The appliance fills The end of the drain Make sure that the drain hose is with water and hose is too low. in the correct position. drain immediately. The washing re- The detergent you used Increase the detergent quantity sults are not satis- was not sufficient or cor-... - Page 26 26 www.aeg.com Remove the cardboard top. Remove the polystyrene packaging materials. Remove the internal film. Open the door. Remove the poly- styrene piece from the door seal and all the items from the drum. Put one of the polystyrene packag- ing elements on the floor behind the appliance.
- Page 27 ENGLISH Remove the polystyrene protection from the bottom. Pull up the appliance in vertical po- sition. Remove the power supply cable and the drain hose from the hose hold- ers. Remove the three bolts. Use the key supplied with the appliance. Pull out the plastic spacers.
-
Page 28: Positioning And Levelling
28 www.aeg.com WARNING! We recommend that you keep Remove all the packaging and the packaging and the transit the transit bolts before you install bolts for when you move the ap- the appliance. pliance. 12.3 Positioning and levelling • Install the appliance on a flat hard floor. -
Page 29: Water Drainage
ENGLISH • Connect the water inlet hose to the cold water tap with 3/4 thread. CAUTION! Make sure that there are no leaks from the couplings. Do not use an extension hose if the inlet hose is too short. Con- tact the service centre for the re- placement of the inlet hose. - Page 30 30 www.aeg.com • On the edge of a sink. • Make sure that the plastic guide can- not move when the appliance drains. Attach the guide to the water tap or the wall. • To a stand pipe with vent-hole.
-
Page 31: Environment Concerns
ENGLISH 13. ENVIRONMENT CONCERNS Recycle the materials with the appliances. Do not dispose symbol . Put the packaging in appliances marked with the symbol applicable containers to recycle it. with the household waste. Return the Help protect the environment and product to your local recycling human health and to recycle waste facility or contact your municipal... - Page 32 www.aeg.com/shop...
