Summary of Contents for Laser DVBT-ST35

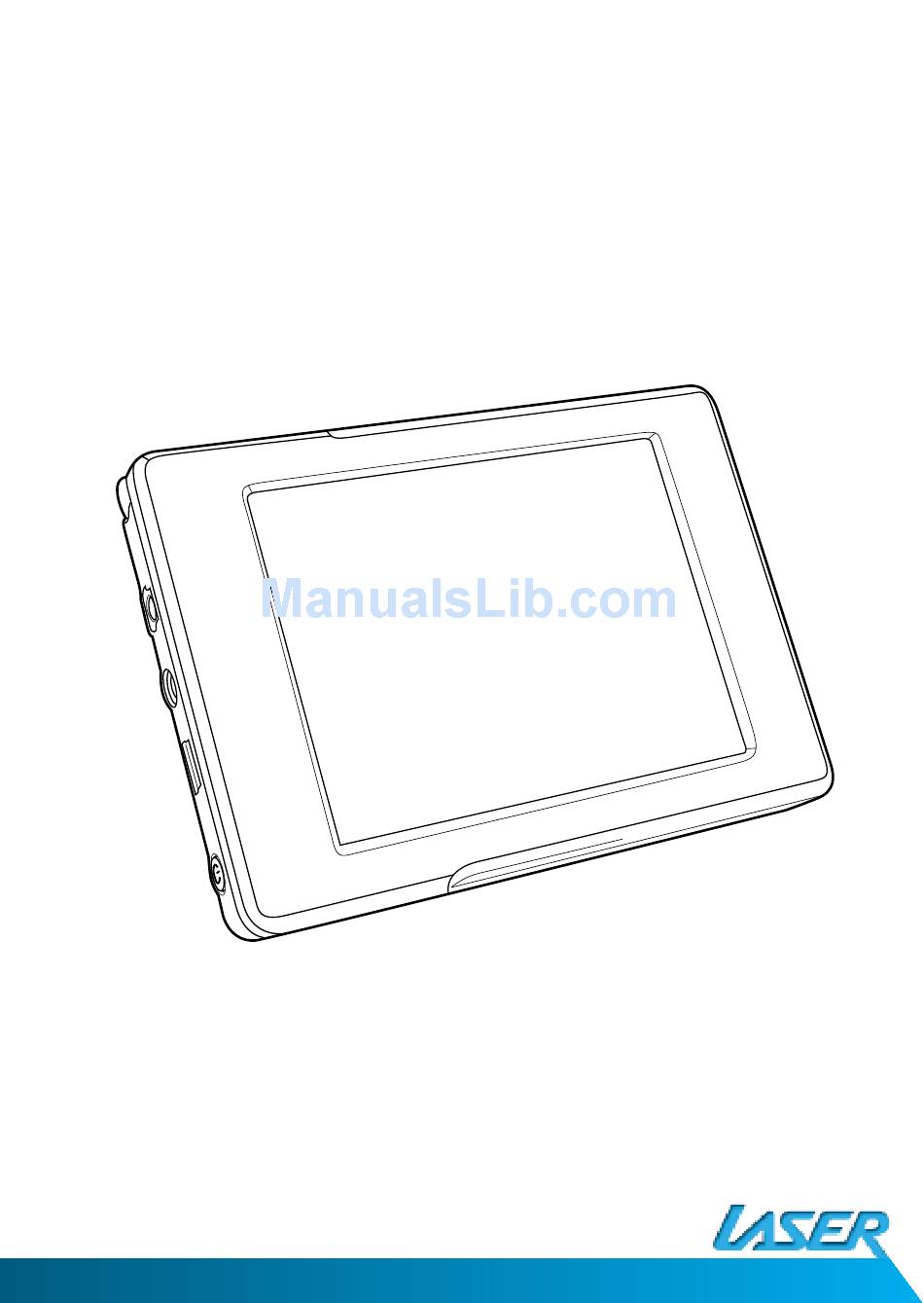

- Page 1 DVBT-ST35 User Manual Please read carefully before use...
-
Page 2: Important Safety Instructions And Precautions
DVBT-ST35 User Manual ImporTanT SafeTy InSTrucTIonS anD precauTIonS • Care should be taken when using the external antenna. Please remove the fitting carefully from the device. Do not pull at the cord to remove it. • Ensure that the ventilation holes are not blocked when using this device. Heat build up may cause this device to fail. - Page 3 • Do not use this device in rain, or near washbasins or other wet locations. Take care not to spill any food or liquid into it. If the device gets wet, unplug all cables, turn it off and allow it to dry thoroughly before turning it on again. •...
-
Page 4: Table Of Contents
DVBT-ST35 User Manual TaBLe of conTenTS Important instruction and precaution ..........2 Table of contents . -
Page 5: Accessory List And Connection Guide
acceSSory LIST 1. External Antenna 2. MCX-to-ICE cable 3. Earphone 4. AC/DC Power adaptor connecTIon GuIDe 5. Wrist strap 6. Carry pouch 7. USB Cable... -
Page 6: Knowing Your Dvt
DVBT-ST35 User Manual KnowInG your DVT 1 Built in Antenna 2 External Antenna socket 3 Ear Phone out Socket 4 USB Port (For Charging Only) 5 Power Button/Charging LED 6 LCD Touch Panel 7 Speaker and Ventilation Grill 8 Wrist Strap Eyelet... -
Page 7: Using The Main Menu
uSInG The maIn menu This is the Main Menu Screen. From here you can select DVB-T TV mode, DVB-T Radio mode, FM radio Playback or enter the system settings menu. DVB-T TV mode To enter DVB-T TV Mode DVB-T Radio mode To Enter DVB-T Radio Mode FM Radio mode To Enter FM Radio Mode... -
Page 8: Quick Start Guide For First Time Use
DVBT-ST35 User Manual QuIcK STarT GuIDe for fIrST TIme uSe Step 1: Charging the Device 1. Connect the power adaptor to the main unit, or connect the main unit to a PC using the sup- plied USB cable. 2. When the battery starts charging, the Charge LED will Glow RED. - Page 9 8. Once the Wizard is complete, the TV screen will be shown. Note: After a few seconds, the OSD will disappear automatically. Touch the screen anywhere to display the OSD again. Step 4: Quick Channel Switch. 1. Tap the screen to bring up the OSD. 2.
- Page 10 DVBT-ST35 User Manual Step 5: Setting up the DVB-T Radio If you have tuned the device to DVT-TV channels, the device will have stored all DVB-T Radio channels detected during the scan. It will not be necessary to rescan for Radio channels. If the device has not been used before, please use the following steps to tune the device to the DVB-T Radio broadcasts in your area.
-
Page 11: Setting Up The Fm Radio
SeTTInG up The fm raDIo The DVB-T Touch can be used as a FM radio receiver so you can listen to all your favourite FM radio stations that are broadcast in your area. Important Note You will need to insert the Earphones to improve FM reception. 1. -
Page 12: Touch System Menus
DVBT-ST35 User Manual The DVB-T Touch SySTem menuS This menu can be accessed when in the DVB-T TV or DVB-T Radio by tapping on the [Menu] Button and allows the user to access and set the features for both DVB-T TV and DVB-T Radio. -
Page 13: System Setting
Subtitle To select a subtitle language for the current program from (if Broadcast). Teletext To show Teletext services if available in your area. The SySTem-SeTTInG menu This menu can be accessed only form the main menu by tapping the icon. Please see below for an explanation of the functions Country/Language... -
Page 14: Changing The Settings
DVBT-ST35 User Manual chanGInG The SeTTInGS 1. Program list. (EPG) A) Program List 1) Select any channel on the list to jump into the channel by touching the channel name. 2) Press the highlighted channel to show the detail schedule of the selected channel. -
Page 15: Auto Search
2. Antenna Selection 1) Tap the desired antenna twice to change the setting 2) Tap the [X] button to exit. 3. Auto Search 1) Adjust the country setting by pressing the current highlighted country-setting 2) Select the required antenna setting by tapping the current antenna setting. -
Page 16: Program Information
DVBT-ST35 User Manual 5. Program Information 1) Tap the [X] button to exit. 6. Aspect ratio 1) Tap on the desired display format 2) Tap [X] to exit 7. Subtitle 1) Tap the desired available Subtitle language to display it. -
Page 17: Time Setting
8. Teletext 1) Tap the [ ] button to go to the next page. 2) Tap the [ ] button to go the previous page. 3) Tap the [+10] button to go to the next 10m pages. 4) Tap the [-10} button to go to the previous 10 pages. -
Page 18: Software Version
DVBT-ST35 User Manual 11. Software version 1) Tap the [X] button to exit Note: This information may be required if requested by technical support. 12. Reset Default 1) Tap the [Yes] button to reset the device to the factory settings... -
Page 19: Trouble Shooting
TrouBLe ShooTInG Q & a Most of the troubleshooting issues can be easily solved. The common cases and the respective solutions are listed in the table below. If the problem is not listed or not shown, please contact technical support. Problem Possible reason The Batteries are totally discharged. -
Page 20: Specifications
DVBT-ST35 User Manual SpecIfIcaTIonS Antenna Passive Antenna External Antenna Input Connector Type Display Panel Type Resolution Brightness Contrast Ratio View Angle Tuner Input Frequency Range RF Input Impedance Channel Bandwidth Power Input Voltage Power Consumption Battery Software Feature Multi Language...
