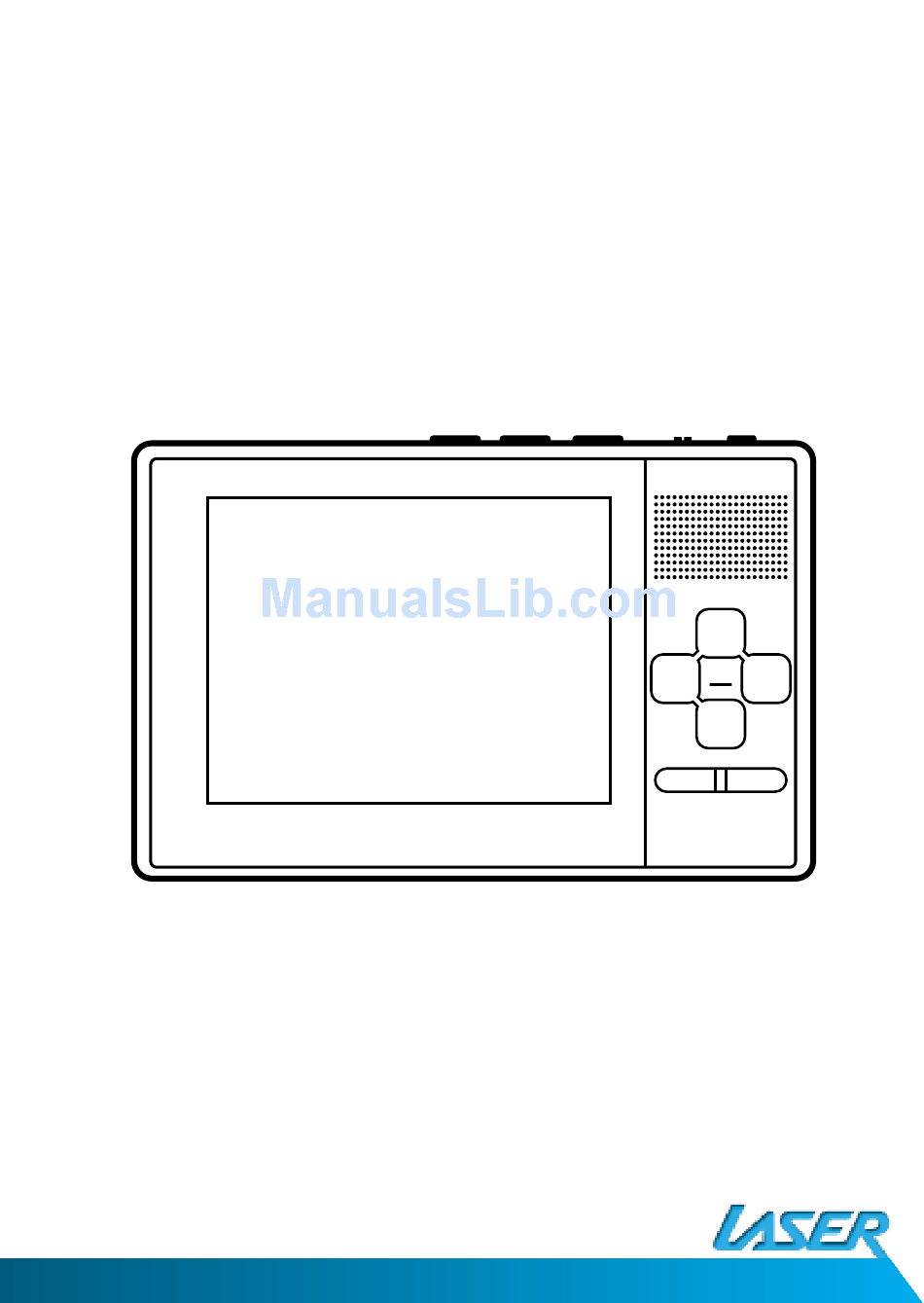

- Page 1 DVBT-MP32 User Manual Please read carefully before use...
-
Page 2: Important Safety Instructions And Precautions
DVBT-MP32 User Manual IMPorTanT SafeTy InSTrucTIonS anD PrecauTIonS • Read instruction carefully before using this product • Observe all warnings and cautions when using this product. • Retain all manuals and documentation for future referral. • Only use this product in a manner described in this manual. • Do not use this product if you are in control of a motor vehicle. • If used in a motor vehicle is should be used away from the driver to avoid distraction. • Do not use this device in extremely hot, cold, humid, dusty or sandy environments. • Do not use this device in electrical storms or other conditions if the likelihood of lightning is possible. • Do not attempt to clean this product using liquid cleaners or aerosol cleaners. Use only a damp soft cloth to clean the surface of this device. • Extreme care should be taken when using this product near any body of water such as swimming pools, kitchen sinks, baths and the like. • This device is not waterproof. • Only place the device on a stable surface and ensure that cables attached to the device can not cause the device to fall. • Only use the recommended accessories for this device. Use of incorrect accessories may cause damage and void the warranty. - Page 3 not be able to pick up all stations in all areas. For best results use in a strong signal area and ensure that the antenna has a clear unobstructed view of the sky. • Do not bend, drop, crush, puncture, incinerate, or open this device. • Avoid use in extreme temperatures. extreme temperatures. • Do not use this device in rain, or near washbasins or other wet locations. Take care not to spill any food or liquid into it. In case this device gets wet, unplug all cables, turn it off and allow it to dry thoroughly before turning it on again. • Never attempt to repair this device by yourself. It does not contain any user serviceable parts. The battery should be replaced only by authorised service providers. • Use headphones safely. Use of headphones while operating a vehicle is not recommended and is illegal in some areas. Be careful and attentive while driving. Stop using this device if you find it disruptive or distracting while driving or performing any other activity that requires your full attention. • Use only the USB drive adaptor to connect USB drives to the Device. Do not attempt to connect the device to a PC or DC power supply using this port. Connecting the DVB-T player to any other device other than described in this manual may void the warranty.
-
Page 4: Table Of Contents
DVBT-MP32 User Manual TaBLe of conTenTS Important instruction and precaution ..........2 Table of contents . -
Page 5: Accessory List And Connection Guide
acceSSory LIST 1. AC/DC Power adaptor 2. AV cord 3. External Antenna 4. MCX-to-ICE cable connecTIon GuIDe 5. Wrist strap 6. Carry pouch 7. USB Drive Adaptor... -
Page 6: Knowing Your Dvt
DVBT-MP32 User Manual KnowInG your DVT 1 SDHC/MMC Card Slot 2 Media Hot keys 3 Hold Switch 4 Power Button 5 (&15) Speaker 6 Navigation keys 7 Strap Eyelet 8 Earphone Socket 9 Audio/Video Out Socket 10 DC Power in 11 Charge Indicator LED 12 USB host Port (Adaptor supplied) 13 Battery Cover 14 Fold Out Stand 15 (&5) Speaker 16 External Antenna Socket 17 In-Built Telescopic Antenna 18 LCD Screen... -
Page 7: Basic Operations
BaSIc oPeraTIon... -
Page 8: Media Hot Keys And Using The Main Menu
DVBT-MP32 User Manual MeDIa HoT KeyS The media hot Keys are located on the top of the device. They allow you to rewind, fast forward, play, pause and go to the previous or next file when playing music of video files. Previous/Fast Rewind Function -Press the key to play the previous video/audio file -Press and hold key to fast rewind during playback. Play/Pause Function Next/Fast Forward Function -Press the key to play the next Video/Audio file. - Page 9 DVB-T TV mode. To enter DVB-T TV Mode. DVB-T Radio mode. To Enter DVB-T Radio Mode. Video File Playback mode. To enter Video file playback mode. Audio File Playback mode. To enter Audio file playback mode. Photo Viewing Mode. To enter the Photo viewing mode. Game Mode. To enter the Game menu. System Settings To enter the System setting Menu to configure the device.
-
Page 10: Quick Start For First Time Use
DVBT-MP32 User Manual QuIcK STarT GuIDe for fIrST TIMe uSe Step 1: Charging the Device 1. Connect the power adaptor to the main unit. 2. When the battery starts charging, the Charge LED will Glow RED. 3. When the battery is fully charged The LED will Glow GREEN. The Player can be remeoved from the adaptor. Step 2: Turning the Device on Press the Power button to turn on. Press again to trun the device off. Step 3: Press the [VOL + ]/[VOL - ] buttons to select the “TV” icon and then press the [OK] button... - Page 11 Step 4: Press the [OK] button to enter the scan setup menu. Step 5: Select your own OSD language, your current region and daylight savings). 1. Use the [CH + ]/[CH -] buttons to highlight the required menu item. 2. Use the [VOL +] button access the submenu if shown. 3. Use the [CH + ]/[CH -] buttons to highlight to the required menu item. 4. Press the [OK] button to select the highlighted item or press the [MENU] button to exit to the previous screen. NOTE: Time zone settings will be automatically updated once the Region setting is changed. Step 6: Perform Auto Search to find all available DVB-T TV channels. 1. Use the [CH +]/[CH -] button to highlight the Auto Search option.
-
Page 12: Using The Dvb-T Radio
DVBT-MP32 User Manual uSInG THe DVB-T raDIo 1. In the Main Menu press the [VOL +]/[VOL –] buttons to select the Radio Icon and then press the [OK] button to enter the Radio Mode. 2. Press the [CH +]/[CH -] to select the preferred radio channel. 3. The Radio service will start immediately. Note: The device can only play DVB-T radio broad- casts. These stations are found when scanning for TV broadcast To rescan for radio channels please rescan for TV channels. -
Page 13: Recording Fuction
recorDInG funcTIon 1. During the TV ort Radio mode press the button to start recording the current TV or Radio Program When the unit is recording, in the upper left screen. 2. Press the button of the [HOME] button to stop recording. 3. Recorded TV programs can be played back in Video Playback Mode. 4. Recorded Radio Programs can be played back in Music Mode. Important Notes a) An SD card, MMC card or USB drive must be fitted or connected for the recording function to work b) The Recorded program will be stored in a default folder named “PVR”. Files will be saved as*. -
Page 14: Video File Playback
DVBT-MP32 User Manual VIDeo fILe PLayBacK The Laser Multimedia DVB-T will support MPG, DAT, VOB and AVI files. (MPEG4ASP, Xvid, DivX 4.0/5.0) format video files. The selection below will explain how to play your video files stored on the SD/MMC card or USB drive. -
Page 15: Music File Playback
MuSIc fILe PLayBacK The Laser Multimedia DVB-T will support MP3 and WAV audio files. The selection below will explain how to play your audio files stored on the SD/MMC card or USB drive. 1. After selecting Music File Playback Mode from the Main Menu, the files browser screen will appear. Press the [OK] button to select the... -
Page 16: Photo Viewing Mode
DVBT-MP32 User Manual PHoTo VIewInG MoDe The Laser Multimedia DVB-T will support JPG, BMP and GIF format image video files. The selection below will explain how to display your image files stored on the SD/MMC card or USB drive. 1. After selecting Photo Viewing Mode from the Main Menu, the files browser screen will appear. Press the [OK] button to select the root folder 2. All available image files will be displayed on the screen. Use the [CH+] and the [CH-] buttons to... -
Page 17: Photo Viewing Mode - Advanced Functions
PHoTo VIewInG MoDe – aDVance funcTIonS Rotating the Picture Press the [VOL+] button to rotate the picture clockwise. Press the [VOL-] button to rotate the picture counter clockwise. Slideshow Press the (Play/Pause) button to start or stop the photo slideshow. Zoom 1. When viewing a picture, press the [OK] button to activate the zoom function. 2. Press [OK] or to zoom in. 3. Press to zoom out. 4. Use the [CH+]/[CH-]/[VOL+]/[VOL-] to scroll around the picture when zoomed in on a picture 5. Press [MENU] button to exit the zoom function. -
Page 18: System Settings
DVBT-MP32 User Manual SySTeM SeTTInGS This is the system setting menu screen. Users can adjust the Country/Language setting, the sound setup, Display, Time, and proceed to the software upgrade page. Use the [VOL+] and [VOL-] buttons to highlight the required item and press the [OK] to select. Display Settings To set up the TV System (PAL, NTCS or Auto), the Aspect ratio, adjust the brightness and switch ON/OFF the Auto backlight. 1. Press the [CH+]/[CH-] buttons to highlight the item you want adjust. 2. Press the [VOL+] button and use the [CH+]/[CH- ] to scroll up and down the options. 3. Select one by pressing the [OK] button or exit the setting by pressing the [MENU] button. 4. After adjusting, press [MENU] button to exit the “Display Settings”. - Page 19 Region and Langauges To Set up the OSD langauge and DVB-T regional settings. 1.Press the [CH+]/[CH-] buttons to highlight the item you want to adjust. 2. Press the [VOL+] button and use the [CH+]/[CH- ] to scroll up and down the options. 3. Select one by pressing the [OK] button or exit the setting by pressing the [MENU] button. 4. After adjusting, press [MENU] button to exit the “Region & language Settings” Sound Settings To select a sound efect and set up the equaliser. 1.Press the [CH+]/[CH-] buttons to highlight the item you want to adjust. 2. Press the [VOL+] button and use the [CH+]/[CH-] to scroll up and down the options. 3. Select one by pressing the [OK] button or exit the setting by pressing the [MENU] button. 4. After adjusting, press [MENU] button to exit the “Sound Set Up”...
- Page 20 DVBT-MP32 User Manual Software Version and Firmware upgrade To display the current firmware version number and upgrade 1. Insert the SD/MMC card containing the firmware file into the card slot. 2. After entering the Version/upgrade menu, press the [CH-] button until the “SW Upgrade” option is highlighted. 3. Press the [OK] button to start the upgrade process. SySTeM SeTTInGS Important Only use the firmware file recommend for this model device. The use of Firmware files not specifically for this device may render it inoperable and unserviceable and will void the warranty. This should only be completed if recommended by technical...
-
Page 21: Dvb-T Tvradio Menu
DVB-T TV/raDIo Menu After entering the DVB-T TV or Radio service, Press the [Menu] button. By navigating the different options you can have access to the Program List, Channel mangaement, the automatic serch func- tion, DVB-T audio settings, Channel info, Subtitle function, Teletext, Antenna selection and the parental lock. Program List To Display Channel information, preview the program and to access the Electronic Program Guide (EPG) 1. Select “Program List” in the TV Menu and press the [OK] button. 2. Press the [CH+]/[CH-] buttons to scroll up or down the list of channels. The highlighted chan- nel will be previewed. 3. Press the [VOL+] button to show the detail of the current program. 4. Press the [MENU] Button to exit. - Page 22 DVBT-MP32 User Manual Channel Management To rearrangand to edit the TV channel listing using the Skip, List, Lock and Delete Fucntions. 1. Select Channel Management in the TV Menu and press the [OK] button. 2. Press the [CH+]/[CH-] Buttons to scroll up or down the channel list. Press the [OK] button to enter the Editing Menu for the selected Channel. 3. Press the [Menu] button to exit.
-
Page 23: Video File Playback
VIDeo fILe PLayBacK Channel Management Skip 1. After entering the Channel Editing Menu, select the “Skip” button on the screen by pressing [VOL+]/[VOL-] buttons. 2. Press the [OK] button to activate the function. Note: This Function “temporarily” removes the channel from the program list. Us- ers can restore the channels by deactivating the function. Lock a Channel 1. After entering the Channel Editing menu, select the “Lock” button on the screen by pressing the [VOL+]/[VOL-] Buttons. 2. Press the [OK] button to activate or deactivate it. -
Page 24: Specifications
DVBT-MP32 User Manual SPecIfIcaTIonS Display 3.5” QVGA TFT LCD, 320 x 240 pixels Antenna Built-in telescopic antenna for UHF band reception Speaker Built-in speaker Video Output 3.5mm Video out socket Audio Output 3.5mm Stereo Audio out / Earphone socket Controls 9 button thumb pad + Power ON/OFF slide switch OSD Languages English, German, French, Spanish, Italian, Dutch Features DVB-T TV/Radio, FM Radio. Auto channel search, EPG, Channel preview, and Subtitles (where supported) Power supply 100/240V AC power adaptor Battery Built in 3.7V / 2000mAh rechargable polymer battery Operating time Typically up to 3hrs operation time. Dimensions 120mm X 78mm X 20mm Weight 200grams (including battery) Technical support www.LaserCo.net Media Player Video support AVI (XvID, DivX 4.0/5.0, MPG, MPG4 ASP), DAT...
