3D Orchestra
Instruction manual

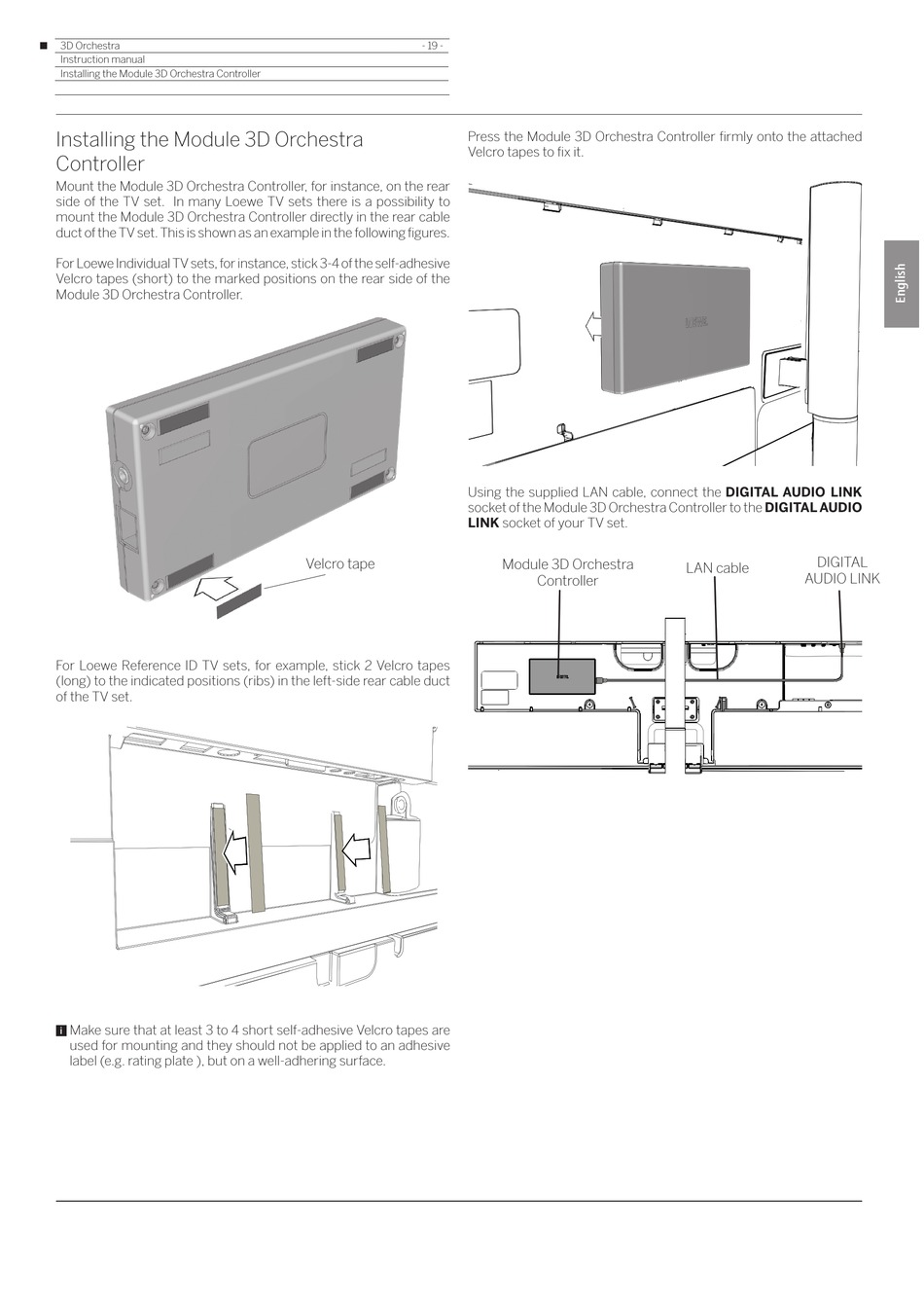

Installing the Module 3D Orchestra Controller

Installing the Module 3D Orchestra
Controller
Mount the Module 3D Orchestra Controller, for instance, on the rear
side of the TV set. In many Loewe TV sets there is a possibility to
mount the Module 3D Orchestra Controller directly in the rear cable
duct of the TV set. This is shown as an example in the following figures.
For Loewe Individual TV sets, for instance, stick 3-4 of the self-adhesive
Velcro tapes (short) to the marked positions on the rear side of the
Module 3D Orchestra Controller.
For Loewe Reference ID TV sets, for example, stick 2 Velcro tapes
(long) to the indicated positions (ribs) in the left-side rear cable duct
of the TV set.
Make sure that at least 3 to 4 short self-adhesive Velcro tapes are
used for mounting and they should not be applied to an adhesive
label (e.g. rating plate ), but on a well-adhering surface.
- 19 -
Press the Module 3D Orchestra Controller firmly onto the attached
Velcro tapes to fix it.
Using the supplied LAN cable, connect the DIGITAL AUDIO LINK
socket of the Module 3D Orchestra Controller to the DIGITAL AUDIO
LINK socket of your TV set.
Velcro tape Module 3D Orchestra
Controller
DIGITAL
LAN cable
AUDIO LINK
