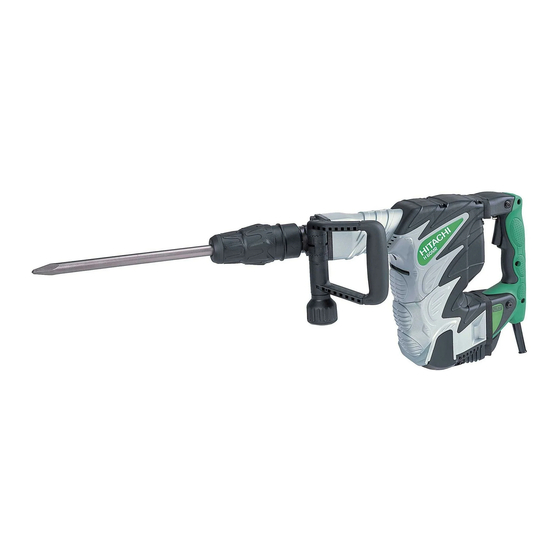

Demolition hammer
Hide thumbs Also See for H 60MR:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operation Manual & Safety Instructions, Instruction Manual
DEMOLITION HAMMER
LIST Nos. H 60MR: E483
H 60MRV: E484
SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT
H 60MR
H 60MRV
Mar. 2005
MODELS
H 60MR
H 60MRV
Hitachi
Power Tools
TECHNICAL DATA
SERVICE MANUAL
AND
H

Advertisement

Table of Contents
loading

Related Manuals for Hitachi H 60MR

Summary of Contents for Hitachi H 60MR

  • Page 1 MODELS H 60MR H 60MRV Hitachi Power Tools DEMOLITION HAMMER TECHNICAL DATA H 60MR SERVICE MANUAL H 60MRV Mar. 2005 LIST Nos. H 60MR: E483 H 60MRV: E484 SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT...
  • Page 2 REMARK: Throughout this TECHNICAL DATA AND SERVICE MANUAL, symbols are used in the place of company names and model names of our competitors. The symbols utilized here are as follows: Competitors Symbols Utilized Model Name Company Name GSH11E BOSCH MAKITA HM1202C...

  • Page 3: Table Of Contents

    8-8. Side Handle ............................12 9. REPAIR GUIDE ..........................13 9-1. Precautions and Suggestions for Disassembly and Reassembly of the Main Body ......13 10. STANDARD REPAIR TIME (UNIT) SCHEDULES ................ 21 Assembly Diagram for H 60MR Assembly Diagram for H 60MRV...

  • Page 4: Product Name

    Model H 60MRV 2. MARKETING OBJECTIVE The Models H 60MR and H 60MRV are upgraded versions of the current Models H 60MA and H 60MB which feature the use of maker B's SDS-max shank tools. The performance, durability and operability are greatly improved.

  • Page 5: Selling Point Descriptions

    Thus the housing has greater rigidity and the double-insulated motor has greater durability. The Models H 60MR and H 60MRV are heavy-duty and the service life of the carbon brushes is prolonged, minimizing disconnection of the armature, deviation of the core and grease leakage.

  • Page 6: Specifications

    4-1-8. Original design vibration-absorbing handle (Vibration-absorbing is significantly improved) Hitachi's original design vibration-absorbing handle minimizes vibration through the rolling and compression of four cylindrical rubber cushions on inclined surfaces. The spring constant factor is as low as that of the Models H 41SC, H 45MR, H 45SR, H 45FRV and H 60KA, and the cushioning structure greatly reduces vibration.

  • Page 7: Optional Accessories

    5-1. Optional Accessories 1. Demolishing work (1) Bull point (SDS-max shank type) Overall length Code No. 280 mm (11-1/32") 313471 400 mm (15-3/4") 313472 2. Grooving and chiseling work (1) Cold chisel (SDS-max shank type) Overall length Code No. 280 mm (11-1/32") 313473 400 mm (15-3/4") 313474...
  • Page 8 5. Roughing surface work (1) Bushing tool (2) Shank (SDS-max shank type) Code No. Overall length Code No. 313477 220 mm (8-21/32") 313479 6. Tamping work (1) Rammer (2) Shank (SDS-max shank type) Code No. Overall length Code No. 313478 220 mm (8-21/32") 313479 150 mm x 150 mm...

  • Page 9: Comparison With Similar Products

    The data shown in Fig. 2 are obtained in actual factory tests, and are for reference only. Demolished amount may vary in accordance with operating conditions, operator skill, etc. Demolished amount (kg/30 min.) H 60MR . H 60MRV H 60MA . H 60MB At rated voltage...

  • Page 10: Full-Load Vibration Level Comparison

    The graph shown in Fig. 4 illustrates the relationship of the noise levels at actual-load operation and no-load operation measured 1 m away from the main body. Full-load noise level No-load noise level HITACHI HITACHI HITACHI HITACHI H 60MRV H 60MA H 60MB H 60MR Fig. 4 --- 7 ---...

  • Page 11: Precautions In Sales Promotion

    7. PRECAUTIONS IN SALES PROMOTION In the interest of promoting the safest and most efficient use of the Models H 60MR and H 60MRV Demolition Hammers by all of our customers, it is very important that at the time of sale the salesperson carefully ensures that the buyer seriously recognizes the importance of the contents of the Handling Instructions, and fully understands the meaning of the precautions listed on the Caution Plate attached to each tool.

  • Page 12: O-Ring Replacement

    7-4. O-ring Replacement The O-ring (mounted on the striker and piston) are extremely important to ensure adequate sealing of the air pressure. Although the O-rings are made of special rubber to give them a long service life, they do nonetheless become worn, and should be replaced by new ones periodically depending on frequency of use of the tool.

  • Page 13: Idling-Proof Mechanism

    (damper (C)) provided between the retainer sleeve and the front cover absorbs the striking force of the tool when it pops up. Thus the durability of the Models H 60MR and H 60MRV is increased greatly because the tool and the second hammer do not strike the tool retainer directly.

  • Page 14: Sealed And Dustproof Construction

    8-5. Vibration Absorbing Construction Hitachi original, innovative units which absorb vibration are installed between the switch handle and the crank case and between the switch handle and the housing. As a result, the amount of vibration transmitted from the main body to the arms of the operator is considerably less in comparison with conventional hammers.

  • Page 15: Tool Retainer

    8-6. Tool Retainer The Models H 60MR and H 60MRV are equipped with a slide-type tool retainer. Tools can be attached and detached just by pulling grip (A). While pulling grip (A) in A direction, insert the tool in the hole of the front cap (Fig.

  • Page 16: Repair Guide

    The numbers in [Bold], <Bold> and <<Bold>> correspond to the item numbers in the Parts List and exploded assembly diagrams. ([Bold]: H 60MR and H 60MRV, <Bold>: H 60MR only, <<Bold>>: H 60MRV only) 9-1-1. Disassembly Tool retainer disassembly (See Figs. 13 and 14.) Pull Grip (A) [2] fully in the arrow direction as shown in Fig.
  • Page 17 Piston and striker disassembly Remove the Hex. Socket Hd. Bolts M5 x 12 [45] fixing the Crank Case Cover [82] and the Seal Lock Hex. Socket Hd. Bolts M5 x 16 [36] fixing the Crank Cover [37]. Remove the Crank Case Cover [82] and the Crank Cover [37] from the Crank Case [34] in order as shown in Fig.
  • Page 18 9-1-2. Reassembly Reassembly can be accomplished by following the disassembly procedures in reverse. However, special attention should be given to the following items. First gear and crank shaft reassembly Press-fit the Ball Bearing 6204DDCMPS2L [42] in the Crank Case [34] and fix the Bearing Cover [41] with the two Seal Lock Hex.
  • Page 19 Apply Hitachi Motor Grease No. 29 to Needle Bearing (A) [55], the pinion portion of the Armature Ass'y [60], the Steel Ball D6.35 [10] and the Needle Roller D8 x 20 [13]. Seal 40 g (1.4 oz) of the Hitachi Motor Grease No.
  • Page 20 9-1-5. Internal wiring Wiring diagram of the Model H 60MR (products without control circuit ass'y) (1) For products with noise suppressor Fig. 19 (2) For products without noise suppressor Fig. 20 Wiring diagram of the Model H 60MRV (products with control circuit ass'y) Internal wire Fig.
  • Page 21 Schematic diagram of the Model H 60MR (products without control circuit ass'y) Handle (A) [89] Switch (B) Switch (B) (1P Screw Type) (1P Screw Type) W/Lock [88] W/Lock [88] Pillar Terminal [95] Pillar Terminal [95] Internal Wire 235L <72> Sleeve (B) <79>...
  • Page 22 Schematic diagram of the Model H 60MRV (products with control circuit ass'y) Handle (A) [89] Switch (B) (1P Screw Type) W/Lock [88] Sleeve (B) <<75>> 14 x 16 hole Pillar Terminal [95] Stator Ass'y (B) <<63>> Internal wire of the controller Armature Ass'y [60] circuit Internal Wire <<79>>...
  • Page 23 Wiring of control circuit ass'y Put two internal wires of the Stator Ass'y (B) <<63>> and the Internal Wire <<79>> (grounding wire) through the 9 x 10 hole of Case (B) <<77>>. Insert the two internal wires of the Stator Ass'y (B) <<63>> into the two tabs at the upper portion of the Controller Circuit <<78>>...

  • Page 24: Standard Repair Time (Unit) Schedules

    10. STANDARD REPAIR TIME (UNIT) SCHEDULES Variable MODEL 60 min. Fixed Work Flow H 60MRV H 60MR Housing Ass'y Stator Ass'y Gear Cover Ass'y Switch (B) Needle Cord Bearing (A) Cord Armor Armature Ass'y Tail Cover Ball Bearing 6203DD Crank Cover...
  • Page 25 Hitachi Power Tools LIST NO. E483 ELECTRIC TOOL PARTS LIST DEMOLITION HAMMER 2004 • • Model H 60MR (E1)
  • Page 26 PARTS H 60MR ITEM CODE NO. DESCRIPTION REMARKS USED 315-529 FRONT CAP 324-025 GRIP (A) 320-803 RING 320-804 NEEDLE HOLDER 324-027 SPRING (A) 317-088 RETAINING RING D42 320-810 BALL HOLDER 324-028 GRIP (B) 320-635 BAND 959-150 STEEL BALL D6.35 (10 PCS.) 985-479 SEAL LOCK HEX.
  • Page 27 PARTS H 60MR ITEM CODE NO. REMARKS DESCRIPTION USED 995-403 OIL SEAL 995-402 DISTANCE RING (C) 317-080 FIRST GEAR 985-442 NEEDLE BEARING (A) (BK1512) 324-048 GEAR COVER ASS’Y INCLUD. 55 620-3DD BALL BEARING 6203DDCMPS2L 992-841 BEARING WASHER 996-370 360-691U ARMATURE ASS’Y 120V INCLUD.

  • Page 28: Standard Accessories

    PARTS H 60MR ITEM CODE NO. DESCRIPTION REMARKS USED 960-266 CORD CLIP 981-987Z CORD CLIP FOR SUI 953-327 CORD ARMOR D8.8 500-390Z CORD (CORD ARMOR D8.8) 500-391Z CORD (CORD ARMOR D8.8) FOR SUI 500-434Z CORD (CORD ARMOR D8.8) FOR USA, CAN...
  • Page 29 Hitachi Power Tools LIST NO. E484 ELECTRIC TOOL PARTS LIST DEMOLITION HAMMER 2004 • • Model H 60MRV (E1)
  • Page 30 PARTS H 60MRV ITEM CODE NO. DESCRIPTION REMARKS USED 315-529 FRONT CAP 324-025 GRIP (A) 320-803 RING 320-804 NEEDLE HOLDER 324-027 SPRING (A) 317-088 RETAINING RING D42 320-810 BALL HOLDER 324-028 GRIP (B) 320-635 BAND 959-150 STEEL BALL D6.35 (10 PCS.) 985-479 SEAL LOCK HEX.
  • Page 31 CONTROLLER CIRCUIT 120V 324-052 CONTROLLER CIRCUIT 230V-240V 317-113 INTERNAL WIRE 1 EXCEPT FOR SIN, USA, CAN, IND VINYL TUBE (I.D.7XT0.5X30) 2 FOR USA, CAN HITACHI LABEL 324-036 CRANK CASE COVER HITACHI LABEL 324-046 HANDLE PACKING (A) 310-124 HANDLE DAMPER 310-123...
  • Page 32 PARTS H 60MRV ITEM CODE NO. DESCRIPTION REMARKS USED 938-307 PILLAR TERMINAL 980-063 TERMINAL 930-804 TERMINAL M4.0 (10 PCS.) FOR USA, CAN 307-028 TAPPING SCREW (W/FLANGE) D4X25 (BLACK) 984-750 TAPPING SCREW (W/FLANGE) D4X16 960-266 CORD CLIP 981-987Z CORD CLIP FOR SUI 953-327 CORD ARMOR D8.8 500-390Z...
