µ-Dimension 12WA7N Owner's Manual

Dc to ac power inverters pure sine wave output

Advertisement

Quick Links

®
DC to AC Power Inverters
Pure Sine Wave Output
Owner's Manual
MODELS:
12WA7N
12WA10N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 12WA7N and is the answer not in the manual?

Questions and answers

Summary of Contents for µ-Dimension 12WA7N

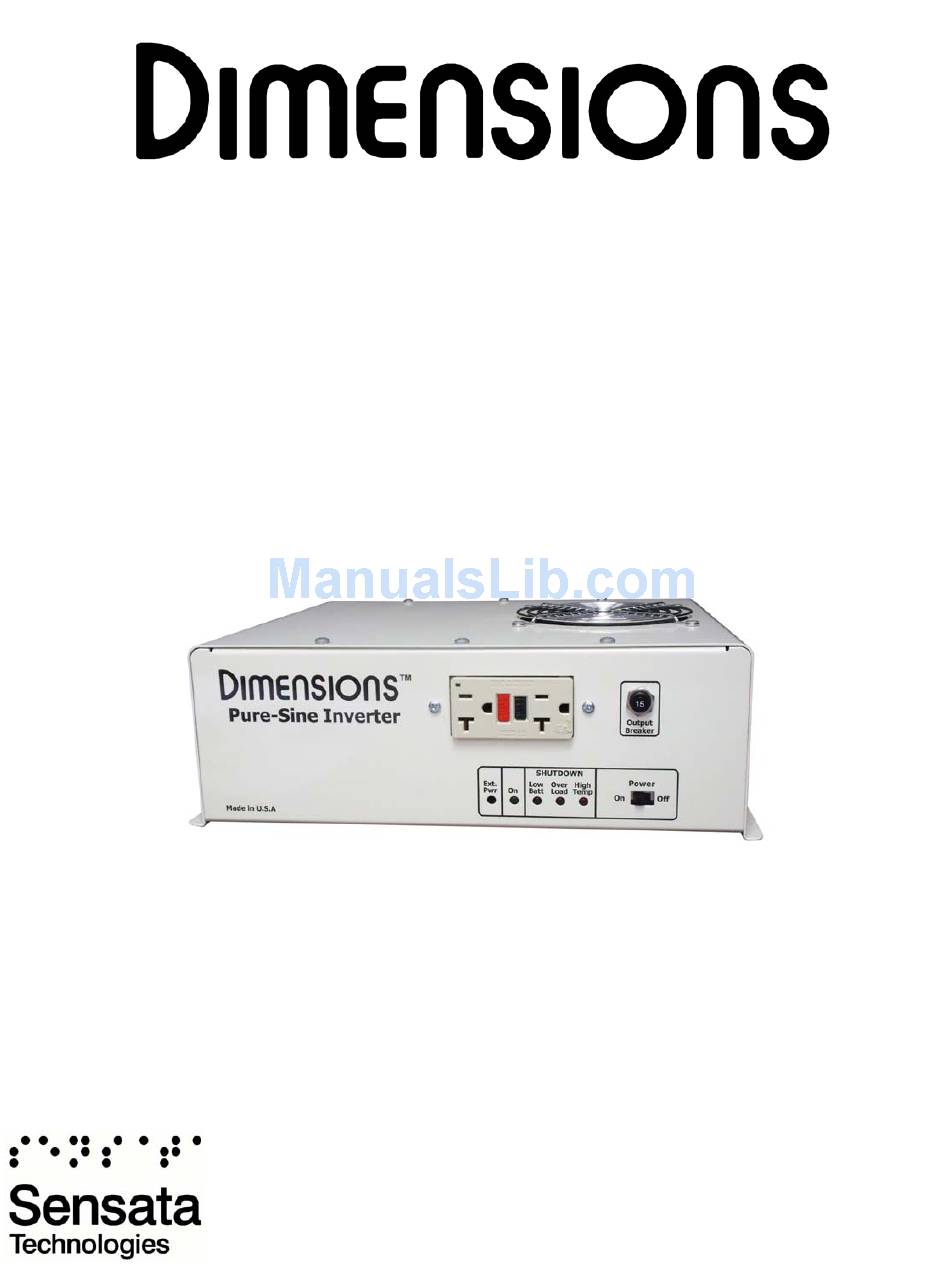

  • Page 1 ® DC to AC Power Inverters Pure Sine Wave Output Owner’s Manual MODELS: 12WA7N 12WA10N...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Section # Description Page # Section 1 Safety Instructions …………………………………….………………. Section 2 Specifications ……………………………….…….……….…………….. Section 3 Nomenclature ………………………………………..…………………… Section 4 Physical Description ………………………………………………………. Section 5 Inverter Mounting …………………….………………………………. Section 6 DC Wire Gauge & Fusing …………..……...………………………. Section 7 Remote "On/Off"...
  • Page 3: Safety Instructions

    1. SAFETY INSTRUCTIONS IMPORTANT: Read this manual before installation, it contains important safety, installation, and operating instructions. Save this manual and keep it in a safe place. Sensata Technologies is an ISO 9001:2008 Registered Company 1.1 Inverter Safety Instructions: • Warning: Power Inverters produce hazardous voltages.
  • Page 4: Technical Specifications

    2. TECHNICAL SPECIFICATIONS INVERTER MODEL 12WA7N 12WA10 Dimensions - LxWxH (Inches): 10.5 x 12 x 4 Efficiency: Up to 88% Input Current (Amps DC): Up to 70 Up to 100 Input Voltage (Volts DC): 11 to 14 Operating Temperature: -4°C to 40°C (20°F to 104°F) Output Current (Amps AC): Up to 5.8...
  • Page 5: Nomenclature

    3. NOMENCLATURE 3-Letter Suffix Designation Base Model Pure Sine Signal Output Output Wattage: 7 = 700-watt; 10 = 1000-watt Chassis Designation: WA Input Voltage: 12 = 12VDC DI = Dimensions Inverters; Other Suffixes designates private label customer Form 122175...
  • Page 6: Physical Description

    4. PHYSICAL DESCRIPTION Front View Left Rear Corner View FIGURE 1: Inverter physical description GFCI Outlets: 120VAC Output. LED Status Control Panel: Provides inverter status (See figure 2 on page 7) Output Breaker: Trips to protect the inverter’s internal circuitry from shorted AC loads or overload situations.
  • Page 7 FIGURE 2: Control Panel Description External power: The Green LED indicates that there is an external AC power line applied to the inverter AC input (early models only.) Inverter power “On”: The Green LED indicates that the inverter is operating from batteries in inverter mode.
  • Page 8: Inverter Mounting

    Crimper, Cable ties, Cutter, Drill, # 2 Phillips Screw driver, Tape measure, Wire cutters, Wire Strippers. 5.2 Mounting Recommendations: FIGURE 3: Inverter mounting footprints (dimensions are in inches) Note: The inverter mounting location should provide adequate ventilation and clearance to maintain room temperature during operation.
  • Page 9: Dc Wire Gauge & Fusing

    Full Load Inverter to Battery Estimated Cable Length in Feet Model (Amps DC) 1' to 10' 11' to 15' 16' to 20' 12WA7N 6-gauge, 150A fuse 4-gauge, 200A fuse 2-gauge, 250A fuse 12WA10N 4-gauge, 200A fuse 2-gauge, 250A fuse 1/0-gauge, 350A fuse...
  • Page 10: Dc Input Wiring Diagram

    8. DC INPUT WIRING DIAGRAM FIGURE 4: Inverter Cable Assembly and Remote On/Off Switch Assembly Kit Form 122175...
  • Page 11: Overall Wiring Diagram

    9. OVERALL WIRING DIAGRAM FIGURE 5: Typical AC & DC wiring diagram – Auxiliary battery configuration Form 122175...
  • Page 12: Theory Of Operation

    10. THEORY OF OPERATION The “Local On/Off Switch” located on front, or the “Remote On/Off Switch” if used controls the inverter. Both the Local and “Remote On/Off” switches are configured in series. To control the inverter remotely set the “Local On/Off switch” to ON. Inverter Power Mode: The green LED “On”...
  • Page 13: Troubleshooting

    11. TROUBLESHOOTING Call or e-mail customer service for free consultation during business hours (central time) at: 1-800-553-6418; 1-651-653-7000; fax: 1-888-439-3565; 1-651-653-7600 e-mail: inverterinfo@sensata.com; http://dimensions.sensata.com 1) No AC output power: 1.1) No LEDs on: • Check in-line fuse which is located within 18” from the battery’s positive post.
  • Page 14: Accessories

    Remote switch panel kit with fuse and 14ft 18-gauge cable (electrical box mount) 140004 Battery box single group 31 250018 Ventilation assembly (battery box) 42in long 13. APPENDIX Battery Specifications Chart Dimensions in inches Group Voltage Capacity Weight Number Volts DC Amp-Hour...
  • Page 15: Warranty

    FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. WARNING: ® LIMITATIONS ON USE: DIMENSIONS brand products are not intended for use in connection with Life Support Systems and for Avionic use. Sensata Technologies makes no warranty or representation in connection with their products for such uses.
  • Page 16 4467 White Bear Parkway St. Paul, MN 55110 Phone: 651-653-7000, 800-553-6418 Fax: 651-653-7600, 888-439-3565 inverterinfo@sensata.com www.dimensions.sensata.com Form # 122175 03/25/2013 © Sensata Technologies 2013 Printed in U.S.A. Form 122175...
